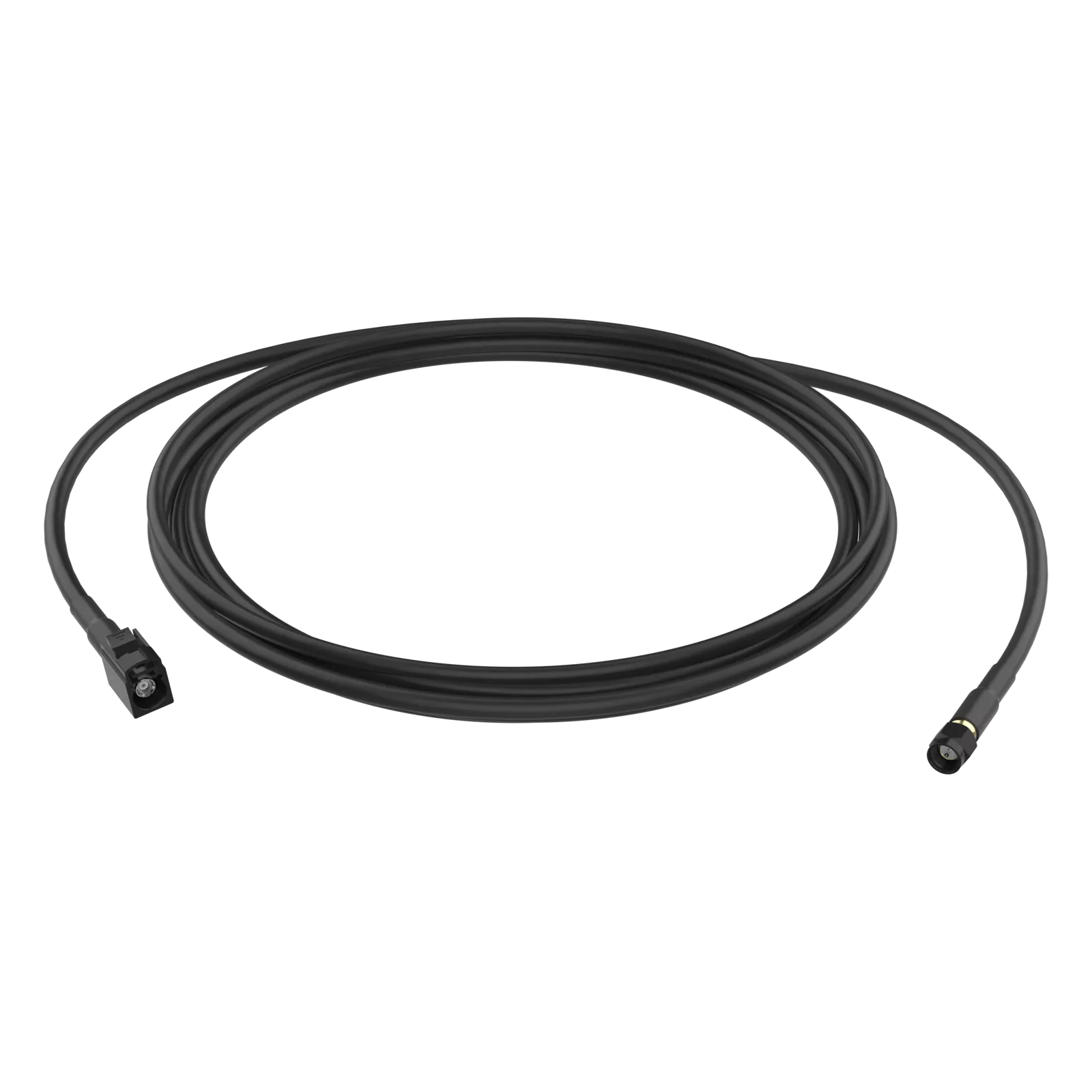

Indoor/outdoor high-speed modular camera cable for compatible AXIS F91 main units and AXIS F-series sensor units



The AXIS TU6004-E Cable is a flexible indoor/outdoor cable designed for use with compatible AXIS F Modular Camera Series main units and sensor units.

It is intended to carry high-speed data between the sensor unit and the main unit while supporting rugged installations that may require environmental protection and flexible cable routing.

The 8 m version is part number 02250-001. The same TU6004-E cable family is also available in 1 m and 30 m lengths.

Exact Part Number

Brand: Axis Communications

Product: AXIS TU6004-E Cable

Part Number: 02250-001

Cable Length: 8 m / 26 ft

Color: Black

Product Type: Modular camera interconnect cable

Key Features

• Indoor and outdoor rated
• Designed for AXIS F Modular Camera Series
• 8 m / 26 ft cable length for part number 02250-001
• 40 mm / 1.6 in bending radius
• 5 mm cable diameter
• High-bandwidth cable design
• Intended to minimize latency between sensor and main unit
• IP66 rated
• IP67 rated
• IP6K9K rated
• Compatible with AXIS F91 main units
• Compatible with AXIS F21-series sensors
• Compatible with selected F41 and F72 sensors
• Can be cut and re-crimped on the FAKRA end using AXIS TU6003 Connector Kit FAKRA

Technical Specifications

Product: AXIS TU6004-E Cable

Color: Black

Available Lengths:

• 1 m / 3 ft
• 8 m / 26 ft
• 30 m / 98 ft

Cable Diameter: 5 ±0.1 mm

Maximum Interconnected Cable Length: 30 m / 98 ft

Minimum Bend Radius: 40 mm / 1.6 in

Environmental Ratings: IP66 / IP67 / IP6K9K

Weight by Cable Length

1 m version: 40 g / 0.09 lb

8 m version: 300 g / 0.66 lb

30 m version: 1140 g / 2.51 lb

Part Number Variants

02250-001

AXIS TU6004-E Cable, 8 m

Single 8 m cable.

02251-001

AXIS TU6004-E Cable, 8 m, 4 pcs

Four-pack of 8 m cables.

02252-001

AXIS TU6004-E Cable, 30 m

Single 30 m cable.

02249-001

AXIS TU6004-E Cable, 1 m, 4 pcs

Four-pack of 1 m cables.

For procurement, the full part number matters because the cable length and pack quantity differ.

Compatible Main Units

The AXIS TU6004-E is compatible with AXIS F91-series main units including:

• AXIS F9104-B Mk II Main Unit
• AXIS F9111-R Mk II Main Unit
• AXIS F9114-B Mk II Main Unit
• AXIS F9114-R Mk II Main Unit

Compatible Sensor Units

Compatible sensor examples include:

• AXIS F2105-RE Standard Sensor
• AXIS F2107-RE Standard Sensor
• AXIS F2108 Standard Sensor
• AXIS F2115-R Varifocal Sensor
• AXIS F2135-RE Fisheye Sensor
• AXIS F2137-RE Fisheye Sensor
• AXIS F4105-LRE Dome Sensor
• AXIS F4105-SLRE Dome Sensor
• AXIS F4108 Dome Sensor
• AXIS F7225-RE Pinhole Sensor

Compatibility should be verified against the exact main unit and sensor combination before ordering.

Purpose of Use

The TU6004-E is used to connect a compatible AXIS modular sensor unit to its compatible AXIS F-series main unit.

This allows the small sensor to be mounted where video capture is required while the main processing unit can be installed elsewhere.

Typical installation requirements may include:

• Vehicle surveillance
• Machinery monitoring
• Public transport
• Industrial equipment
• Embedded camera systems
• Discreet modular surveillance
• Outdoor modular camera installations

40 mm Bend Radius

The cable has a specified 40 mm / 1.6 in bending radius.

This is important during installation because excessive bending can damage the cable or affect long-term reliability.

Routing should therefore be planned to maintain the specified bend radius.

Maximum Cable Length

The maximum length of interconnected TU6004-E cables is specified as:

30 m / 98 ft

This limit should be considered when positioning the sensor relative to the main unit.

Outdoor and Rugged Installation

The TU6004-E is intended for both indoor and outdoor environments and carries:

• IP66
• IP67
• IP6K9K

These ratings make it appropriate for compatible rugged installations when connectors and components are installed correctly.

Environmental ratings apply to the complete installation only when all required installation conditions are followed.

Re-Crimping and Custom Length

The TU6004-E can be cut and re-crimped to a required length using:

AXIS TU6003 Connector Kit FAKRA

Important limitation:

The cable can only be cut and re-crimped on the FAKRA connector end.

This can be useful for installations where the standard cable length is longer than required.

Optional Accessory

AXIS TU6003 Connector Kit FAKRA

Used where the TU6004-E needs to be cut and re-terminated at the FAKRA end.

The installer should follow Axis installation instructions and use the appropriate tools and procedures.

Things to Verify Before Ordering

Before ordering, confirm:

• Exact part number
• Required cable length
• Required quantity
• Single cable or 4-pack
• Compatible F91 main unit
• Compatible sensor unit
• Maximum required cable distance
• Installation bend radius
• Indoor or outdoor environment
• Need for custom cable length
• Whether AXIS TU6003 Connector Kit FAKRA is required

Who Should Consider the AXIS TU6004-E?

This cable may be appropriate for:

• Axis modular camera installations
• Vehicle system integrators
• Public transportation
• Machinery and industrial systems
• OEM surveillance equipment
• Security system integrators
• Projects using AXIS F91 main units and F-series sensors

Why NEOTECH® UAE

NEOTECH® recommends treating modular-camera cabling as part of the complete system design.

For AXIS F-series installations, the main unit, sensor unit, cable type, cable length and connector requirements should be checked together before ordering.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS TU6004-E 02250-001

Q: What is AXIS TU6004-E 02250-001?
A: It is the 8 m / 26 ft version of the AXIS TU6004-E indoor/outdoor modular camera cable.

Q: What is the length of 02250-001?
A: 8 m / 26 ft.

Q: What is part number 02251-001?
A: It is a 4-piece pack of 8 m AXIS TU6004-E cables.

Q: What is part number 02252-001?
A: It is the 30 m / 98 ft version.

Q: What is part number 02249-001?
A: It is a 4-piece pack of 1 m / 3 ft cables.

Q: What is the maximum interconnected cable length?
A: 30 m / 98 ft.

Q: What is the minimum bend radius?
A: 40 mm / 1.6 in.

Q: Is the TU6004-E suitable for outdoor use?
A: Yes. The supplied specification identifies IP66, IP67 and IP6K9K ratings.

Q: Can the TU6004-E be shortened?
A: Yes, it can be cut and re-crimped using the AXIS TU6003 Connector Kit FAKRA, but only on the FAKRA connector end.

Q: Is this cable compatible with AXIS F9114-R Mk II?
A: Yes, it is listed as compatible with AXIS F91 main units, including the F9114-R Mk II.

Q: Can it be used with AXIS F2135-RE and F2137-RE?
A: Yes, both are listed among compatible F21-series sensor units.
