Portcast interface for adding two-way audio and digital I/O to compatible Axis network cameras without requiring a separate IP address

The AXIS T6101 Mk II Audio and I/O Interface 02553-001 is a portcast device designed to add two-way audio and configurable digital I/O connectivity to supported Axis network cameras that do not already provide the required connections directly.

Using Axis portcast technology, the interface transfers audio and I/O communication digitally over the network cable between the camera and the interface. The connected camera retains its existing IP address, so the T6101 Mk II does not require a separate network identity for normal supported operation.

The interface can be positioned between the Ethernet switch and compatible Axis camera, allowing microphone, audio output and I/O connections to be placed closer to where they are required.

Key Features

• Adds two-way audio to compatible Axis cameras
• Adds digital input/output connectivity
• Uses Axis portcast technology
• No separate IP address required
• Audio and video can be handled through the camera workflow
• Plug-and-play installation
• PoE input and PoE output
• Two external microphone or line inputs
• One line output
• Two configurable supervised inputs/digital outputs
• 12 V DC output, maximum 50 mA
• Voice enhancement support
• Audio detection support
• External sensor and detector integration
• Compatible with supported Axis VMS environments
• Compact enclosure
• Current Axis 5-year warranty

Exact Product Identification

Brand: Axis Communications

Model: AXIS T6101 Mk II Audio and I/O Interface

Part Number: 02553-001

Product Family: AXIS T61 Audio and I/O Interface Series

Product Type: Portcast audio and I/O interface

Dimensions: 89 × 63 × 29 mm

Weight: 86 g / 0.19 lb

Housing: Polycarbonate casing with metal base

Colour: White, NCS S 1002-B

Axis currently lists 02553-001 for AR, AU, BR, CN, EU, IN, JP, KR, UK and US regions.

What Is Axis Portcast?

Portcast is Axis technology designed to add connectivity to supported cameras through an interface positioned between the camera and network switch.

Rather than operating as another independent network camera or audio endpoint, the T6101 Mk II adds its audio and I/O functionality to the supported camera connection.

This can help simplify:

• Network addressing
• VMS integration
• Audio/video association
• Physical placement of ports
• External sensor connectivity

Axis states that supported installations do not require an additional IP address or separate VMS license for the interface.

Audio Capabilities

The AXIS T6101 Mk II supports two-way audio.

Its audio connections include:

Audio Input:
2 × external microphone input or line input

Audio Output:
3.5 mm line output

Additional Audio Functions:

• Voice enhancement
• Automatic gain control
• Audio detection
• Audio recording to supported edge storage
• Audio clip playback
• Configurable bitrate

The datasheet identifies potential support for audio encoding including:

• 16-bit LPCM
• AAC-LC
• G.711 PCM
• G.726 ADPCM
• Opus

Exact audio functionality depends on the connected camera and system configuration.

Microphone Applications

Compatible external microphones may be used for applications such as:

• Audio-assisted video recording
• Audio analytics
• Sound detection
• Operator monitoring
• Voice communication

Axis currently lists compatible microphone products including:

• AXIS T8353A Microphone 3.5 mm
• AXIS T8355 Digital Microphone 3.5 mm
• AXIS TU1001-V Microphone
• AXIS TU1001-VE Microphone

Compatibility and installation requirements should be checked for the exact camera and microphone.

Speaker and Audio Output

When connected to a compatible external speaker or supported audio device, the T6101 Mk II can enable functions such as:

• Playing audio clips
• Operator-to-site communication
• Audio notification workflows
• Event-triggered audio playback

The output is a 3.5 mm line output, so speaker amplification and compatibility should be considered when selecting external audio hardware.

Digital I/O

The interface provides:

Two configurable supervised inputs/digital outputs

and:

12 V DC output — maximum load 50 mA

These connections can support compatible external devices such as:

• Door contacts
• Sensors
• Detectors
• Alarm inputs
• Relays
• Signalling equipment

Axis lists event actions including external output activation and event triggers from supervised external inputs.

PoE Connectivity

The T6101 Mk II uses Power over Ethernet.

PoE Input: RJ45 10BASE-T / 100BASE-TX

PoE Output: RJ45 10BASE-T / 100BASE-TX

PoE Standards:
IEEE 802.3af / 802.3at Type 1 Class 2 or Class 3, or IEEE 802.3at Type 2 Class 4 depending on the connected camera requirements.

The interface forwards power to the connected camera.

Axis notes that some camera combinations may require an additional compatible midspan to provide sufficient power.

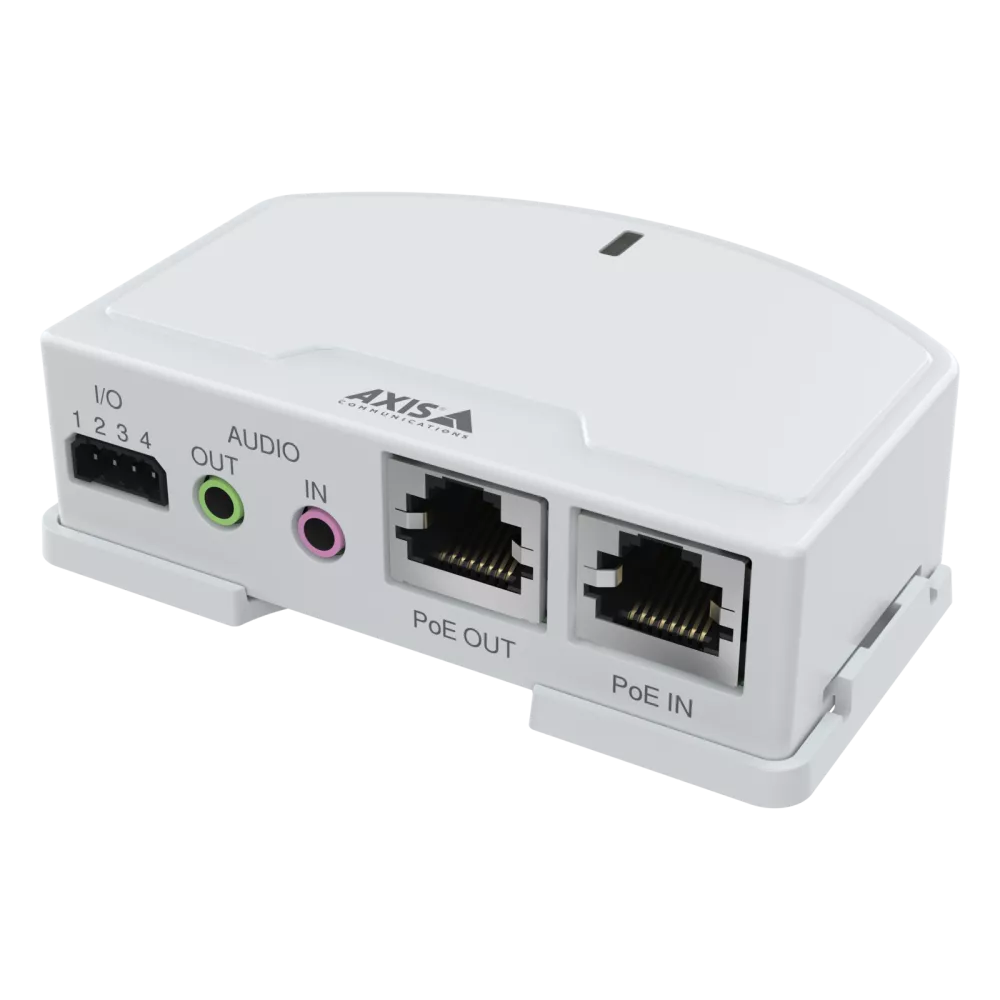

Connectors

PoE In: RJ45

PoE Out: RJ45

I/O: 4-pin 2.5 mm terminal block

Audio Input: 3.5 mm mic/line input

Audio Output: 3.5 mm line output

These ports allow audio and external I/O hardware to be located near the desired installation position rather than necessarily at the camera body itself.

Installation

Axis describes the T6101 Mk II as a plug-and-play portcast interface installed between the network switch and compatible camera.

The datasheet specifies supported placement along the connection up to 100 m / 330 ft, subject to the network and camera installation requirements.

A typical architecture is:

PoE Switch / Midspan → AXIS T6101 Mk II → Compatible Axis Camera

The microphone, line output and external I/O devices connect to the T6101 Mk II.

Compatible Cameras

Axis currently maintains a broad compatibility list covering:

• Bullet cameras
• Dome cameras
• Modular cameras
• Onboard cameras
• PTZ cameras
• Panoramic cameras
• Thermal cameras

Relevant models already within the NEOTECH® Axis ecosystem include:

• AXIS M3085-V
• AXIS M4216-LV
• AXIS P3275-LV
• AXIS M5526-E

These are particularly useful internal-link opportunities where the respective camera page exists.

However, compatibility should always be checked against the exact camera model and current Axis compatibility list before ordering.

Example Compatible Dome Cameras

Axis currently lists compatible dome models including:

• AXIS M3085-V
• AXIS M3086-V
• AXIS M3088-V
• AXIS M3125-LVE
• AXIS M3126-LVE
• AXIS M3128-LVE
• AXIS M4215-LV
• AXIS M4216-LV
• AXIS M4218-LV
• AXIS P3275-LV
• AXIS P3277-LV
• AXIS P3278-LV
• AXIS Q3546-LVE
• AXIS Q3548-LVE

Axis may add or remove compatible products over time, so this should be treated as reference information rather than a permanent compatibility guarantee.

Network and Software Integration

When used with a supported camera, the T6101 Mk II inherits integration through the camera environment.

The datasheet identifies support for:

• VAPIX
• AXIS Camera Application Platform
• AXIS Companion
• AXIS Camera Station
• Compatible Axis Application Development Partner VMS platforms

Network/security functionality is associated with the supported camera connection.

Security

With a supported camera, the datasheet identifies network security features such as:

• Password protection
• IP address filtering
• HTTPS encryption
• IEEE 802.1X network access control
• Digest authentication
• User access log
• Centralized certificate management

The T6101 Mk II itself also lists:

Signed firmware

Secure boot

The security of a surveillance installation still depends on the camera, network configuration, firmware management and access-control policies.

Operating Conditions

Operating Temperature: -40°C to 50°C

Operating Humidity: 10–85% RH, non-condensing

Storage Temperature: -40°C to 65°C

The T6101 Mk II should nevertheless be installed according to Axis environmental and mounting requirements. The interface itself should not automatically be treated as an outdoor exposed device simply because its operating temperature range is broad.

Dimensions and Weight

Dimensions: 89 × 63 × 29 mm

Weight: 86 g

Its compact size can make it practical for installation close to the camera, inside supported enclosures or within suitable technical areas.

Included Accessories

Axis lists the following with the product:

• Installation guide
• Mounting bracket
• I/O connector

Optional Accessories

Axis lists accessories including:

• T94S01P Conduit Back Box
• TP3603 Conduit Back Box
• TM3101 Pendant Wall Mount
• TP3101 Pendant Wall Mount
• Axis microphones

Accessory selection should be based on the exact installation.

Applications

The AXIS T6101 Mk II may be considered where a compatible Axis camera requires additional:

• Microphone connectivity
• Speaker output
• Two-way audio
• Audio analytics
• Door contact input
• Alarm sensor input
• External output control
• Security event integration
• Audio-assisted surveillance
• Remote communication

Typical environments may include:

• Retail
• Offices
• Commercial buildings
• Warehouses
• Reception areas
• Entrances
• Education
• Healthcare
• Industrial monitoring
• General security installations

Application suitability depends primarily on the connected camera and system architecture.

Purpose of Use

The T6101 Mk II allows organizations to extend the functionality of an existing compatible Axis camera rather than replacing the camera solely because additional audio or I/O ports are required.

For example, a supported camera with video analytics but without direct audio ports may be combined with the T6101 Mk II and an external microphone.

Similarly, external door contacts or sensors can be connected to the interface to support event-driven surveillance workflows.

AXIS T6101 Mk II vs AXIS T6112 Mk II

The two current T61 Mk II products have different purposes.

AXIS T6101 Mk II

• Two-way audio connectivity
• External microphone input
• Line output
• Digital I/O
• No separate IP address

AXIS T6112 Mk II

• Built-in microphone
• Digital I/O
• Designed where an integrated microphone is preferred

Axis describes the T6101 Mk II as the model for two-way audio and I/O, while the T6112 Mk II adds a built-in microphone and I/O.

Things to Verify Before Ordering

Before ordering AXIS T6101 Mk II 02553-001, confirm:

• Exact Axis camera model
• Current T6101 Mk II compatibility
• Whether two-way audio is required
• Required microphone type
• Required speaker/audio output
• Number and type of I/O devices
• Camera PoE power requirement
• Whether an additional midspan is required
• Cable distance
• VMS compatibility
• Event/analytics requirements
• Installation location
• Required mounting accessory
• Required quantity

Compatibility should be based on the complete camera + T6101 + PoE + audio/I/O system, not on the interface alone.

Who Should Consider the AXIS T6101 Mk II?

This product may be relevant where:

• An existing compatible Axis camera lacks the required audio ports
• Two-way audio is required
• External sensors or detectors need to be connected
• An additional IP address is undesirable
• A separate VMS license for another network endpoint is undesirable
• Audio and video should remain associated with the same camera
• Audio and I/O ports need to be positioned away from the camera body

If only a microphone is needed and a built-in microphone interface is preferred, another T61-series model may be more suitable.

Why NEOTECH® UAE

NEOTECH® focuses on compatibility and system understanding before procurement.

With an accessory such as the T6101 Mk II, the important question is not simply whether the connector fits. The camera model, PoE power budget, microphone, speaker, VMS and I/O requirement should all be checked together.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS T6101 Mk II 02553-001

Q: What is AXIS T6101 Mk II 02553-001?
A: It is a portcast audio and I/O interface designed to add two-way audio and configurable digital I/O to compatible Axis cameras.

Q: Does the AXIS T6101 Mk II require its own IP address?
A: No. Axis states that it uses the connected camera's IP address through portcast technology.

Q: Does it require another VMS license?
A: Axis states that supported installations can integrate without an additional VMS license for the interface.

Q: Does it support two-way audio?
A: Yes. Two-way audio is a primary function of the T6101 Mk II.

Q: How many audio inputs does it have?
A: Axis specifies two external microphone or line inputs.

Q: Does it provide audio output?
A: Yes. It includes a 3.5 mm line output.

Q: How many digital I/O channels are available?
A: Axis specifies two configurable supervised inputs/digital outputs.

Q: Can I connect door contacts or sensors?
A: Yes, where the device and system configuration are compatible. Axis specifically identifies external sensors and detectors as supported use cases.

Q: Does the T6101 Mk II support PoE?
A: Yes. It has PoE input and PoE output and forwards power to the connected camera.

Q: Is AXIS M3085-V compatible?
A: Axis currently lists AXIS M3085-V among compatible cameras.

Q: Is AXIS M4216-LV compatible?
A: Yes, Axis currently lists the M4216-LV among compatible products.

Q: Is AXIS P3275-LV compatible?
A: Yes. The current Axis compatibility list includes P3275-LV.

Q: What is the order number?
A: 02553-001.

Q: What warranty does Axis currently list?
A: Axis currently lists a 5-year warranty for the T6101 Mk II. Applicable supply-channel and regional terms should be confirmed at purchase.

Related Products

• AXIS M3085-V Dome Camera
• AXIS M4216-LV Dome Camera

• AXIS P3275-LV Dome Camera

• AXIS M5526-E PTZ Camera
• AXIS T6112 Mk II Audio and I/O Interface
• AXIS T8353A Microphone
• AXIS T8355 Digital Microphone
• AXIS TU1001-V Microphone
• AXIS TU1001-VE Microphone
• Axis PoE equipment

For NEOTECH®, I would internally link only products that already have genuine live pages.

Helpful Internal Links

Where corresponding NEOTECH® pages exist:

• Axis Network Cameras
• Axis Camera Accessories
• Network Surveillance Cameras
• PoE Surveillance Equipment
• Audio & I/O Accessories
• NEOTECH® Learning Center
• Shipping Policy
• Returns Policy

Delivery – UAE

Service Area: United Arab Emirates

Order Cut-Off: 14:00 GST

Handling Time: 1–2 business days

Transit Time: 3–5 business days

Estimated Delivery: 4–7 business days

Standard Shipping: Free

Please confirm availability for AXIS 02553-001 before ordering.

Contact NEOTECH® UAE

For compatibility verification, product availability or quotation:

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

When requesting compatibility assistance, please provide the exact Axis camera model, audio requirement and I/O requirement.

There is absolutely no obligation or pressure to purchase.

Disclaimer

Axis®, AXIS T6101 Mk II, portcast®, VAPIX® and associated model names and part numbers belong to their respective owners.

NEOTECH® is an independent UAE supplier and does not claim to be an authorized Axis distributor, official representative or partner unless supported by current written documentation.

Technical information has been prepared from current Axis product information and the AXIS T6101 Mk II datasheet. Camera compatibility, firmware capabilities, audio functions, PoE requirements and supported accessories may change.

Customers should verify the exact camera model, part number 02553-001, PoE budget, microphone, speaker, I/O requirements and VMS compatibility before ordering.

Last Updated: 25 August 2026  (GST, UTC+4)
