Compact 8-channel network video recorder with integrated PoE switch, surveillance-grade 2 TB hard drive and support for Axis surveillance systems

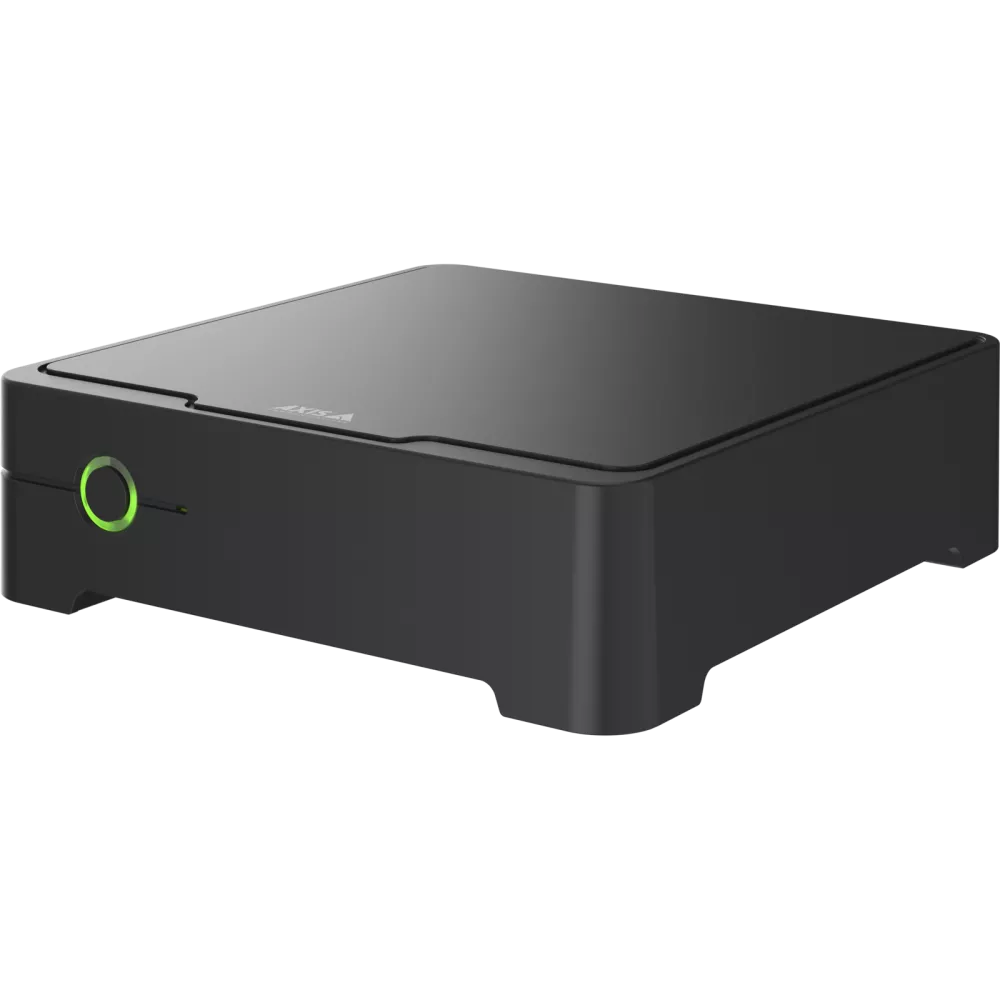

The AXIS S3008 Mk II 2 TB Recorder 02764-009 is a compact network video recorder combining storage and an integrated 8-port PoE switch for compatible Axis surveillance devices.

Designed for smaller surveillance installations, distributed sites and system expansion, the S3008 Mk II can record up to eight video channels with a validated total recording bitrate of up to 160 Mbit/s. Its integrated PoE capability can supply compatible network cameras and other Axis devices while the internal surveillance-grade hard drive provides dedicated video storage.

The S3008 Mk II can be used with AXIS Camera Station Edge as part of an accessible camera-to-cloud surveillance solution. It can also provide additional storage, network ports and PoE capacity when incorporated into an AXIS Camera Station Pro installation, subject to the different system requirements explained below.

Key Features

• Up to 8 validated video channels
• Integrated 8-port PoE switch
• Up to PoE Class 3 per port
• 124 W total PoE output power
• 2 TB surveillance-grade HDD for this variant
• Up to 160 Mbit/s validated recording bitrate
• Gigabit uplink
• Encrypted recordings
• USB connection for video export
• AXIS Secure Remote Access support
• AXIS Camera Station Edge support
• Can expand AXIS Camera Station Pro systems
• Compact standalone form factor
• Runs AXIS OS
• Axis currently provides a 5-year warranty
• Also available as separate 4 TB and 8 TB variants

Exact Product Identification

Brand: Axis Communications

Product: AXIS S3008 Mk II Recorder

Variant: 2 TB

Part Number: 02764-009

Axis Region for 02764-009: CN

Product Type: Network Video Recorder / Edge Recorder

Validated Video Channels: 8

Storage: 2 TB

HDD Bays: 1

HDD Included: 1

Operating System: AXIS OS

Please note that 02764-009 is the CN-region 2 TB ordering code in Axis's current part-number listing. Customers requiring another regional variant should verify the exact ordering code before purchase.

Storage

This particular 02764-009 variant includes:

Storage Capacity: 2 TB

Drive Type: Surveillance-grade hard drive

Total HDD Bays: 1

HDD Included: 1

Free HDD Bays: 0

RAID: Not listed as supported for this model

Axis also manufactures separate S3008 Mk II variants with 4 TB and 8 TB storage. These use different part numbers and should not be confused with the 02764-009 2 TB unit.

Recording Performance

Validated Video Channels: Up to 8

Validated Total Recording Bitrate: Up to 160 Mbit/s

The recorder is designed to support high-resolution Axis network video, with actual recording duration depending on factors including:

• Number of cameras
• Camera resolution
• Frame rate
• H.264 or H.265 compression
• Zipstream configuration
• Scene activity
• Continuous or event-based recording
• Retention-period requirement

For this reason, 2 TB should not automatically be interpreted as a particular number of recording days. Storage requirements should be calculated according to the intended camera configuration.

Integrated PoE Switch

One of the important features of the S3008 Mk II is its integrated Power over Ethernet switching capability.

PoE Device Ports: 8

Maximum Device Class: Up to PoE Class 3 per port

Total PoE Output Power: 124 W

This allows compatible Axis cameras and other supported PoE devices to receive network connectivity and power through the recorder's integrated switching infrastructure.

Before installation, the total PoE requirements of all connected devices should be calculated against the recorder's available PoE power budget.

AXIS Camera Station Edge

The AXIS S3008 Mk II can be combined with AXIS Camera Station Edge for systems with up to eight video channels.

This architecture can be suitable for applications such as:

• Small offices
• Retail locations
• Small warehouses
• Individual commercial premises
• Branch locations
• Distributed sites
• Multi-site organizations

Axis states that AXIS Camera Station Edge can integrate cameras, intercoms and audio products and provide remote access to live and recorded video.

An internet connection is required to fully leverage AXIS Camera Station Edge capabilities.

AXIS Camera Station Pro

The S3008 Mk II can also be used to expand an AXIS Camera Station Pro installation.

In this configuration, the recorder can add:

• Network ports
• PoE capacity
• Distributed recording storage
• Storage at remote locations

This can help expand a surveillance architecture while retaining centralized system management.

Important AXIS Camera Station Pro Requirement

When used in an AXIS Camera Station Pro installation, Axis states that the S3008 Mk II requires a Windows-based recording server and cannot operate as a standalone AXIS Camera Station Pro unit.

This distinction should be understood before choosing the recorder.

AXIS Camera Station Edge vs AXIS Camera Station Pro

The intended system architecture matters when selecting the S3008 Mk II.

With AXIS Camera Station Edge

The S3008 Mk II can form part of a compact surveillance solution supporting up to eight video channels.

With AXIS Camera Station Pro

The S3008 Mk II functions as an expansion resource for storage, PoE and network connectivity and requires a Windows-based recording server.

Therefore, customers should first determine which Axis video-management architecture they intend to use.

Recording Security

Axis states that recordings on the S3008 Mk II are encrypted.

The recorder also runs AXIS OS, allowing it to participate in Axis's broader device-software and cybersecurity environment.

Axis currently lists AXIS OS support for the S3008 Mk II through 31 December 2033. Software lifecycle information can change, so current Axis support information should be checked when long-term lifecycle planning is important.

Remote Access

The S3008 Mk II supports Axis Secure Remote Access, allowing supported surveillance configurations to provide remote access to footage.

Remote functionality depends on:

• System configuration
• Internet connectivity
• Video-management software
• User permissions
• Network security policies
• Axis service availability

Remote access should therefore be configured according to the organization's security requirements.

Video Export

The recorder includes a USB port for video export, providing an additional method for retrieving recorded footage when required.

Export procedures and available formats depend on the associated Axis video-management environment.

Technical Specifications

Brand: Axis Communications

Model: AXIS S3008 Mk II

Variant: 2 TB

Part Number: 02764-009

Form Factor: Standalone

Validated Video Channels: 8

Validated Recording Bitrate: Up to 160 Mbit/s

System Storage: 2 TB

Storage Type: Surveillance-grade HDD

Total HDD Bays: 1

HDD Included: 1

Free HDD Bays: 0

RAID Support: None listed

Integrated PoE Switch: Yes

PoE Ports: 8

PoE: Up to Class 3 per port

Total PoE Output Power: 124 W

Operating System: AXIS OS

Dimensions: 180 × 180 × 53 mm

2 TB Weight: Approximately 1310 g / 2.9 lb

Warranty: Axis currently lists 5 years

Physical Dimensions

Width: 180 mm

Depth: 180 mm

Height: 53 mm

The compact standalone format makes the recorder suitable for locations where a full-size rack recording appliance may not be necessary.

Weight by Storage Variant

2 TB: approximately 1310 g / 2.9 lb

4 TB: approximately 1350 g / 3.0 lb

8 TB: approximately 1450 g / 3.2 lb

The product offered on this page is specifically the 2 TB 02764-009 variant.

Available Storage Variants

Axis currently offers the S3008 Mk II in three storage capacities:

AXIS S3008 Mk II 2 TB

AXIS S3008 Mk II 4 TB

AXIS S3008 Mk II 8 TB

Each capacity has region-specific ordering codes.

Customers should choose storage based on their calculated recording requirement rather than selecting capacity solely by the number of cameras.

Applications

The AXIS S3008 Mk II may be considered for:

• IP video surveillance
• Small commercial premises
• Retail surveillance
• Office security
• Warehouse monitoring
• Reception and entrance monitoring
• Branch surveillance
• Multi-site systems
• Distributed recording
• Existing Axis system expansion
• Network camera recording
• Axis intercom integration
• Axis network audio integration

Actual suitability depends on camera quantity, recording bitrate, retention requirement, PoE consumption and VMS architecture.

Purpose of Use

The S3008 Mk II combines three important surveillance functions in one compact unit:

Network connectivity

PoE device power

Video storage

This can reduce the number of separate components required for an eight-channel Axis surveillance installation.

It can also provide a practical expansion path where an existing Axis system requires additional PoE ports and distributed storage.

Compatible Axis Ecosystem

The S3008 Mk II is designed as part of the broader Axis surveillance ecosystem.

Relevant device categories can include:

• Axis network cameras
• Axis dome cameras
• Axis bullet cameras
• Axis PTZ cameras
• Axis panoramic cameras
• Axis modular cameras
• Axis video door stations
• Axis network intercoms
• Axis network audio products

Exact device, firmware, PoE and software compatibility should be checked before system design.

Relevant NEOTECH® Axis Ecosystem

Where corresponding NEOTECH® product pages are available, useful related products include:

• AXIS M3085-V Dome Camera
• AXIS M4216-LV Dome Camera
• AXIS P3275-LV Dome Camera
• AXIS M5526-E PTZ Camera
• AXIS Q1806-LE Bullet Camera
• AXIS F9114-R Mk II Main Unit
• AXIS F2105-RE Standard Sensor
• AXIS F2135-RE Fisheye Sensor
• AXIS F2137-RE Fisheye Sensor
• AXIS T6101 Mk II Audio and I/O Interface
• AXIS T8129 PoE Extender
• AXIS TQ5001-E Wall-and-Pole Mount

These should be linked only where the products are genuinely relevant to the intended system and the corresponding NEOTECH® pages are live.

Expansion and Mounting Accessories

Axis currently identifies accessories including:

AXIS TS3001 Recorder Mount
For wall and shelf mounting.

AXIS TW8100 Rack Mount
For server-rack installation.

Axis also lists its broader recording-server and networking portfolio for larger system architectures.

When Should You Consider the S3008 Mk II?

The S3008 Mk II may be suitable when you require:

• Up to eight surveillance channels
• Local video storage
• Integrated PoE connectivity
• A compact recorder
• An Axis-focused surveillance environment
• AXIS Camera Station Edge deployment
• Distributed storage for AXIS Camera Station Pro
• Expansion of an existing Axis installation

When Might Another Recorder Be More Appropriate?

Consider a different recording platform if you require:

• More than eight validated channels from one recorder
• Larger internal storage capacity than the available S3008 Mk II configurations
• RAID storage
• Multiple internal HDD bays
• A complete standalone AXIS Camera Station Pro server
• More integrated PoE ports
• Different redundancy requirements

Axis offers larger Camera Station appliances and recording servers for installations requiring additional capacity.

Things to Verify Before Ordering

Before purchasing AXIS S3008 Mk II 2 TB 02764-009, confirm:

• Exact regional part number required
• Whether 2 TB provides sufficient retention
• Number of cameras
• Camera resolutions
• Required frame rates
• Expected recording bitrate
• Continuous versus event recording
• Required retention period
• Total PoE power consumption
• AXIS Camera Station Edge or Pro architecture
• Remote-access requirements
• Mounting location
• Required recorder mount
• Network infrastructure
• Current device compatibility

Important Part-Number Check

02764-009 = AXIS S3008 Mk II 2 TB, CN region.

For example, Axis currently lists 02764-002 for the EU-region 2 TB version.

If a UAE project specification simply states "AXIS S3008 Mk II 2 TB," the required regional SKU should therefore be confirmed before procurement.

Why NEOTECH® UAE

NEOTECH® encourages customers to verify the complete surveillance requirement rather than choosing a recorder from storage capacity alone.

For an NVR, important considerations include:

• Camera quantity
• Resolution
• Recording bitrate
• Storage retention
• PoE power requirement
• Software architecture
• Exact regional SKU

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS S3008 Mk II

Q: What is the AXIS S3008 Mk II?
A: It is a compact eight-channel Axis recorder with integrated PoE switching and surveillance-grade storage.

Q: What capacity is AXIS part number 02764-009?
A: 02764-009 is the 2 TB S3008 Mk II variant listed by Axis for the CN region.

Q: How many cameras can the S3008 Mk II record?
A: Axis validates the recorder for up to eight video channels.

Q: What is the maximum validated recording bitrate?
A: Up to 160 Mbit/s total.

Q: Does the AXIS S3008 Mk II include PoE?
A: Yes. It has an integrated PoE switch and can power up to eight compatible PoE Class 3 devices, subject to the overall PoE budget.

Q: What is the total PoE output budget?
A: Axis specifies 124 W total PoE output power.

Q: Does the recorder include a hard drive?
A: Yes. The 02764-009 version includes one 2 TB surveillance-grade HDD.

Q: Are larger capacities available?
A: Yes. Axis also offers separate 4 TB and 8 TB S3008 Mk II variants.

Q: Does it support RAID?
A: Axis does not list a supported RAID level for the S3008 Mk II. It contains one HDD bay.

Q: Can it work with AXIS Camera Station Edge?
A: Yes. Axis positions the S3008 Mk II with AXIS Camera Station Edge for systems supporting up to eight video channels.

Q: Can it be used with AXIS Camera Station Pro?
A: Yes, for expansion and distributed storage. However, in a Camera Station Pro installation it requires a Windows-based recording server and cannot operate as the standalone Pro server.

Q: Are recordings encrypted?
A: Yes. Axis states that recordings on the recorder are encrypted.

Q: Can recorded video be exported?
A: Yes. The recorder includes a USB port that Axis identifies for video export.

Q: What are its dimensions?
A: 180 × 180 × 53 mm.

Q: How much does the 2 TB model weigh?
A: Approximately 1310 g / 2.9 lb.

Q: What warranty does Axis currently provide?
A: Axis currently lists a 5-year warranty for the S3008 Mk II.

Related Products

• AXIS S3008 Mk II 4 TB Recorder
• AXIS S3008 Mk II 8 TB Recorder
• AXIS S3016 Recorder
• AXIS Camera Station S2208 Mk II
• AXIS Camera Station S2212 Mk II
• AXIS TS3001 Recorder Mount
• AXIS TW8100 Rack Mount
• Axis Network Cameras
• Axis PoE Devices

Helpful Internal Links

Where corresponding pages are live:

• Axis Network Cameras
• Axis Network Video Recorders
• Axis Camera Accessories
• Axis PoE Equipment
• Network Surveillance Solutions
• NEOTECH® Learning Center
• Shipping Policy
• Returns Policy

Delivery – UAE

Service Area: United Arab Emirates

Order Cut-Off: 14:00 GST

Handling Time: 1–2 business days

Transit Time: 3–5 business days

Estimated Delivery: 4–7 business days

Standard Shipping: Free

Availability and the exact required regional part number should be confirmed before ordering.

Contact NEOTECH® UAE

For product availability, quotation or compatibility verification:

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

For recorder selection assistance, please provide the camera models, quantities, desired recording retention period and intended Axis Camera Station environment.

There is absolutely no obligation or pressure to purchase.

Disclaimer

Axis®, AXIS S3008 Mk II, AXIS Camera Station, AXIS OS and associated product names are trademarks or product identifiers belonging to their respective owners.

NEOTECH® is an independent UAE supplier and does not claim to be an authorized Axis distributor, official representative or partner unless supported by current written documentation.

Technical information should be verified against the current manufacturer documentation before procurement or system design. Storage retention depends on camera resolution, frame rate, compression, recording mode and scene conditions. PoE suitability depends on the combined power requirements of connected devices.

Last Updated: 25 August 2026  (GST, UTC+4)
