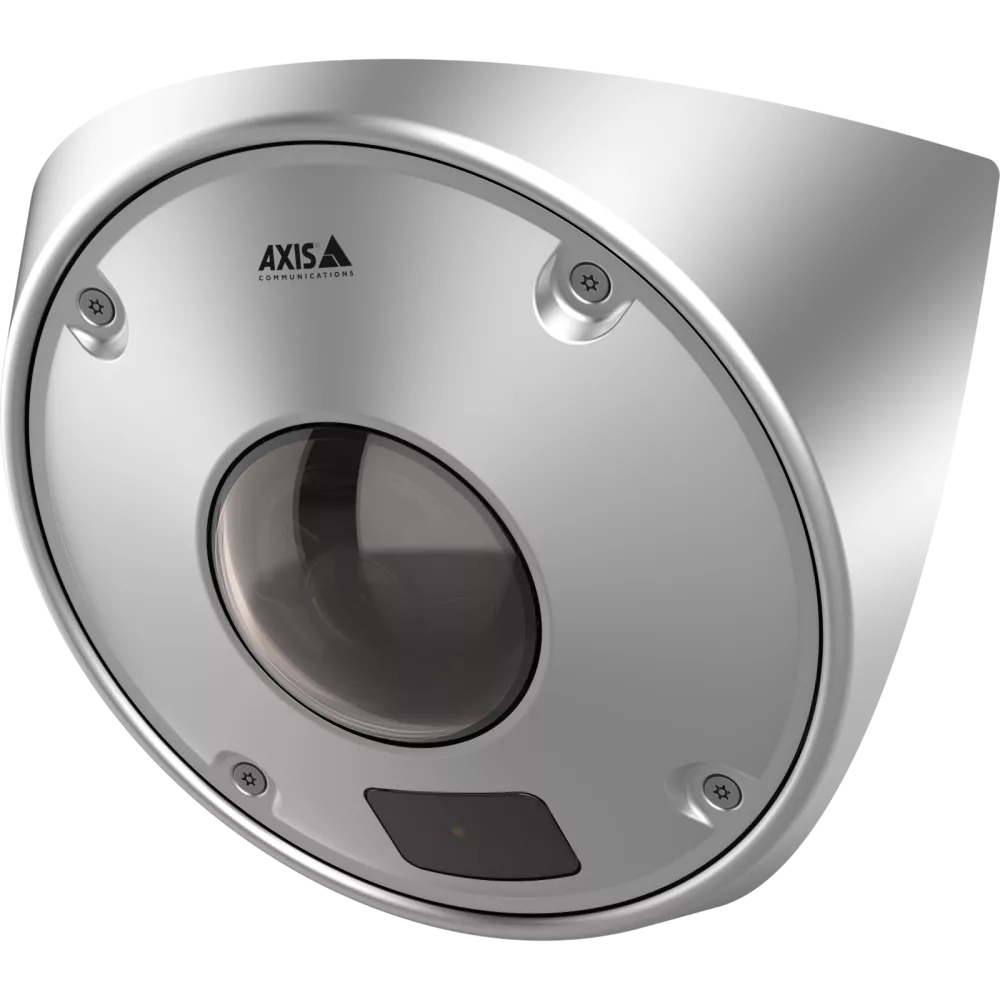

Compact anti-ligature 5 MP corner camera with integrated audio, invisible IR, AI-powered analytics and rugged construction for demanding security environments.

The AXIS Q9227-SLV Corner Camera is a 5 MP network corner camera designed for security environments where conventional camera shapes or exposed components may not be appropriate.

Its compact anti-ligature design is combined with an IK11 impact rating, integrated speaker and microphone, AI-powered video and audio analytics, invisible infrared illumination and a white LED.

The camera provides a 115° horizontal field of view and 89.2° vertical field of view through its 3.7 mm fixed lens, making it suitable for wide observation from a corner position.

The supplied product information identifies two main finishes:

AXIS Q9227-SLV White — 03139-001

AXIS Q9227-SLV Steel — 03138-001

For customers specifically sourcing 03139-001, the part number corresponds to the white AXIS Q9227-SLV variant for the listed international regions.

Key Features

• 5 MP network corner camera
• Compact anti-ligature design
• IK11-rated impact resistance
• 1/1.7-inch progressive scan RGB CMOS sensor
• 3.7 mm F2.0 fixed lens
• 115° horizontal field of view
• 89.2° vertical field of view
• Autofocus
• IR-corrected lens
• Built-in speaker
• Built-in microphone
• Two-way audio capability
• AI-powered video analytics
• AI-powered audio analytics
• 940 nm invisible IR illumination
• Integrated white LED
• IP66 rated
• IP6K9K rated
• IP69 rated
• AXIS Live Privacy Shield support
• Axis Edge Vault cybersecurity platform
• FIPS 140-3 Level 3 certified secure key storage and operations
• Designed for easier cleaning in demanding environments

Technical Specifications

Brand: Axis Communications

Model: AXIS Q9227-SLV

Part number: 03139-001

Variant: White

Camera type: Network corner camera

Resolution: 5 MP

Image sensor: 1/1.7-inch progressive scan RGB CMOS

Pixel size: 2.9 µm

Lens: 3.7 mm

Aperture: F2.0

Horizontal field of view: 115°

Vertical field of view: 89.2°

Minimum focus distance: 1 m (3.3 ft)

Focus: Autofocus

Iris: Fixed iris

IR correction: Yes

Lens mount: M14

IR illumination: 940 nm invisible IR

Additional illumination: White LED

Audio: Built-in speaker and microphone

Impact rating: IK11

Ingress protection: IP66 / IP6K9K / IP69

Cybersecurity: Axis Edge Vault

Secure key storage: FIPS 140-3 Level 3 certified

Weight: 1740 g (3.8 lb)

Dimensions: Refer to the manufacturer's dimension drawing for exact overall dimensions

Anti-Ligature Corner Design

One of the defining characteristics of the AXIS Q9227-SLV is its anti-ligature construction.

The camera is designed to fit into a corner while reducing exposed points that could be inappropriate in certain controlled or high-security environments.

This makes the physical design an important consideration alongside conventional surveillance factors such as resolution and field of view.

The camera is also IK11 rated, providing a high level of resistance to physical impact.

Anti-ligature suitability should nevertheless be assessed as part of the complete installation, including mounting, conduits, cabling, surrounding surfaces and any additional accessories.

5 MP Imaging and Wide Field of View

The Q9227-SLV uses a 1/1.7-inch progressive scan RGB CMOS sensor and provides 5 MP imaging.

Its 3.7 mm F2.0 lens provides:

Horizontal field of view: 115°

Vertical field of view: 89.2°

Minimum focus distance: 1 m (3.3 ft)

This wide field of view is particularly relevant for a corner-mounted camera because the objective may be to observe a broad portion of the room from a single mounting position.

Camera placement should still be determined according to the required scene coverage and level of identification detail.

Invisible IR and White LED

The AXIS Q9227-SLV includes 940 nm invisible infrared illumination.

This supports unobtrusive surveillance when visible illumination is undesirable and allows monitoring in total darkness.

A white LED is also integrated where additional visible illumination can help capture details in color.

The appropriate illumination mode depends on the environment and surveillance objective.

Built-In Speaker and Microphone

The camera includes a hidden integrated speaker and microphone, supporting two-way audio communication.

This can allow operators to combine visual monitoring with audio functionality without requiring a separate visible microphone and speaker installation.

Possible uses may include:

Two-way communication

Audio monitoring where legally permitted

Playing audio messages

Supporting audio-based events

Audio analytics

Local privacy, recording and monitoring requirements should always be considered before enabling audio functionality.

AI-Powered Video and Audio Analytics

The AXIS Q9227-SLV supports analytics directly at the camera.

Included Analytics

AXIS Audio Analytics
AI-based audio analytics for actionable insights.

AXIS Image Health Analytics
Helps identify conditions that may affect usable camera imagery.

AXIS Object Analytics
Provides AI-based object analytics capabilities.

AXIS Scene Metadata
Generates scene information that can support search and analysis.

AXIS Video Motion Detection
Provides video-based motion detection functionality.

Supported Analytics

AXIS Live Privacy Shield
Provides dynamic privacy masking capabilities where appropriate.

The exact analytics functionality required for a project should be verified before procurement because analytics performance depends on the scene, installation, configuration and intended detection objective.

AXIS Live Privacy Shield

For environments where privacy is particularly important, support for AXIS Live Privacy Shield can provide dynamic privacy masking.

This can be relevant where monitoring is necessary but parts of the scene or individuals may need to be obscured according to operational or privacy requirements.

Privacy masking technology does not replace an organization's responsibility to comply with applicable privacy, surveillance, workplace and data-protection requirements.

Rugged Construction

The supplied specifications identify:

IK11 impact rating

IP66

IP6K9K

IP69

These ratings make the Q9227-SLV particularly relevant where resistance to physical impact and demanding cleaning or environmental conditions form part of the installation requirement.

The complete installation should maintain the required protection level, including appropriate cable routing, mounting and accessories.

Axis Edge Vault Cybersecurity

The Q9227-SLV incorporates Axis Edge Vault, the hardware-based cybersecurity platform identified by Axis for protecting the device and sensitive information.

The supplied information also identifies FIPS 140-3 Level 3 certified secure key storage and operations.

Device-level cybersecurity should form part of a wider security strategy covering:

Network segmentation

User access

Credential management

Firmware maintenance

VMS configuration

Remote access

Recording security

Organizational cybersecurity policies

Available Variants

AXIS Q9227-SLV White

Part number: 03139-001

Regions listed: AR, AU, BR, CN, EU, JP, KR, UK, US

AXIS Q9227-SLV White – India

Part number: 03139-113

AXIS Q9227-SLV Steel

Part number: 03138-001

Regions listed: AR, AU, BR, CN, EU, JP, KR, UK, US

AXIS Q9227-SLV Steel – India

Part number: 03138-113

Customers should order according to the required finish, regional version and exact Axis part number rather than relying only on the Q9227-SLV model name.

Applications

The physical and functional characteristics of the Q9227-SLV may make it suitable for controlled environments requiring robust corner-mounted surveillance, such as:

High-security facilities

Controlled-access environments

Secure rooms

Correctional or custodial environments

Healthcare security environments

Behavioral care facilities

Interview or observation rooms

Public-sector facilities

Other locations requiring robust anti-ligature camera construction

Suitability for any specific regulated or sensitive environment should be determined by the responsible system designer or facility operator.

Purpose of Use

The AXIS Q9227-SLV is intended for environments requiring a combination of:

5 MP video surveillance

Wide corner coverage

Anti-ligature physical design

High impact resistance

Integrated audio

Low-visibility nighttime monitoring

Video and audio analytics

Privacy functionality

Rugged construction

Its specialized design means it should be selected based on the actual security and environmental requirement rather than resolution alone.

Compatible Accessories

The supplied information identifies the following related mounting accessories:

AXIS ACI Conduit Adapter 1/2″–3/4″ NPS

AXIS ACI Conduit Adapter 3/4″ NPS

AXIS TQ9602 Conduit Top Box — vandal-resistant corner mounting accessory for corner cameras

Portcast Device

AXIS D6210 Air Quality Sensor — can add indoor air-quality monitoring functionality to compatible Axis devices.

Exact compatibility and installation requirements should be verified for the intended configuration.

Things to Verify Before Ordering

Confirm:

Exact model: AXIS Q9227-SLV

Exact part number: 03139-001 or another required regional/finish variant

White or steel finish

Required corner location

Mounting surface

Anti-ligature requirements

Required field of view

Viewing distance

Lighting conditions

IR requirements

White-light requirements

Audio requirements

Local rules governing audio monitoring or recording

Required analytics

Privacy requirements

Network infrastructure

Power requirements

VMS compatibility

Recording requirements

Cybersecurity requirements

Required conduit or mounting accessories

Environmental and cleaning requirements

Who Should Consider the AXIS Q9227-SLV?

This camera may be considered where a conventional dome or box camera does not appropriately address the physical installation environment.

It is particularly relevant where the project calls for a combination of corner installation, anti-ligature design, high impact resistance, integrated audio, 5 MP video and intelligent analytics.

For ordinary commercial surveillance where these specialized physical characteristics are unnecessary, another Axis camera family may provide a simpler solution.

Why NEOTECH® UAE?

NEOTECH® encourages customers to select surveillance equipment according to the actual environment and security objective, rather than selecting a camera only from resolution or feature count.

With a specialized product such as the Q9227-SLV, particular attention should be given to the anti-ligature requirement, mounting location, field of view, audio policies, lighting, privacy, analytics and integration with the overall surveillance system.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the required viewing distance, field of view, lighting, analytics and system compatibility before ordering.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates.

Stock, exact Axis part number, regional variant and required accessories should be confirmed before ordering.

FAQ - AXIS Q9227-SLV

Q: What is the resolution of AXIS Q9227-SLV?
A: It is a 5 MP network corner camera.

Q: What is AXIS Q9227-SLV 03139-001?
A: Based on the supplied Axis product information, 03139-001 identifies the white AXIS Q9227-SLV variant for the listed international regions.

Q: Is AXIS Q9227-SLV an anti-ligature camera?
A: Yes. Axis describes the camera as having a compact ligature-resistant or anti-ligature design.

Q: What is the impact rating?
A: The Q9227-SLV is identified as IK11 rated.

Q: Does AXIS Q9227-SLV have a microphone?
A: Yes. It includes a built-in microphone and speaker for audio functionality and two-way communication.

Q: Does the camera work in total darkness?
A: The supplied product information identifies integrated 940 nm invisible IR illumination for surveillance in total darkness. Actual coverage and image results depend on the installation environment.

Q: Does it include visible illumination?
A: Yes. A white LED is also provided for situations where visible illumination and color detail are required.

Q: What is the field of view?
A: The 3.7 mm lens provides a 115° horizontal and 89.2° vertical field of view according to the supplied specifications.

Q: Does AXIS Q9227-SLV support AI analytics?
A: Yes. The supplied information identifies AI-powered audio and video analytics, including AXIS Audio Analytics and AXIS Object Analytics.

Q: Is AXIS Live Privacy Shield supported?
A: Yes. It is identified as a supported analytics application.

Q: What is the difference between 03139-001 and 03138-001?
A: The supplied information identifies 03139-001 as the white variant and 03138-001 as the steel variant for the listed international regions.
