AI-Based Multidirectional Network Camera with Four 5 MP Sensors, 360° Overview, Lightfinder 2.0, Forensic WDR and AXIS Q60 PTZ Integration

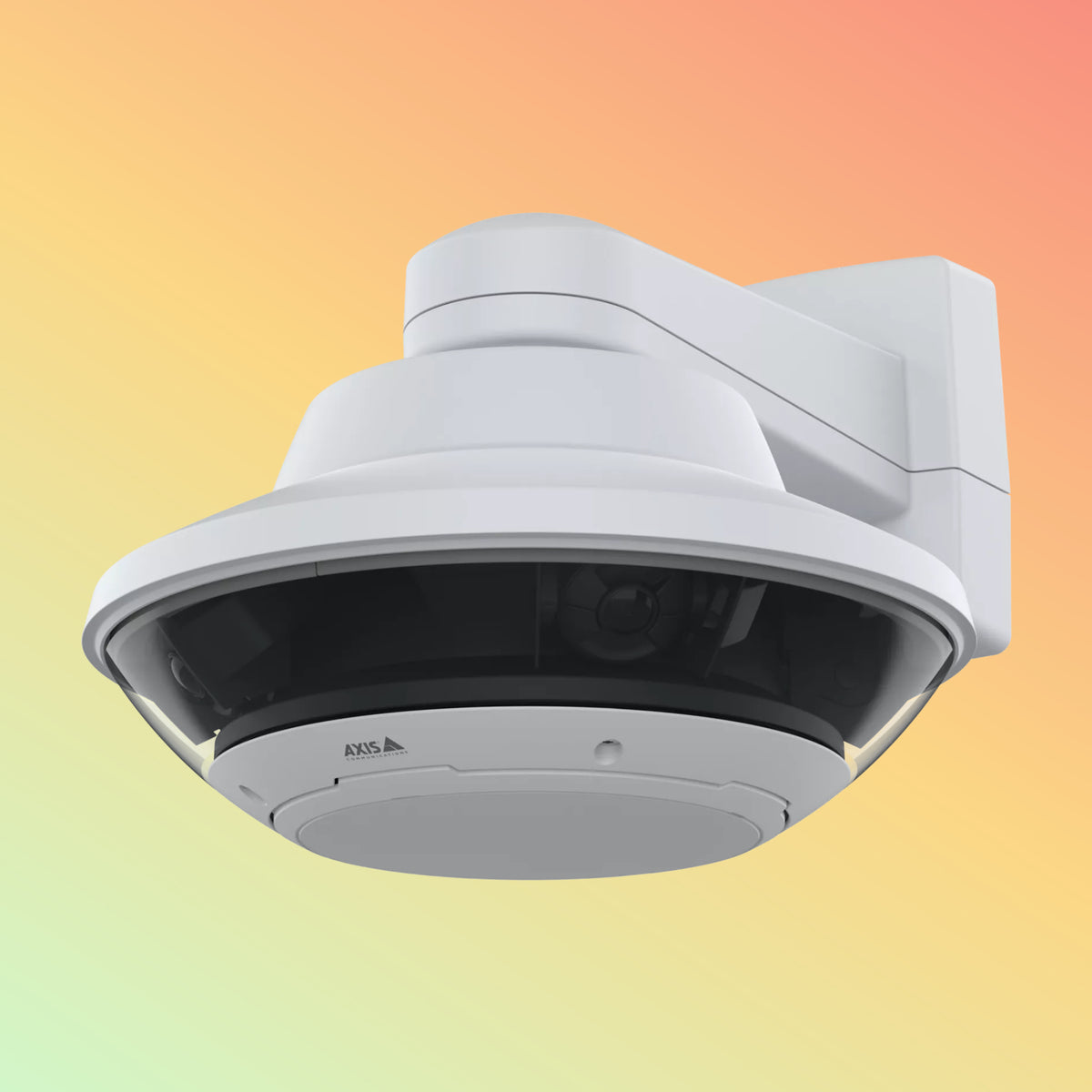

The AXIS Q6020-E Panoramic Camera is a multidirectional network camera designed to provide a complete 360° overview using four 5 MP image sensors.

It is particularly suited to surveillance applications where operators need broad situational awareness across large areas while retaining detailed views from multiple directions.

The Q6020-E is designed for operation with compatible AXIS Q60 Series PTZ cameras, allowing an installation to combine panoramic overview with PTZ-based investigation of specific areas.

Built-in deep learning processing capabilities support edge-based analytics, while Axis Lightfinder 2.0, Forensic WDR and Zipstream support image quality and efficient video transmission.

Key Features

• Four 5 MP image sensors
• 360° panoramic overview
• 4 × 1/2-inch progressive scan RGB CMOS sensors
• 3.7 mm fixed lenses
• F2.0 aperture
• 108.4° horizontal field of view per sensor
• 84° vertical field of view
• Autofocus
• Automatic IR-cut filter
• Deep Learning Processing Unit (DLPU)
• Axis Lightfinder 2.0
• Axis Forensic WDR
• Axis Zipstream technology
• H.264 and H.265 video compression
• Axis Edge Vault cybersecurity platform
• Designed for integration with compatible AXIS Q60 PTZ cameras
• Support for multiple configurable video streams

Technical Specifications

Brand: AXIS Communications

Model: AXIS Q6020-E

Product Type: Panoramic / Multidirectional Network Camera

Image Sensors: 4 × 1/2" progressive scan RGB CMOS

Pixel Size: 2.9 µm

Resolution: 4 × 2592 × 1944 maximum/default sensor resolution

Lens: 3.7 mm, F2.0

Lens Mount: M14

Iris: Fixed

Horizontal Field of View: 360° overall, 108.4° per sensor

Vertical Field of View: 84°

Minimum Focus Distance: 1.0 m (3.3 ft)

Focus: Autofocus

Day/Night: Automatic IR-cut filter

Minimum Illumination — Color: 0.06 lux at 50 IRE, F2.0

Minimum Illumination — B/W: 0.03 lux at 50 IRE, F2.0

Shutter Speed: 1/66500 s to 2 s

Camera Adjustment: Pan ±180°, tilt -40° to +75°, rotation ±95°

Processor: ARTPEC-8 × 2

Memory: 8 GB RAM, 8 GB Flash

AI Processing: Deep Learning Processing Unit (DLPU)

Video Compression: H.264, H.265 and Motion JPEG

Frame Rate: Up to 30 fps in supported resolutions

Video Streaming: Up to 20 unique and configurable video streams

WDR: Forensic WDR, up to 120 dB depending on scene

Image Processing: Lightfinder 2.0, Forensic WDR and Axis Zipstream

Noise Reduction: Spatial 2D and temporal 3D noise reduction

Weight: Approximately 4.7 kg (10.4 lb)

360° Panoramic Coverage

The AXIS Q6020-E uses four separate 5 MP sensors to provide a 360-degree overview.

Each sensor provides a horizontal field of view of approximately 108.4°, helping cover large areas from a single camera position.

This configuration can be useful where maintaining awareness of activity in several directions is more important than relying on a conventional single-view camera.

Image Quality in Challenging Lighting

The Q6020-E incorporates several Axis imaging technologies.

Lightfinder 2.0 is designed to improve color reproduction and image usability in low-light conditions.

Forensic WDR helps manage scenes containing both bright and dark areas.

The camera also supports spatial and temporal noise reduction to help manage image noise under challenging lighting conditions.

Actual image performance will depend on installation position, scene lighting, configuration and environmental conditions.

AI and Edge Analytics

The AXIS Q6020-E includes a Deep Learning Processing Unit for running supported analytics at the edge.

Edge processing can allow compatible analytics to process information directly within the camera rather than relying entirely on an external server.

The exact analytics functionality available should be verified against the current Axis software, firmware and application requirements before deployment.

AXIS Q60 PTZ Camera Integration

One of the distinguishing applications of the Q6020-E is its ability to operate together with compatible AXIS Q60 Series PTZ cameras.

This arrangement can provide two complementary surveillance perspectives:

Panoramic camera: continuous wide-area situational overview.

PTZ camera: detailed examination of selected areas or events.

Axis provides autofocus and auto-alignment functionality intended to simplify alignment between the panoramic camera and supported PTZ configuration.

Compatibility should be confirmed for the specific Q60 PTZ model before purchase or installation.

Video Compression and Storage Efficiency

The camera supports:

• H.264
• H.265
• Motion JPEG
• Axis Zipstream
• Configurable frame rates
• Configurable bandwidth
• VBR
• ABR
• MBR
• Low-latency mode

Axis Zipstream is designed to reduce bandwidth and storage requirements while retaining important surveillance image information.

Actual storage requirements depend on resolution, frame rate, compression settings, scene activity and retention period.

Applications

The AXIS Q6020-E may be considered for surveillance environments requiring broad visual coverage, including:

• Airports and transportation facilities
• Warehouses and logistics centres
• Industrial facilities
• Large commercial properties
• Public areas
• Shopping and retail environments
• Infrastructure sites
• Building entrances and surrounding areas
• Campus environments
• Large indoor or outdoor surveillance areas

Suitability should always be assessed according to the site's coverage, lighting, mounting, analytics and recording requirements.

Purpose of Use

The primary purpose of the AXIS Q6020-E is to provide wide-area 360° network video surveillance while supporting integration with compatible PTZ cameras for closer inspection.

It can be useful where a conventional single-direction camera would provide insufficient situational awareness.

Things to Verify Before Ordering

Before selecting the AXIS Q6020-E, confirm:

• Required surveillance coverage
• Mounting position and height
• Compatible AXIS Q60 PTZ model if PTZ integration is required
• Network infrastructure
• PoE and power requirements
• Required recording resolution
• Video retention requirements
• VMS compatibility
• Required analytics
• Environmental conditions
• Mounting accessories
• Edge-storage requirements
• Required cybersecurity and network policies

For project applications, compatibility should be established before procurement.

Compatible Accessories

Depending on installation requirements, compatible Axis accessories may include:

• AXIS Q60 Series PTZ cameras
• Axis network switches
• Axis PoE equipment
• Axis surveillance microSD cards
• Axis mounting accessories
• Axis joysticks and control boards
• Axis network cable accessories
• Compatible Axis video management components

Accessory compatibility varies by product and installation. Verify the exact Axis part number before ordering.

Who Should Consider the AXIS Q6020-E?

The Q6020-E may be appropriate for organizations requiring:

• 360° visual coverage
• Multiple high-resolution viewing directions
• Centralized panoramic surveillance
• Edge-based analytics
• Integration with compatible Axis PTZ cameras
• H.264/H.265 network video
• Wide-area situational awareness

Organizations requiring only a conventional single viewing direction may be better served by another camera configuration.

Why NEOTECH® UAE

NEOTECH® provides product information intended to help UAE customers understand specifications and compatibility before making a purchasing decision.

Our approach is simple:

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

We encourage customers to verify the required model, part number, accessories, network environment and application requirements before ordering.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ – AXIS Q6020-E

Q: What is the AXIS Q6020-E?
A: It is a multidirectional panoramic network camera using four 5 MP sensors to provide 360° surveillance coverage.

Q: How many image sensors does the AXIS Q6020-E have?
A: It uses four 1/2-inch progressive scan RGB CMOS image sensors.

Q: What is the resolution of each sensor?
A: The camera supports up to 2592 × 1944 resolution per sensor.

Q: Does the AXIS Q6020-E provide 360-degree coverage?
A: Yes. Its four-sensor arrangement is designed to provide a complete 360° overview.

Q: What lens does the AXIS Q6020-E use?
A: It uses 3.7 mm F2.0 lenses with an M14 mount and fixed iris.

Q: What is the horizontal field of view?
A: Overall coverage is 360°, with approximately 108.4° horizontal field of view for each sensor.

Q: Does it support low-light surveillance?
A: Yes. It incorporates Axis Lightfinder 2.0 and supports day/night operation with an automatic IR-cut filter.

Q: Does the Q6020-E support WDR?
A: Yes. It supports Axis Forensic WDR, specified up to 120 dB depending on the scene.

Q: Does it support H.265?
A: Yes. The camera supports H.264, H.265 and Motion JPEG video compression.

Q: Does the camera include AI processing capability?
A: Yes. It incorporates a Deep Learning Processing Unit for supported edge-based analytics.

Q: Can the AXIS Q6020-E work with an AXIS Q60 PTZ camera?
A: Yes. The Q6020-E is designed for operation with compatible AXIS Q60 Series PTZ cameras. Exact model compatibility should be confirmed before ordering.

Q: Is the AXIS Q6020-E suitable for every surveillance project?
A: No. Camera selection should depend on coverage, lighting, mounting, network, analytics, recording and integration requirements.
