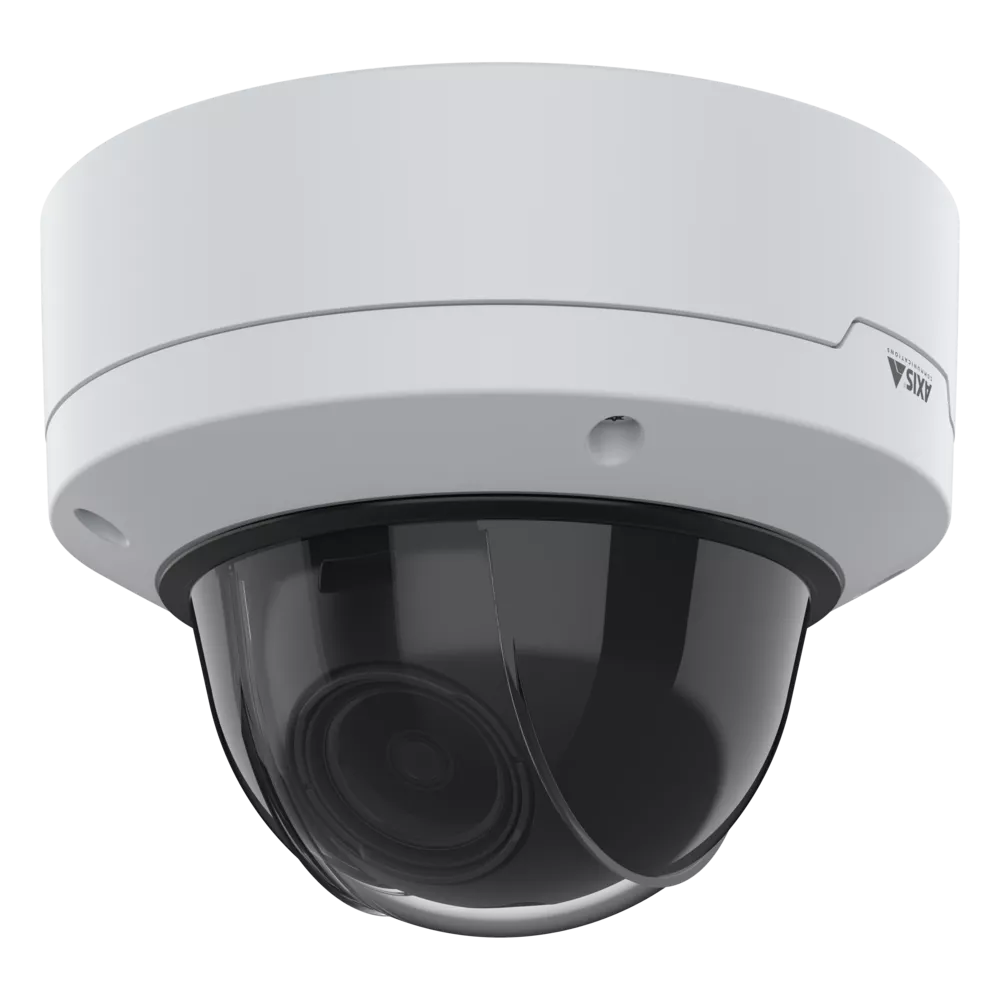

AXIS Q3546-LVE 4 MP AI-Powered Outdoor Dome Camera

The AXIS Q3546-LVE is an advanced 4 MP AI-powered outdoor dome network camera designed for demanding surveillance environments that require high frame rates, strong low-light performance, intelligent edge analytics and rugged physical protection.

Built on Axis ARTPEC-9 with a deep learning processing unit, the camera delivers up to 2688 × 1512 resolution at 100/120 fps. It combines Lightfinder 2.0, Forensic WDR, built-in IR and Electronic Image Stabilization to maintain useful forensic detail in low light, high-contrast scenes and applications involving fast movement.

Two lens versions are available: the Q3546-LVE 10 mm for wide-area coverage and the Q3546-LVE 51 mm for narrower, longer-distance surveillance.

Key Features

✔ 4 MP / 2688 × 1512 maximum resolution
✔ Up to 100/120 fps
✔ 1/1.8" CMOS sensor
✔ ARTPEC-9 with deep-learning processing
✔ Lightfinder 2.0
✔ Forensic WDR
✔ Built-in IR illumination
✔ IR-shielded dome to reduce reflections
✔ Electronic Image Stabilization
✔ Wide 10 mm and tele 51 mm variants
✔ Remote zoom & remote focus
✔ AV1, H.265 & H.264 compression
✔ Axis Zipstream technology
✔ AI-powered edge analytics
✔ Audio support
✔ Local microSD storage
✔ Axis Edge Vault cybersecurity
✔ Signed OS & Secure Boot
✔ FIPS 140-3 Level 3 secure key storage
✔ IP66 & IP6K9K environmental protection
✔ IK10 vandal resistance
✔ -50°C to +55°C operating range
✔ PoE Class 4
✔ PVC-free construction

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS Q3546-LVE
Variants: Q3546-LVE 10 mm / Q3546-LVE 51 mm
Camera Type: AI-Powered Outdoor Fixed Dome Network Camera
Image Sensor: 1/1.8" CMOS
Maximum Resolution: 2688 × 1512 (4 MP)
Maximum Frame Rate: 100/120 fps
Low-Light Technology: Lightfinder 2.0
Wide Dynamic Range: Forensic WDR
Day/Night: Yes
Electronic Image Stabilization: Yes
Built-in IR: Yes
Minimum B/W Illumination: 0 lux
Remote Zoom: Yes
Remote Focus: Yes

AXIS Q3546-LVE 10 mm — Wide-Angle Version

Focal Length: 4.7–10 mm
Horizontal FOV: 101.8°–44.0°
Vertical FOV: 54.0°–24.6°
Minimum Illumination – Color: 0.01 lux

This version is best suited for broad scene coverage such as entrances, loading areas, building exteriors, parking areas, warehouses and commercial premises.

AXIS Q3546-LVE 51 mm — Tele Version

Focal Length: 13–51 mm
Horizontal FOV: 33.1°–8.5°
Vertical FOV: 18.5°–4.8°
Minimum Illumination – Color: 0.04 lux

The 51 mm version is designed for applications where the camera needs to concentrate available resolution on a smaller or more distant area, such as gates, roads, perimeters and restricted zones.

Video & Compression

Maximum Video Resolution: 2688 × 1512
Maximum Frame Rate: 100/120 fps
AV1: Supported
H.265: Supported
H.264: Baseline, Main & High Profiles
Axis Zipstream: Supported

The unusually high 100/120 fps capability makes the Q3546-LVE especially useful for monitoring fast-moving people, vehicles and operational processes, where more frames can provide better incident review.

AV1, H.265 and Axis Zipstream also provide options for reducing bandwidth and recording storage requirements.

AI & Intelligent Analytics

The Q3546-LVE includes a deep learning processing unit for running advanced analytics directly at the edge. Axis specifically identifies AXIS Object Analytics as preinstalled for object detection and tracking.

Depending on installed applications and configuration, the camera can support workflows involving:

• Human and vehicle detection
• Object classification
• Object tracking
• Object counting
• Scene analysis
• Event-based alerts
• Metadata generation
• Operational intelligence
• Intelligent video search

Processing analytics directly on the camera can reduce dependence on centralized server resources for compatible applications.

Low-Light & Night Surveillance

Lightfinder 2.0 helps preserve useful image details and color information in very low-light scenes.

Forensic WDR helps reveal details when bright and dark areas appear within the same image.

Built-in IR enables surveillance at 0 lux in B/W, while the camera's IR-shielded dome is designed specifically to prevent IR reflections from reducing nighttime image quality.

Audio, Network & Storage

Audio Support: Yes
Built-in Microphone: Not integrated
Power over Ethernet: PoE Class 4
Local Storage: microSD / microSDHC / microSDXC supported
Wireless: Not specified

The camera can therefore participate in audio-enabled surveillance installations using compatible external equipment and system configurations.

Cybersecurity

Axis Edge Vault: Yes
Signed OS: Yes
Secure Boot: Yes
Secure Keystore: Hardware Secure Element
Secure Element Certification: CC EAL6+
Secure Cryptographic Key Storage: FIPS 140-3 Level 3

Axis Edge Vault provides hardware-backed cybersecurity designed to help protect device identity, cryptographic credentials and sensitive information against unauthorized access.

Outdoor & Physical Protection

Outdoor Ready: Yes
IP Rating: IP66 / IP6K9K
Vandal Rating: IK10
Operating Temperature: -50°C to +55°C
Designed for Repainting: Yes
Sustainability: PVC-Free

IP66 provides protection against dust and powerful water jets.

IP6K9K adds protection against close-range, high-pressure and high-temperature water jets.

IK10 provides strong impact resistance for vandal-prone or physically demanding installations.

Applications & Industries

Critical Infrastructure: Perimeter, gate and restricted-area surveillance.

Transportation: Roads, terminals, stations, depots and areas containing fast-moving subjects.

Industrial Facilities: Production areas, outdoor equipment zones and operational monitoring.

Warehouses & Logistics: Loading areas, distribution facilities, yards and vehicle movement.

Commercial Properties: Entrances, parking facilities, building exteriors and surrounding areas.

Government & Public Safety: Security-sensitive environments requiring intelligent analytics and strong physical protection.

Retail & Shopping Centers: Entrances, loading zones, parking areas and other high-traffic locations.

Purpose of Use

The AXIS Q3546-LVE is particularly useful where the surveillance objective requires a combination of 4 MP detail, very high frame rates, AI processing and low-light performance rather than simply maximizing resolution.

Typical applications include:

• Fast-moving vehicle surveillance
• Human and vehicle detection
• Entrance and gate monitoring
• Perimeter security
• Parking-area surveillance
• Industrial process monitoring
• Logistics operations
• Critical infrastructure protection
• Nighttime surveillance
• Incident investigation
• AI-based event detection
• Forensic video recording
• Security metadata generation

10 mm vs 51 mm — Which Version Should You Choose?

Q3546-LVE 10 mm: Best for wide-area surveillance, offering up to a 101.8° horizontal field of view.

Q3546-LVE 51 mm: Best for narrower and longer-distance surveillance, with the field of view narrowing down to 8.5°.

For Shopify buyers, the most important selection factor is therefore target distance and required scene width.

Important Operational Notes

✔ Select the 10 mm or 51 mm lens version according to surveillance distance and field-of-view requirements.

✔ Recording at 100/120 fps can considerably increase bandwidth and storage requirements.

✔ AV1 compatibility should be verified with the intended VMS, decoder and recording platform.

✔ Built-in IR supports complete-darkness surveillance, but actual IR performance varies with distance, weather, surfaces and installation geometry.

✔ Electronic Image Stabilization can improve footage where camera mounting is affected by vibration.

✔ Analytics accuracy depends on target size, lighting, viewing angle and configuration.

✔ A compatible PoE Class 4 switch, injector or other power source should be used.

✔ Recording capacity should be calculated according to resolution, frame rate, codec, scene activity and retention period.

Benefits

✔ Excellent 4 MP forensic image detail
✔ Exceptional 100/120 fps capability
✔ Better visibility of fast-moving activity
✔ Lightfinder 2.0 for low-light environments
✔ Forensic WDR for difficult contrast
✔ Built-in IR for nighttime surveillance
✔ IR-shielded dome minimizes IR reflections
✔ AI processing directly on the camera
✔ Choice of wide and tele lens configurations
✔ Remote zoom and focus simplify installation
✔ Electronic Image Stabilization
✔ AV1, H.265 and Zipstream storage efficiency
✔ IP66/IP6K9K outdoor protection
✔ IK10 vandal resistance
✔ Hardware-backed cybersecurity
✔ Extreme -50°C to +55°C operating capability

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for enterprise and project-based CCTV requirements
✔ Experience with AI-powered IP surveillance solutions
✔ Assistance with lens, field-of-view and deployment selection
✔ Solutions for commercial, industrial and infrastructure projects
✔ UAE-focused technical and commercial support

FAQ - AXIS Q3546-LVE

What resolution does AXIS Q3546-LVE provide?

The Q3546-LVE supports up to 2688 × 1512 4 MP video at up to 100/120 fps.

What is the difference between the 10 mm and 51 mm versions?

The 10 mm model uses a 4.7–10 mm lens for wide coverage, while the 51 mm model uses a 13–51 mm lens for narrower, longer-distance surveillance.

Does AXIS Q3546-LVE have built-in IR?

Yes. It includes integrated IR and supports 0 lux B/W surveillance.

Does it support AV1?

Yes. The current official specifications list AV1 as supported, alongside H.265 and H.264.

Is the Q3546-LVE suitable for outdoor installation?

Yes. It is outdoor-ready with IP66/IP6K9K protection, IK10 vandal resistance and a -50°C to +55°C operating range.

Does it support AI analytics?

Yes. It includes deep-learning processing capabilities and comes with AXIS Object Analytics preinstalled for supported object detection and tracking applications.

Does it support edge recording?

Yes. It has a local memory card slot supporting microSD-type media.

Does it support PoE?

Yes. The camera is specified as PoE Class 4.
