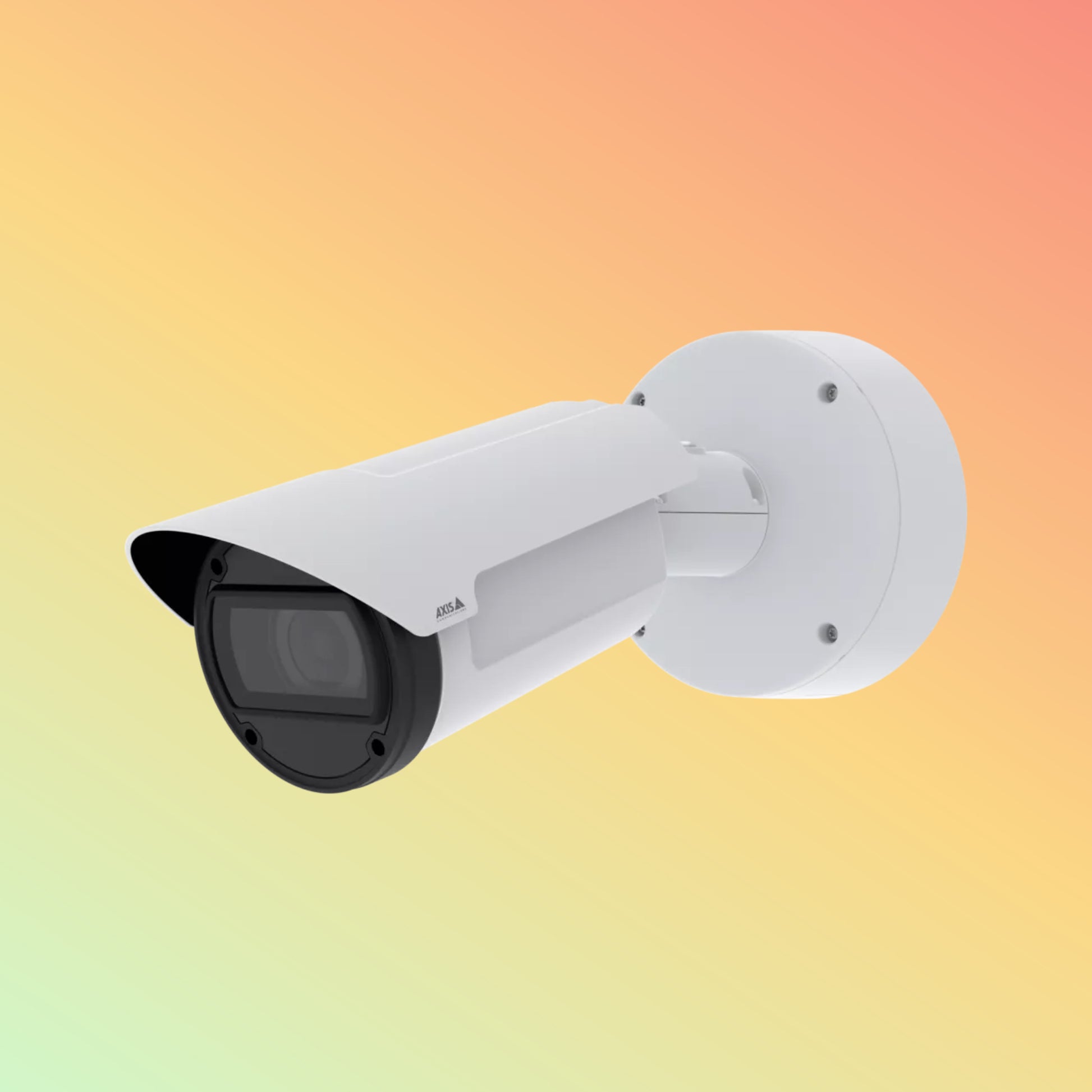

AXIS Q1809-LE 41 MP Outdoor Bullet Camera with 8K Resolution



The AXIS Q1809-LE is a high-performance outdoor-ready network bullet camera designed for surveillance applications where extreme image detail, wide-area coverage and reliable long-distance identification are required.

Built around a high-light-sensitive 4/3" progressive scan RGB CMOS sensor and a dual Axis system-on-chip architecture, the camera delivers up to 41 MP resolution and exceptional 8K image quality. It is available with either a 12–24 mm wide-angle lens for monitoring large open areas or a 50–150 mm telephoto lens for detailed surveillance over greater distances.

Its rugged aluminum enclosure, integrated mounting arm, spacious back box and built-in cybersecurity through Axis Edge Vault make the Q1809-LE suitable for demanding professional and critical-infrastructure surveillance deployments.

Key Features

✔ Superior 41 MP / 8K image quality
✔ Large 4/3" high-light-sensitive CMOS sensor
✔ Choice of 12–24 mm wide or 50–150 mm telephoto lens
✔ Remote zoom, remote focus & P-Iris control
✔ Outdoor-ready rugged aluminum construction
✔ Built-in IR illumination for low-light surveillance
✔ Axis Edge Vault hardware-based cybersecurity
✔ FIPS 140-3 Level 3 certified secure key storage and operations
✔ Gigabit Ethernet & multiple power options
✔ PoE output for powering an additional network device
✔ I/O and external microphone/line input
✔ Designed for severe weather and demanding installations

Technical Specifications

Imaging & Performance

Image Sensor: 4/3" Progressive Scan RGB CMOS
Pixel Size: 2.315 µm
Maximum Resolution: 41 MP
Video: Up to 8K resolution
Image Processing: Dual Axis system-on-chip architecture
Focus/Zoom: Remote Zoom & Remote Focus
Iris Control: P-Iris

24 mm Wide-Lens Version

Lens: Varifocal 12–24 mm, F2.0–3.0
8K Field of View: 90°–44° horizontal / 49°–25° vertical
41 MP Field of View: 87°–42° horizontal / 64°–32° vertical
Minimum Focus Distance: 1.5 m / 4.9 ft
Weight: 3.4 kg / 7.50 lb
EPA: 0.0455 m² / 0.49 ft²
Part Numbers: 02870-001 (International) / 02870-113 (India)

150 mm Tele-Lens Version

Lens: Varifocal 50–150 mm, F4.0
8K Field of View: 21°–7° horizontal / 12°–4° vertical
41 MP Field of View: 20°–6.6° horizontal / 15°–5° vertical
Minimum Focus Distance: 5 m / 16.4 ft
Weight: 3.2 kg / 7.05 lb
EPA: 0.0478 m² / 0.51 ft²
Part Numbers: 03019-001 (International) / 03019-113 (India)

Network & Connections

Network: Shielded RJ45, 10BASE-T / 100BASE-TX / 1000BASE-T
PoE Input: Supported
PoE Output: RJ45 1000BASE-T for powering an external PoE device
I/O: 4-pin 2.5 mm terminal block, 1 alarm input + 1 output
Audio: 3.5 mm microphone/line input

Power

PoE Type 2: IEEE 802.3at Class 4, typical 18.9 W / max. 25.5 W
PoE Type 3: IEEE 802.3bt Class 6, typical 18.9 W / max. 51 W
DC Input: 10–28 V DC, typical 17.6 W / max. 35 W
AC Input: 20–24 V AC, typical 25 VA / max. 33 VA
Power Features: Power profiles and integrated power meter

PoE Output Requirement: A 60 W IEEE 802.3bt Type 3 Class 6 midspan is required to provide IEEE 802.3at Type 2 Class 4 (30 W) PoE output to a second device.

Environmental Specifications

Operating Temperature with 30 W: -20°C to +55°C
Operating Temperature with 60 W: -40°C to +55°C
Maximum NEMA TS 2 Temperature: 74°C
Operating Humidity: 10–100% RH, condensing
Storage Temperature: -40°C to +65°C
Storage Humidity: 5–95% RH, non-condensing
Sustained Wind Load: Up to 60 m/s / 134 mph

Cybersecurity

Security Platform: Axis Edge Vault
Hardware-Based Security: Yes
Secure Key Storage: FIPS 140-3 Level 3 certified secure key storage and operations
Purpose: Protects cryptographic keys, device identity and sensitive security operations.

Box Contents

Camera • Installation Guide • Terminal Block Connector • RJ45 Cable • Connector Guard • Cable Gaskets • Owner Authentication Key

Optional Accessories: AXIS T8415 Wireless Installation Tool and AXIS Surveillance Cards

Applications & Industries

Critical Infrastructure: Detailed monitoring of utilities, energy facilities and restricted locations.
Airports & Transportation: Wide-area monitoring of terminals, runways, roads and transportation infrastructure.
Industrial Facilities: Perimeter, production area and high-value asset surveillance.
Ports & Logistics: Long-distance monitoring of yards, loading zones, containers and perimeter areas.
Government & Public Safety: High-resolution surveillance of sensitive or large public environments.
Large Commercial Sites: Suitable for campuses, parking areas, warehouses and large outdoor facilities.

Purpose of Use

The AXIS Q1809-LE is designed for surveillance situations where conventional network cameras may not provide sufficient detail or coverage. Its 41 MP sensor allows operators to capture extensive scene information, while the two lens options allow the camera to be selected according to the surveillance distance.

The 12–24 mm version is particularly suitable for large open areas, entrances, yards, parking facilities and broad perimeter coverage.

The 50–150 mm version is intended for applications requiring a narrower field of view and detailed observation from greater distances, including critical infrastructure, transport facilities, industrial sites and perimeter surveillance.

Important Operational Notes

✔ Select the 24 mm or 150 mm version according to required field of view and surveillance distance.
✔ A suitable 60 W PoE source is required when using the camera's PoE-out capability at the specified output level.
✔ Network infrastructure should be planned appropriately for high-resolution surveillance and recording.
✔ Storage requirements can be significant when recording high-resolution video continuously.
✔ Mounting structure should account for camera weight and specified wind loading.
✔ Actual recording performance depends on resolution, frame rate, compression, scene activity and VMS configuration.
✔ Lens selection should be confirmed during surveillance system design rather than based on resolution alone.

Benefits

✔ Extremely detailed 41 MP surveillance imaging
✔ 8K capability for high-resolution monitoring
✔ Large 4/3" sensor for enhanced light sensitivity
✔ Wide-angle and long-distance lens configurations
✔ Reduced need for multiple cameras in certain wide-area applications
✔ Multiple power options for flexible installations
✔ PoE-out can simplify installation of an additional network device
✔ Hardware-based cybersecurity protection
✔ Designed for demanding outdoor surveillance environments
✔ Suitable for enterprise and critical-infrastructure projects

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for enterprise and project-based requirements
✔ Experience with IP cameras and network surveillance solutions
✔ Assistance with camera, lens and deployment selection
✔ UAE-focused technical and commercial support
✔ Transparent product and compatibility information

FAQ - AXIS Q1809-LE

What resolution does the AXIS Q1809-LE provide?

The camera offers up to 41 MP resolution and supports extremely detailed 8K surveillance imaging.

What is the difference between the two Q1809-LE versions?

The standard version uses a 12–24 mm varifocal lens for wider surveillance coverage, while the Q1809-LE 150 mm uses a 50–150 mm telephoto lens for narrower, longer-distance surveillance.

Is the AXIS Q1809-LE suitable for outdoor installation?

Yes. It is an outdoor-ready camera housed in a robust aluminum enclosure and designed to operate in demanding environmental conditions.

Can the camera power another network device?

Yes. It includes a Gigabit Ethernet PoE output. The appropriate power source is required when using this capability.

Does it support remote lens adjustment?

Yes. Both lens configurations support remote zoom, remote focus and P-Iris control.

What is Axis Edge Vault?

Axis Edge Vault is Axis's hardware-based cybersecurity platform designed to protect device identities, cryptographic keys and sensitive security operations.
