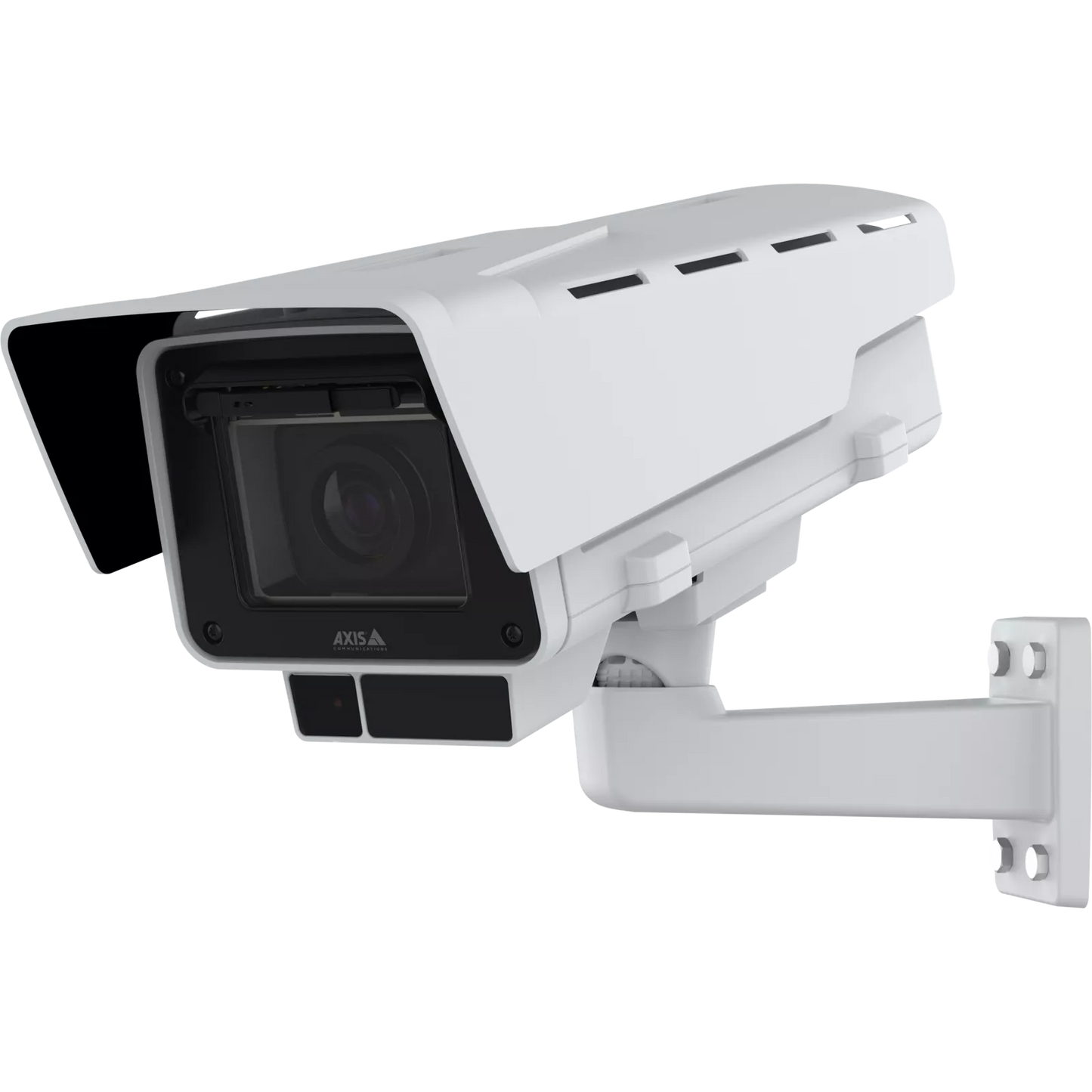

AXIS Q1728-LE 4K UHD Outdoor Block Camera

The AXIS Q1728-LE is a high-performance 4K UHD outdoor-ready block network camera designed for professional surveillance applications requiring excellent image detail, strong low-light performance, intelligent video processing and rugged environmental protection.

Built around a large 1/1.2" CMOS sensor, the camera delivers up to 3840 × 2160 4K UHD resolution at 50/60 fps. Axis Lightfinder 2.0 provides high-quality color images in very low light, while Forensic WDR helps preserve details in scenes containing both bright and dark areas.

The Q1728-LE is available with two lens configurations for different surveillance requirements: a wide 5.9–13.3 mm version for broad coverage and a 15.2–48.7 mm version for narrower, longer-distance monitoring.

With built-in IR illumination, electronic image stabilization, remote zoom and focus, AV1/H.265 compression, edge storage and rugged IP66/IP67 and IK10 protection, it is suitable for demanding outdoor and critical surveillance deployments.

Key Features

✔ 4K UHD 3840 × 2160 video
✔ Up to 50/60 fps
✔ Large 1/1.2" CMOS image sensor
✔ Axis Lightfinder 2.0
✔ Forensic WDR
✔ Built-in IR illumination
✔ Electronic Image Stabilization (EIS)
✔ Remote zoom & remote focus
✔ Wide-angle and long-range lens variants
✔ AV1, H.265 & H.264 video compression
✔ Axis Zipstream technology
✔ Local memory card storage
✔ Audio support
✔ PoE Class 4 & 10–28 V DC power options
✔ IP66/IP67 weather protection
✔ IK10 vandal resistance
✔ Secure Boot, Signed OS & hardware secure element

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS Q1728-LE
Product Type: Outdoor Block Network Camera
Image Sensor: 1/1.2" CMOS
Maximum Resolution: 3840 × 2160 (4K UHD)
Maximum Frame Rate: 50/60 fps
Wide Dynamic Range: Forensic WDR
Low-Light Technology: Lightfinder 2.0
Electronic Image Stabilization: Yes
Built-in IR: Yes
Remote Focus: Yes
Remote Zoom: Yes

Low-Light Performance

Minimum Illumination – Color: 0.05 lux
Minimum Illumination – B/W: 0.01 lux
IR Surveillance: Built-in IR illumination supports monitoring in very dark environments.

Lens Variants

AXIS Q1728-LE Wide Version
Focal Length: 5.9–13.3 mm
Horizontal FOV: 108°–49°
Vertical FOV: 58°–27°

Designed primarily for wider scene coverage such as entrances, yards, parking areas, building perimeters and open operational environments.

AXIS Q1728-LE 48 mm Version
Focal Length: 15.2–48.7 mm
Horizontal FOV: 42°–13°
Vertical FOV: 24°–7°

Designed for narrower and more distant surveillance where greater subject detail is required from farther camera positions.

Video & Compression

Maximum Video: 3840 × 2160
Frame Rate: Up to 50/60 fps
AV1: Supported
H.265: Supported
H.264: Baseline, Main & High Profiles
Axis Zipstream: Supported

Support for modern AV1 and H.265 compression can significantly improve bandwidth and storage efficiency compared with less efficient video encoding, depending on the VMS and playback infrastructure.

Audio, Network & Storage

Audio Support: Yes
Network Connection: Ethernet
Wireless: No
Local Storage: Memory Card Slot
PoE: Class 4

Power

Power over Ethernet: PoE Class 4
Average Power Consumption: 9.0 W
Maximum Power Consumption: 25.5 W
DC Input: 10–28 V DC

Actual power consumption can vary depending on operating conditions and enabled functionality, including IR illumination.

Cybersecurity

Signed OS: Yes
Secure Boot: Yes
Secure Keystore: Secure Element
Secure Element Certification: CC EAL6+
Secure Cryptographic Key Storage: FIPS 140-3 Level 3

These hardware and software security mechanisms help protect device identity, cryptographic credentials and sensitive operations against unauthorized access.

Environmental & Physical Protection

Outdoor Ready: Yes
IP Rating: IP66 / IP67
Vandal Resistance: IK10
Operating Temperature: -40°C to +60°C
Designed for Repainting: Yes
Sustainability: BFR/CFR-free and PVC-free

The combination of IP66/IP67 weather protection, IK10 impact resistance and a wide operating temperature range makes the Q1728-LE suitable for demanding outdoor deployments.

Applications & Industries

Critical Infrastructure: Perimeter, restricted-area and high-value infrastructure monitoring.

Transportation: Roads, terminals, stations, depots and other transport infrastructure.

Industrial Facilities: Outdoor production areas, facility perimeters, equipment zones and operational monitoring.

Warehouses & Logistics: Loading areas, distribution yards, vehicle zones and perimeter surveillance.

Commercial Properties: Building exteriors, parking areas, entrances and large commercial sites.

Government & Public Safety: High-quality surveillance for public infrastructure and security-sensitive environments.

Energy & Utilities: Suitable for remote and demanding installations requiring rugged environmental performance.

Purpose of Use

The AXIS Q1728-LE is intended for professional surveillance applications where 4K image detail, low-light performance, rugged outdoor construction and flexible lens selection are required.

Typical applications include:

• Perimeter surveillance
• Wide-area monitoring
• Long-distance observation
• Vehicle monitoring
• Entrance and exit surveillance
• Industrial site security
• Critical infrastructure protection
• Parking and yard surveillance
• Logistics facility monitoring
• Outdoor incident investigation
• High-detail forensic video recording

The 5.9–13.3 mm version is better suited to broad scene coverage, while the 15.2–48.7 mm version provides a narrower field of view for subjects located farther from the camera.

Important Operational Notes

✔ Select the correct wide or 48 mm lens version according to surveillance distance and required field of view.

✔ 4K recording at high frame rates can generate substantial network traffic and storage requirements. VMS, network and storage capacity should be planned accordingly.

✔ AV1 compatibility should be verified with the intended VMS, browser, decoder and playback infrastructure.

✔ Built-in IR assists low-light surveillance, but actual effective performance depends on scene conditions, target distance, lens configuration and installation.

✔ Electronic Image Stabilization can help improve usable footage in installations affected by vibration or movement.

✔ PoE infrastructure should provide the required Class 4 power budget.

✔ Camera placement and lens selection should be planned according to the required detection, recognition and identification objectives.

Benefits

✔ Detailed 4K UHD surveillance imaging
✔ Smooth video at up to 50/60 fps
✔ Large sensor for strong low-light performance
✔ Lightfinder 2.0 helps retain useful color information in low light
✔ Forensic WDR improves challenging high-contrast scenes
✔ Built-in IR supports nighttime surveillance
✔ Two lens ranges for wide or longer-distance monitoring
✔ Electronic stabilization for demanding installations
✔ AV1/H.265 and Zipstream help optimize bandwidth and storage
✔ IP66/IP67 and IK10 protection for demanding outdoor use
✔ Hardware-backed cybersecurity features
✔ Wide -40°C to +60°C operating range

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for enterprise and project-based CCTV requirements
✔ Experience with network cameras and IP surveillance solutions
✔ Assistance with lens and deployment selection
✔ Solutions for commercial, industrial and infrastructure projects
✔ UAE-focused technical and commercial support

FAQ - AXIS Q1728-LE

What resolution does the AXIS Q1728-LE provide?

The camera supports up to 3840 × 2160 4K UHD resolution at up to 50/60 frames per second.

What is the difference between the AXIS Q1728-LE lens variants?

The 5.9–13.3 mm version provides a wide 108°–49° horizontal field of view, making it suitable for broad coverage. The 15.2–48.7 mm version provides a narrower 42°–13° field of view for more distant surveillance.

Does AXIS Q1728-LE have built-in infrared?

Yes. The camera includes built-in IR illumination for surveillance in low-light and dark environments.

Is the AXIS Q1728-LE suitable for outdoor installation?

Yes. It is outdoor-ready with IP66/IP67 protection, IK10 vandal resistance and an operating range from -40°C to +60°C.

Does it support AV1?

Yes. The Q1728-LE supports AV1, along with H.265, H.264 and Axis Zipstream.

Does it support local recording?

Yes. The camera includes a memory card slot for supported edge-storage applications.

Does the camera support PoE?

Yes. It supports PoE Class 4 with a maximum stated power consumption of 25.5 W. A 10–28 V DC input is also available.

What is Lightfinder 2.0?

Lightfinder 2.0 is Axis low-light imaging technology designed to produce usable images and retain color information in very low-light conditions.
