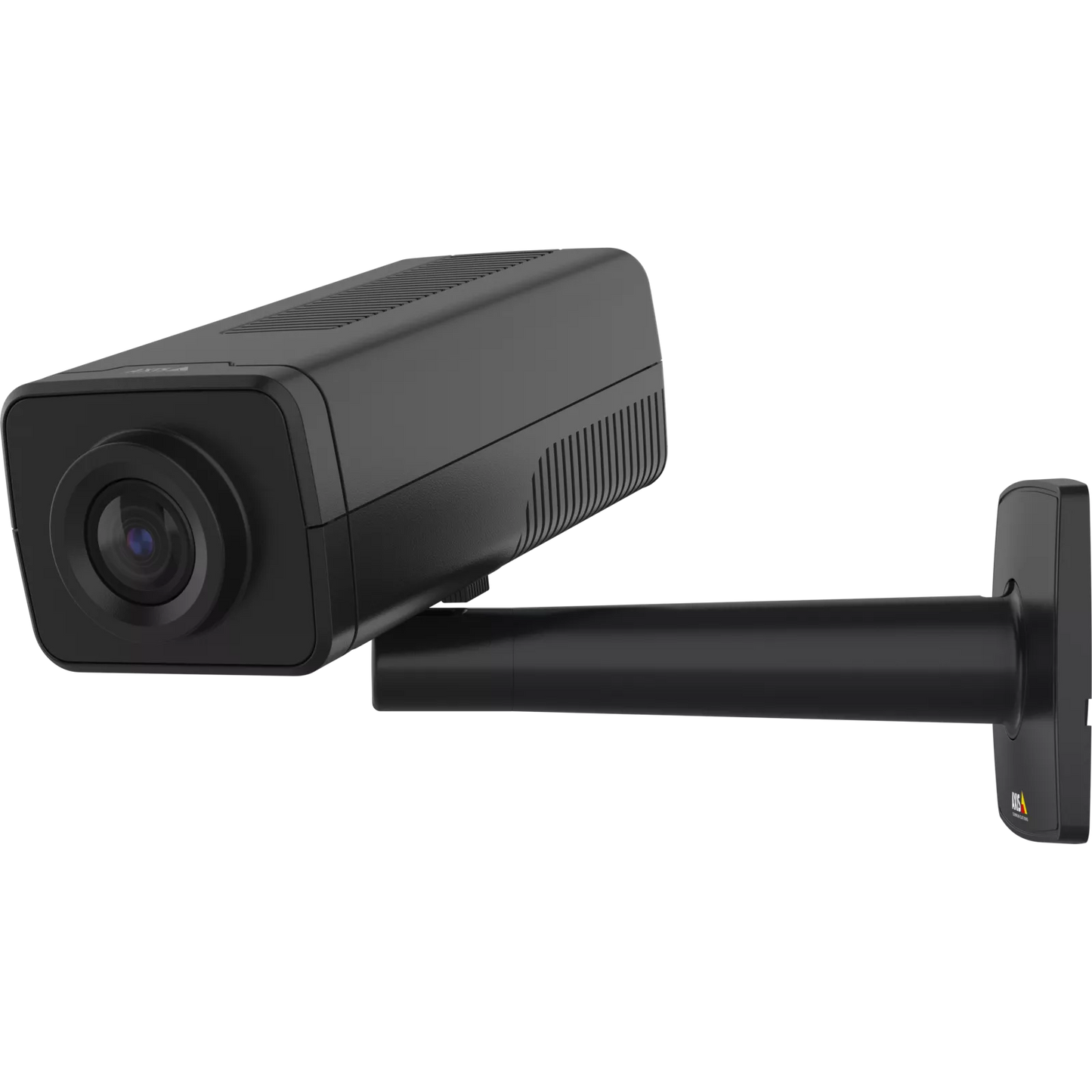

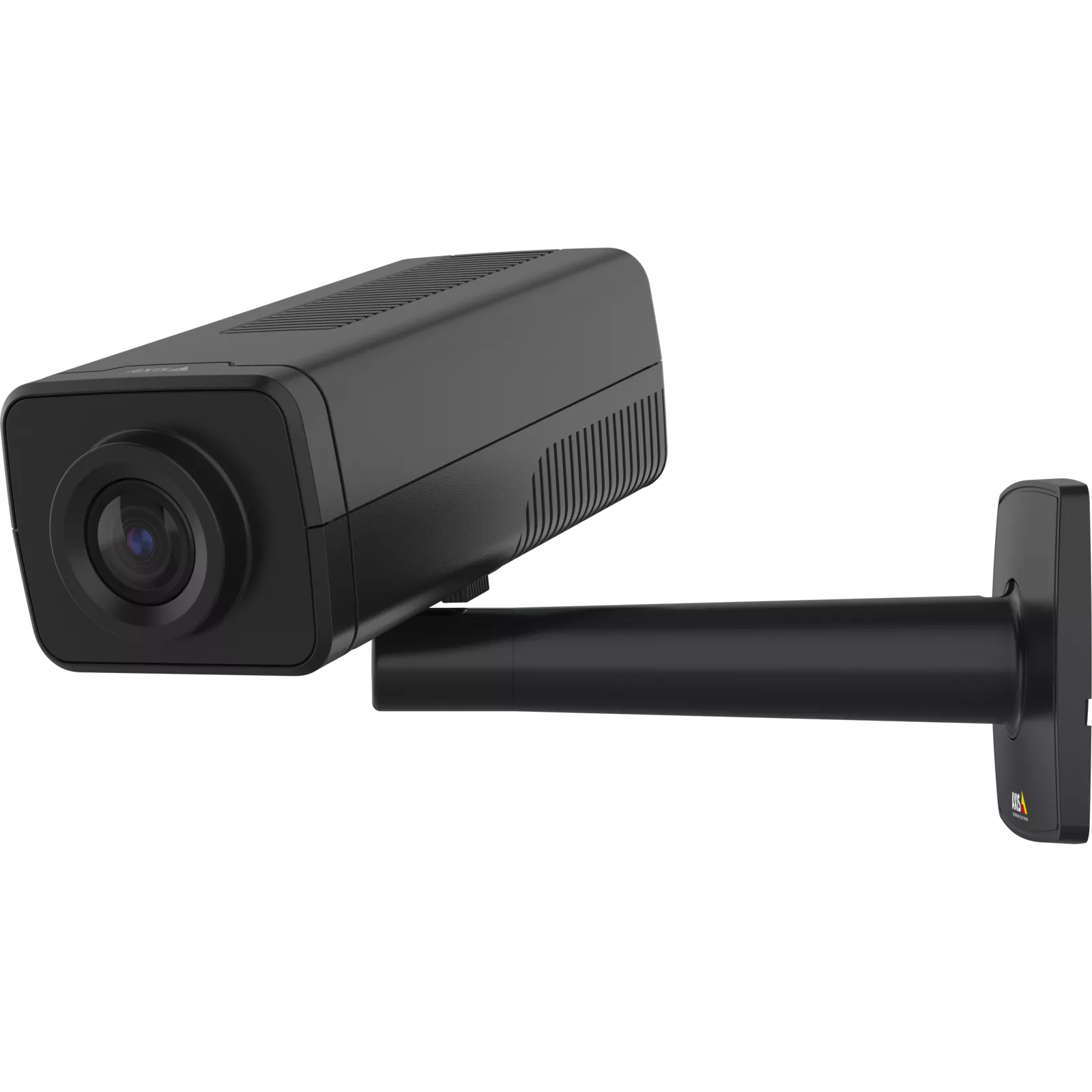

AXIS Q1728 4K UHD Block Network Camera

AXIS Q1728 is a professional 4K UHD block network camera engineered for surveillance applications requiring high image detail, excellent low-light performance and flexible lens coverage in an integrator-friendly block camera format.

Featuring a large 1/1.2" CMOS sensor, the Q1728 captures up to 3840 × 2160 resolution at 50/60 fps. Lightfinder 2.0 enhances visibility and color reproduction in very low light, while Forensic WDR helps preserve important details when bright and dark areas appear within the same scene.

Two configurations are available: AXIS Q1728 02839-001 with a wide 5.9–13.3 mm lens and AXIS Q1728 48 mm 02840-001 with a 15.2–48.7 mm lens for narrower, longer-distance coverage.

Unlike the outdoor-ready Q1728-LE, the Q1728 does not include built-in IR or an outdoor-rated enclosure, making it particularly suitable for indoor installations or integration into an appropriate external housing.

Key Features

✔ 4K UHD 3840 × 2160 resolution
✔ Up to 50/60 fps video
✔ Large 1/1.2" CMOS image sensor
✔ Axis Lightfinder 2.0
✔ Forensic WDR
✔ Electronic Image Stabilization (EIS)
✔ Remote zoom & remote focus
✔ Two lens configurations available
✔ AV1, H.265 & H.264 compression
✔ Axis Zipstream technology
✔ Audio support
✔ Local memory card storage
✔ PoE Class 3
✔ 10–28 V DC power input
✔ Signed OS & Secure Boot
✔ CC EAL6+ / FIPS 140-3 Level 3 secure element

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Series: AXIS Q1728
Product Type: Block Network Camera
Image Sensor: 1/1.2" CMOS
Maximum Resolution: 3840 × 2160 (4K UHD)
Maximum Frame Rate: 50/60 fps
Low-Light Technology: Lightfinder 2.0
Wide Dynamic Range: Forensic WDR
Electronic Image Stabilization: Yes
Minimum Illumination – Color: 0.05 lux
Minimum Illumination – B/W: 0.01 lux
Remote Zoom: Yes
Remote Focus: Yes
Built-in IR: No

AXIS Q1728 — 02839-001

Lens: 5.9–13.3 mm
Horizontal FOV: 108°–49°
Vertical FOV: 58°–27°
Part Number: 02839-001
Application: Wide-area and general surveillance

The wide field of view makes this version particularly suitable for entrances, large indoor areas, production environments, warehouses and locations requiring extensive scene coverage.

AXIS Q1728 48 mm — 02840-001

Lens: 15.2–48.7 mm
Horizontal FOV: 42°–13°
Vertical FOV: 24°–7°
Part Number: 02840-001
Application: Narrower and longer-distance surveillance

The longer focal length provides a tighter viewing angle for monitoring subjects positioned farther from the camera.

Video & Compression

Maximum Video: 3840 × 2160
Maximum Frame Rate: 50/60 fps
AV1: Supported
H.265: Supported
H.264: Baseline, Main & High Profiles
Axis Zipstream: Supported

Support for AV1, H.265 and Axis Zipstream provides flexible options for reducing network bandwidth and recording storage while maintaining important surveillance detail.

Audio, Network & Storage

Audio Support: Yes
Network: Wired Ethernet
Wireless: No
Local Storage: Memory Card Slot
Power over Ethernet: PoE Class 3

Power

PoE: Class 3
Average Power Consumption: 7.0 W
Maximum Power Consumption: 13.0 W
DC Input: 10–28 V DC

The relatively low power requirement makes the camera suitable for conventional PoE-based network surveillance infrastructure.

Cybersecurity

Signed OS: Yes
Secure Boot: Yes
Secure Keystore: Hardware Secure Element
Secure Element: CC EAL6+ certified
Secure Cryptographic Key Storage: FIPS 140-3 Level 3

These hardware-backed security features help protect cryptographic keys, device identity and sensitive security operations.

Environmental & Installation

Operating Temperature: -10°C to +60°C
Outdoor Ready: No
IP Rating: Not specified
Vandal Rating: Not specified
Built-in IR: No
Replaceable Lens: No
Sustainability: BFR/CFR-free and PVC-free

For exposed outdoor applications, an appropriate compatible protective enclosure should be considered, or the outdoor-ready AXIS Q1728-LE may be more suitable.

Applications & Industries

Warehousing & Logistics: High-resolution monitoring of storage areas, loading operations and goods movement.

Manufacturing: Production lines, machinery areas, process monitoring and facility security.

Retail & Commercial: High-detail monitoring of entrances, transaction areas and larger commercial spaces.

Transportation: Indoor terminals, stations, operational facilities and transportation infrastructure.

Government & Enterprise: Security-sensitive environments requiring high-resolution network surveillance.

System Integration: Suitable for projects where a block camera must be integrated into specialized housings, equipment or custom surveillance installations.

Purpose of Use

The AXIS Q1728 is designed for professional applications where 4K image quality and flexible optical coverage are required without the size or enclosure of a conventional outdoor bullet camera.

Typical applications include:

• High-detail video surveillance
• Wide-area monitoring
• Long-distance observation
• Entrance and exit surveillance
• Warehouse monitoring
• Manufacturing process monitoring
• Transportation facilities
• Security control rooms
• Custom camera installations
• Forensic video recording
• System integrator projects

Which Q1728 Should You Choose?

02839-001 — 5.9–13.3 mm: Better when a wide field of view and broad scene coverage are required.

02840-001 — 15.2–48.7 mm: Better when the camera must observe a smaller or more distant area and a narrower viewing angle is preferred.

Important Operational Notes

✔ No built-in IR: Additional illumination should be considered for applications requiring surveillance in complete darkness.

✔ Not outdoor-ready: The Q1728 does not carry an outdoor-ready designation or specified IP weather-protection rating.

✔ For exposed outdoor installations, use a suitable compatible enclosure or consider the AXIS Q1728-LE.

✔ Select 02839-001 or 02840-001 according to surveillance distance and required field of view.

✔ 4K recording at 50/60 fps can require substantial network bandwidth and storage capacity.

✔ AV1 support should be verified against the intended VMS, browser, decoder and recording infrastructure.

✔ Camera position and lens selection should be planned according to required detection, recognition and identification performance.

✔ Electronic Image Stabilization can help improve usable video where the installation is affected by movement or vibration.

Benefits

✔ Detailed 4K UHD surveillance video
✔ Smooth recording at up to 50/60 fps
✔ Large 1/1.2" sensor
✔ Strong low-light performance
✔ Lightfinder 2.0 helps preserve useful color information
✔ Forensic WDR handles difficult high-contrast scenes
✔ Wide and long-range lens options
✔ Remote zoom and focus simplify configuration
✔ Electronic image stabilization
✔ AV1, H.265 and Zipstream improve storage efficiency
✔ Hardware-backed cybersecurity
✔ Flexible PoE or DC-powered installation
✔ Compact block format for system integration

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for enterprise and project-based CCTV requirements
✔ Experience with network cameras and IP surveillance solutions
✔ Assistance with lens and deployment selection
✔ Solutions for commercial, industrial and infrastructure projects
✔ UAE-focused technical and commercial support

FAQ - AXIS Q1728

What is the resolution of the AXIS Q1728?

The AXIS Q1728 supports up to 3840 × 2160 4K UHD resolution at up to 50/60 frames per second.

What is the difference between 02839-001 and 02840-001?

02839-001 uses a 5.9–13.3 mm lens with a wide 108°–49° horizontal field of view. 02840-001 uses a 15.2–48.7 mm lens with a narrower 42°–13° field of view for more distant surveillance.

What is the difference between AXIS Q1728 and Q1728-LE?

The Q1728 is a block camera without built-in IR or an outdoor-rated enclosure. The Q1728-LE is designed for outdoor surveillance and adds built-in IR, IP66/IP67 protection and IK10 impact resistance.

Does AXIS Q1728 support night surveillance?

It offers excellent low-light sensitivity down to 0.05 lux in color and 0.01 lux in B/W, but it does not include built-in IR. External illumination may therefore be required in complete darkness.

Does it support AV1?

Yes. The Q1728 supports AV1, as well as H.265, H.264 and Axis Zipstream.

Does it support local recording?

Yes. A memory card slot is available for supported edge-storage configurations.

Can the camera be powered through PoE?

Yes. The Q1728 supports PoE Class 3 and can alternatively use 10–28 V DC input.

Is the AXIS Q1728 outdoor-ready?

No. The standard Q1728 is not designated as outdoor-ready and has no specified IP weather-protection rating.
