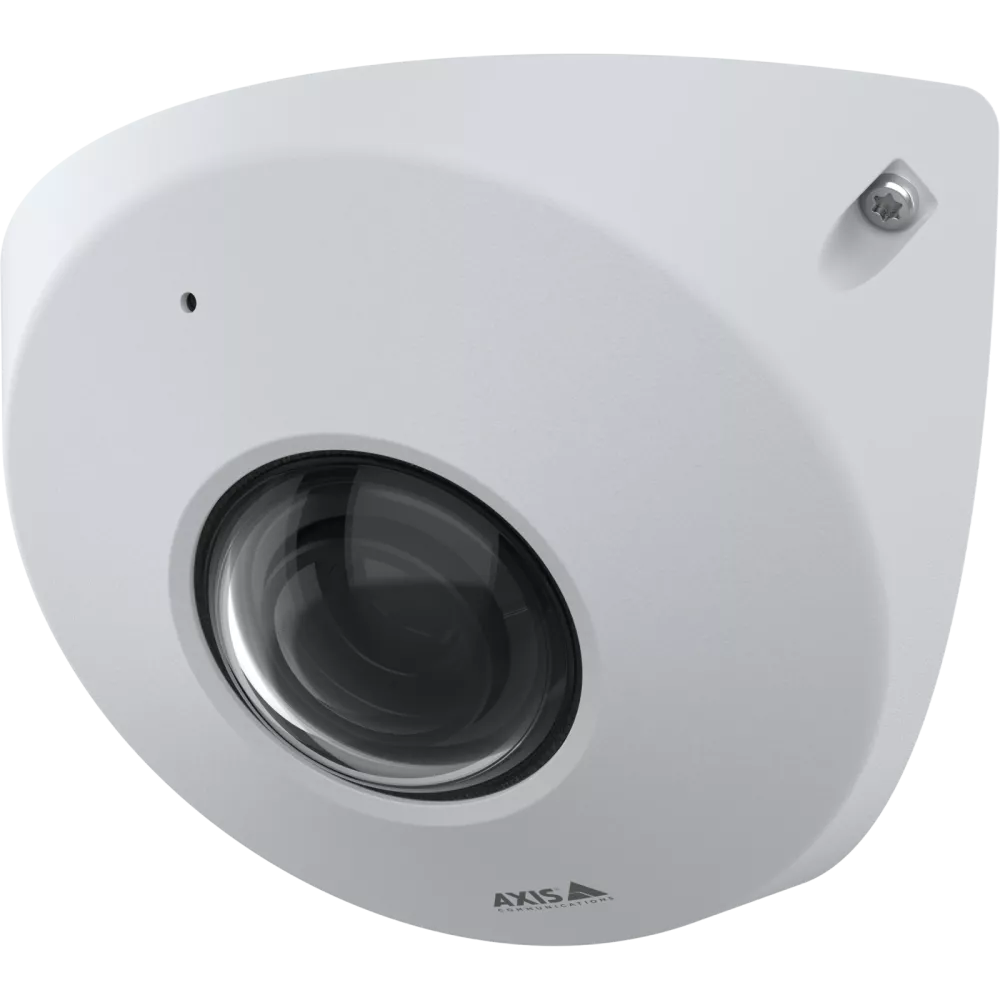

AXIS P9117-PV 6 MP Corner Camera with 176° Coverage

The AXIS P9117-PV is a specialized 6 MP corner network camera designed to provide exceptionally wide surveillance coverage with virtually no blind spots when correctly installed in a corner.

Its 1.1 mm stereographic lens provides an ultra-wide 176° horizontal × 176° vertical field of view, enabling the camera to monitor almost an entire room from a single corner position. This makes it particularly suitable for environments where conventional cameras could leave blind areas close to walls or directly underneath the camera.

The P9117-PV combines 2160 × 2160 resolution at up to 50/60 fps, Lightfinder, Forensic WDR, a built-in microphone, AXIS Audio Analytics, digital pan/tilt and strong IK10 vandal resistance.

With IP66 protection, PoE, local edge storage and built-in cybersecurity, it is designed for professional environments requiring broad visual coverage from a compact, robust corner-mounted camera.

Key Features

✔ 6 MP corner network camera
✔ Designed for virtually no blind spots
✔ Stereographic 1.1 mm lens
✔ Ultra-wide 176° horizontal field of view
✔ Ultra-wide 176° vertical field of view
✔ Maximum 2160 × 2160 resolution
✔ Up to 50/60 fps
✔ 1/1.8" CMOS sensor
✔ Lightfinder technology
✔ Forensic WDR
✔ Day/Night functionality
✔ Built-in microphone
✔ AXIS Audio Analytics
✔ Audio detection
✔ Digital pan & tilt
✔ Digital zoom
✔ Preset position guard tour
✔ Axis Zipstream
✔ H.264 & H.265 compression
✔ Video Motion Detection
✔ Active tampering detection
✔ ONVIF Profile G
✔ AXIS Camera Application Platform
✔ Local memory card storage
✔ PoE Class 3
✔ IK10 vandal resistance
✔ IP66 protection
✔ Axis Edge Vault cybersecurity
✔ HTTPS encryption
✔ IEEE 802.1X support
✔ Designed for repainting

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS P9117-PV
Camera Type: Corner-Mount Network Camera
Resolution Class: 6 MP
Image Sensor: 1/1.8" CMOS
Maximum Video Resolution: 2160 × 2160
Maximum Frame Rate: 50/60 fps
Low-Light Technology: Lightfinder
Wide Dynamic Range: Forensic WDR
Minimum Illumination – Color: 0.17 lux
Minimum Illumination – B/W: 0.04 lux
Day/Night Functionality: Yes
Electronic Image Stabilization: No
Built-in IR: No

Lens & 176° Field of View

Focal Length: 1.1 mm
Lens Type: Fixed Stereographic Lens
Varifocal: No
Aperture: F2.2
Horizontal Field of View: 176°
Vertical Field of View: 176°
Optical Zoom: No
Remote Focus: No
Remote Zoom: No
Replaceable Lens: No

The combination of a 176° horizontal and 176° vertical field of view is the defining feature of the P9117-PV.

When correctly positioned in a corner, this extremely wide stereographic view enables the camera to observe areas immediately adjacent to both walls as well as the main room area.

This makes it fundamentally different from a conventional dome or bullet camera that normally monitors only a defined section of the room.

Corner-Mount Surveillance & Blind-Spot Reduction

The AXIS P9117-PV is specifically designed for installations where maximum room coverage from a single corner position is required.

A conventional camera mounted in a corner may leave areas outside its field of view. The P9117-PV's 176° × 176° viewing angle substantially reduces these blind areas.

This design is particularly useful in:

• Interview rooms
• Holding rooms
• Correctional facilities
• Secure rooms
• Healthcare environments
• Elevators
• Small retail areas
• Behavioral care facilities
• Institutional environments
• High-security rooms

For applications where visual accountability throughout an enclosed space is important, the corner-camera design can reduce the number of cameras required to achieve comprehensive coverage.

Video Performance

Maximum Resolution: 2160 × 2160
Maximum Frame Rate: 50/60 fps
Day/Night: Yes
H.264: Baseline, Main & High Profiles
H.265: Supported
Axis Zipstream: Supported

The square 2160 × 2160 image format complements the camera's ultra-wide stereographic field of view and differs from the conventional 16:9 format commonly used by standard surveillance cameras.

Axis Zipstream and H.265 help reduce bandwidth and storage requirements while retaining important surveillance details.

Digital Pan, Tilt & Zoom

Although the AXIS P9117-PV does not use mechanical PTZ hardware, it supports:

Digital Pan/Tilt: Yes
Digital Zoom: Yes
Guard Tour: Preset Position Tour

Digital PTZ functionality allows operators to navigate within the captured ultra-wide image electronically.

This provides the benefits of inspecting different portions of the scene without physically moving the camera or introducing mechanical PTZ components.

Audio & AXIS Audio Analytics

One of the important advantages of the P9117-PV is its integrated audio capability.

Audio Support: Yes
Built-in Microphone: Yes
Audio Detection: Yes
Two-Way Audio: No

The built-in microphone allows the camera to capture audio together with video where legally permitted and appropriately configured.

AXIS Audio Analytics can add acoustic event intelligence to the surveillance system, allowing supported sound-related events to complement visual monitoring.

This can be particularly valuable in secure rooms, interview environments and other locations where sound may provide additional situational awareness.

Low-Light Surveillance

The P9117-PV incorporates Axis Lightfinder technology for improved imaging in low-light environments.

Minimum Color Illumination: 0.17 lux
Minimum B/W Illumination: 0.04 lux

Forensic WDR further helps maintain important details where both bright and dark areas are present within the same scene.

Important: No Built-in IR

The AXIS P9117-PV does not have built-in IR illumination.

Therefore, installations requiring video in complete darkness should provide suitable external or environmental illumination. This is an important distinction when comparing it with Axis models carrying integrated infrared illumination.

System Integration

Audio Detection: Yes
Active Tampering: Yes
Video Motion Detection: Yes
ONVIF Profile: G
AXIS Camera Application Platform: Supported

These capabilities allow the camera to integrate into professional IP surveillance environments and support event-driven security workflows.

Active tampering functionality can help identify attempts or conditions that interfere with normal camera operation.

Network, Power & Storage

Network Type: Wired IP Camera
Power over Ethernet: Yes
PoE Class: Class 3
Local Storage: Memory Card Slot
Wireless: No

PoE simplifies installation by carrying network connectivity and electrical power through compatible Ethernet infrastructure.

Local memory-card storage can also provide edge-recording capabilities depending on system configuration and storage media.

Cybersecurity & Network Security

The P9117-PV incorporates security functionality designed for professional network surveillance.

Axis Edge Vault: Yes
HTTPS Encryption: Yes
IEEE 802.1X: Yes

Axis Edge Vault provides a hardware-backed cybersecurity platform designed to help protect the device identity and sensitive information stored within the camera.

Physical & Environmental Protection

Vandal Resistance: IK10
Ingress Protection: IP66
Operating Temperature: -15°C to +50°C
Designed for Repainting: Yes

IK10

Provides strong resistance against physical impact, making the camera particularly useful in locations where deliberate tampering or vandalism may be a concern.

IP66

Provides protection against dust and powerful water jets.

Installation Note

Although the camera carries IP66 protection, the supplied specifications do not classify it as “Outdoor Ready.” Installation suitability should therefore be evaluated according to the exact mounting environment and Axis installation requirements rather than assuming it is a conventional outdoor camera solely from the IP rating.

Applications & Industries

Correctional & Detention Facilities: Cells, holding rooms, interview rooms and secure institutional areas.

Healthcare: Behavioral care areas, observation rooms and controlled environments where broad room coverage may be required.

Government & Public Safety: Interview rooms, secure rooms and controlled-access facilities.

Commercial Buildings: Small rooms, elevators and confined spaces where a single camera needs exceptionally broad coverage.

Retail: Small stores, service counters and areas where reducing surveillance blind spots is important.

Transportation: Elevators, enclosed waiting areas and other compact spaces.

Education & Institutional Facilities: Secure rooms and enclosed areas requiring comprehensive monitoring.

Purpose of Use

The AXIS P9117-PV is intended for environments where reducing blind spots is more important than long-distance viewing.

Its 176° × 176° stereographic coverage makes it particularly suitable for monitoring nearly an entire enclosed space from a single corner.

Typical applications include:

• Corner-mounted room surveillance
• Holding room monitoring
• Interview room recording
• Behavioral care observation
• Secure room surveillance
• Elevator monitoring
• Vandal-resistant surveillance
• Audio-assisted incident monitoring
• Retail room coverage
• Institutional security
• Event-driven recording
• Tampering detection
• Wide-area indoor monitoring

Important Operational Notes

✔ The 1.1 mm lens is fixed and does not provide optical zoom.

✔ The camera does not support remote optical focus or remote optical zoom.

✔ Digital pan, tilt and zoom operate within the captured image rather than physically moving the lens.

✔ The 176° × 176° field of view is designed for extreme wide-angle coverage and will produce a different perspective from a conventional rectilinear surveillance camera.

✔ The P9117-PV has no built-in IR, so suitable ambient or external illumination is required for environments that may become completely dark.

✔ The built-in microphone can provide additional situational information, but audio recording must comply with applicable privacy and surveillance regulations.

✔ PoE Class 3 simplifies deployment using compatible network infrastructure.

✔ Memory-card capacity and endurance should be selected according to recording bitrate and required retention period.

✔ Installation positioning is especially important to achieve the intended corner coverage and minimize blind areas.

Benefits

✔ Nearly complete corner-to-corner room coverage
✔ Extremely wide 176° × 176° field of view
✔ Helps minimize surveillance blind spots
✔ 6 MP image detail
✔ Smooth video at up to 50/60 fps
✔ Stereographic lens optimized for corner surveillance
✔ Built-in microphone
✔ Audio analytics support
✔ Lightfinder for low-light performance
✔ Forensic WDR for challenging lighting
✔ Digital pan, tilt and zoom
✔ Active tampering detection
✔ H.265 and Zipstream help optimize storage
✔ Edge recording support
✔ IK10 vandal resistance
✔ IP66 protection
✔ PoE Class 3 installation
✔ Built-in cybersecurity capabilities

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for enterprise and project-based CCTV requirements
✔ Experience with specialized IP surveillance solutions
✔ Assistance with camera placement and coverage selection
✔ Solutions for commercial, institutional and security projects
✔ UAE-focused technical and commercial support

FAQ - AXIS P9117-PV

What resolution does the AXIS P9117-PV provide?

The camera provides a maximum resolution of 2160 × 2160 and is classified as a 6 MP corner camera.

What makes the AXIS P9117-PV a corner camera?

Its specialized 1.1 mm stereographic lens provides a 176° horizontal and 176° vertical field of view, allowing it to cover an exceptionally large portion of a room when installed in a corner.

Does the P9117-PV provide 360° coverage?

No. It provides 176° horizontal × 176° vertical coverage. Its purpose is comprehensive corner-mounted coverage rather than a conventional 360° panoramic view.

Does the camera have optical zoom?

No. The lens is fixed and does not provide optical zoom. Digital zoom and digital pan/tilt are supported.

Does it have a built-in microphone?

Yes. The P9117-PV includes a built-in microphone and supports audio detection.

Does it support AXIS Audio Analytics?

Yes. AXIS Audio Analytics is specified for the camera, adding supported acoustic-event intelligence to the surveillance system.

Does AXIS P9117-PV have built-in IR?

No. Built-in IR and OptimizedIR are not provided. Suitable illumination should be available when monitoring very dark environments.

Is the camera vandal resistant?

Yes. It carries an IK10 vandal-resistance rating.

What is its IP rating?

The P9117-PV is rated IP66 for protection against dust and powerful water jets.

Does it support local recording?

Yes. The camera includes a memory card slot for supported edge-storage configurations.

Does it support PoE?

Yes. It supports Power over Ethernet, PoE Class 3.

Does it support H.265?

Yes. The camera supports H.265, H.264 and Axis Zipstream.
