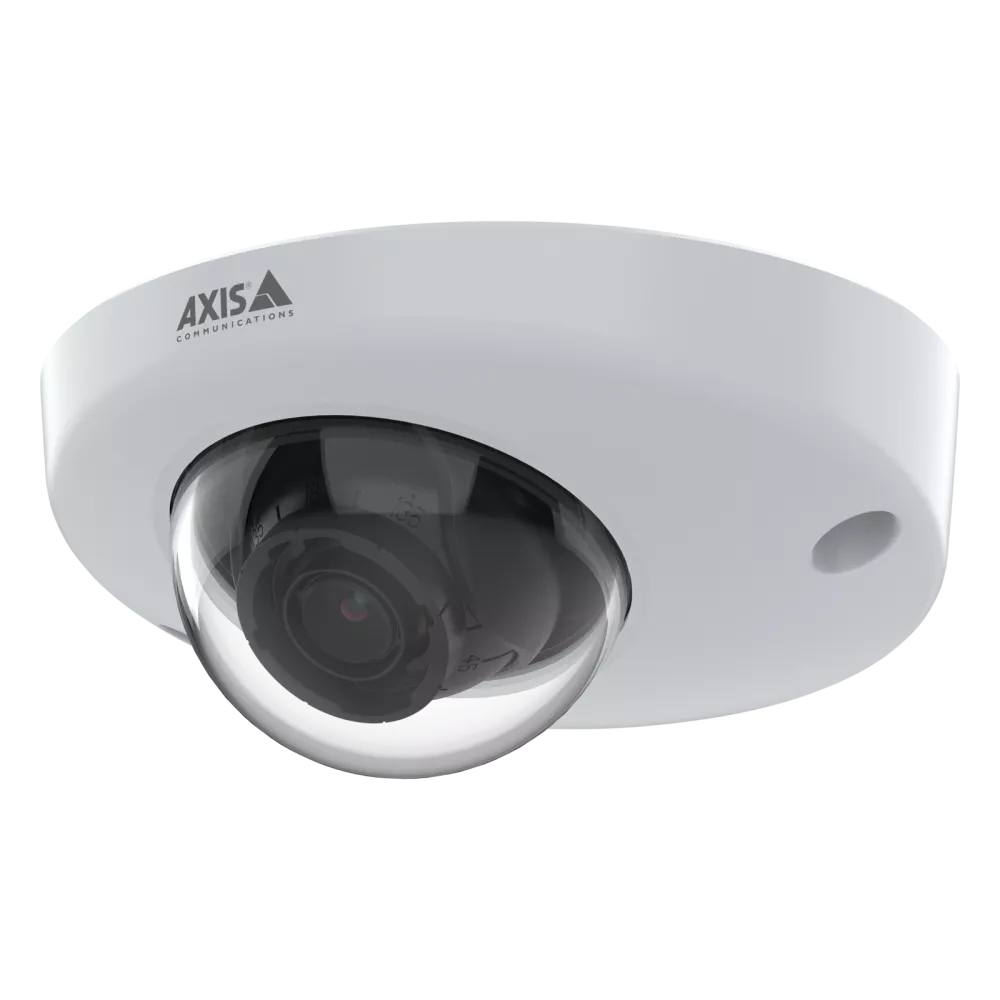

AXIS P3905-R Mk III 2 MP Rugged Onboard Dome Camera

The AXIS P3905-R Mk III is a compact, rugged 2 MP onboard network dome camera designed for surveillance inside buses, trains, trams, emergency vehicles and other transportation environments where vibration, impact resistance and reliable video performance are essential.

It delivers up to 1920 × 1080 Full HD resolution at 45 fps and combines Axis Lightfinder with Forensic WDR to maintain useful image detail in low-light and high-contrast conditions.

The camera is available in multiple variants with either 3.6 mm or 2.8 mm lenses and RJ45 or M12 connectivity options. It also complies with EN50155, making it suitable for professional onboard railway and transportation applications.

Key Features

✔ 2 MP / Full HD 1920 × 1080 video
✔ Up to 45 fps
✔ Compact rugged onboard design
✔ EN50155 compliant
✔ Lightfinder low-light technology
✔ Forensic WDR
✔ Traffic Light mode
✔ 2.8 mm and 3.6 mm lens options
✔ Digital pan/tilt and digital zoom
✔ Replaceable M12 lens
✔ H.264 and H.265 compression
✔ Axis Zipstream technology
✔ Active tampering detection
✔ Local memory card storage
✔ AXIS Camera Application Platform support
✔ Signed OS
✔ HTTPS encryption and IEEE 802.1X
✔ PoE Class 1
✔ IK10 impact resistance
✔ IP66 and IP67 protection
✔ Operating range from -30°C to +55°C

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS P3905-R Mk III
Product Type: Rugged Onboard Network Dome Camera
Maximum Resolution: 1920 × 1080 Full HD
Maximum Frame Rate: 45 fps
Low-Light Technology: Lightfinder
Wide Dynamic Range: Forensic WDR
Minimum Illumination – Color: 0.07 lux
Day/Night Functionality: Not specified
Electronic Image Stabilization: Not specified
Built-in IR: No

Available Variants

AXIS P3905-R Mk III RJ45 3.6 mm

Lens: 3.6 mm
Aperture: F2.0
Horizontal FOV: 87.6°
Vertical FOV: 46.7°
Connection: RJ45

This version is suitable where standard Ethernet connectivity is preferred.

AXIS P3905-R Mk III M12 3.6 mm

Lens: 3.6 mm
Aperture: F2.0
Horizontal FOV: 87.6°
Vertical FOV: 46.7°
Connection: M12

The M12 connector is particularly useful in transportation environments where secure and vibration-resistant network connections are required.

AXIS P3905-R Mk III M12 2.8 mm

Lens: 2.8 mm
Aperture: F1.5
Horizontal FOV: 106.6°
Vertical FOV: 56°
Connection: M12

The 2.8 mm version provides a wider field of view and brighter F1.5 aperture, making it especially useful for broad onboard cabin coverage.

Lens & Viewing Performance

Lens Mount: M12
Replaceable Lens: Yes
Digital Pan/Tilt: Yes
Digital Zoom: Yes

The 3.6 mm lens provides a more focused field of view, while the 2.8 mm lens offers wider coverage for monitoring larger cabin areas from a compact mounting position.

Video & Compression

Maximum Resolution: 1920 × 1080
Maximum Frame Rate: 45 fps
H.264: Main & High Profiles
H.265: Supported
Axis Zipstream: Supported

Axis Zipstream helps reduce bandwidth and storage requirements while preserving important surveillance detail.

Traffic Light Mode

The Traffic Light mode is designed for transportation environments where rapidly changing or difficult lighting conditions may affect visibility.

It can help improve image usability when the vehicle moves through varying lighting conditions such as tunnels, stations, bright exterior light or shaded interior areas.

System Integration

Active Tampering Detection: Yes
AXIS Camera Application Platform: Supported
Digital I/O: Not specified
Audio Support: No
Built-in Microphone: No

The camera can therefore participate in event-driven surveillance systems while remaining focused on video monitoring rather than integrated audio capture.

Network, Power & Storage

Power over Ethernet: PoE Class 1
Local Storage: Memory Card Slot
Network Security: HTTPS Encryption
IEEE 802.1X: Supported
Signed OS: Yes

Low PoE power requirements can simplify deployment across transportation networks where power budgets are tightly controlled.

Environmental & Physical Protection

Operating Temperature: -30°C to +55°C
Impact Resistance: IK10
Ingress Protection: IP66 / IP67
Outdoor Ready: Not specified

IK10

Provides strong impact resistance for environments where vibration, accidental contact or vandalism may occur.

IP66

Provides protection against dust and powerful water jets.

IP67

Provides protection against temporary immersion according to applicable test conditions.

These ratings support reliable operation in demanding transportation and onboard environments.

EN50155 Compliance

The AXIS P3905-R Mk III complies with EN50155, a key standard for electronic equipment used on railway vehicles.

This makes it particularly suitable for:

• Trains
• Trams
• Metros
• Rail vehicles
• Public transportation systems

The compliance reflects suitability for environments involving vibration, temperature variation and electrical conditions associated with onboard transportation systems.

Applications & Industries

Railway & Metro: Passenger compartments, driver cabins and internal vehicle areas.

Buses & Coaches: Onboard passenger monitoring and transport security.

Trams & Light Rail: Compact surveillance where vibration-resistant equipment is required.

Emergency Vehicles: Internal monitoring for ambulances and special-purpose vehicles.

Public Transportation: General onboard video surveillance and incident review.

Fleet Operations: Vehicle interior monitoring and operational oversight.

Purpose of Use

The AXIS P3905-R Mk III is designed for mobile and transportation environments where a conventional fixed indoor camera may not withstand vibration, impact or demanding operating conditions.

Typical applications include:

• Passenger monitoring
• Driver cabin surveillance
• Onboard incident recording
• Public transport security
• Train and tram surveillance
• Bus interior monitoring
• Fleet safety review
• Event-driven video recording
• Vandal-resistant onboard surveillance
• Low-light passenger-area monitoring

Important Operational Notes

✔ Select the 2.8 mm or 3.6 mm lens according to required field of view.

✔ The 2.8 mm version provides wider coverage and a brighter F1.5 aperture.

✔ M12 variants are better suited where secure vibration-resistant network connections are required.

✔ The camera does not include built-in IR, so sufficient ambient lighting should be available for very dark environments.

✔ Recording at 45 fps can increase bandwidth and storage requirements compared with conventional 25/30 fps recording.

✔ A surveillance-grade memory card should be selected for onboard edge recording.

✔ Installation should follow applicable vehicle, railway and electrical standards.

✔ Audio recording is not supported by this model.

Benefits

✔ Purpose-built for onboard surveillance
✔ EN50155 compliant
✔ Compact and rugged construction
✔ Full HD 1080p image quality
✔ Up to 45 fps video
✔ Lightfinder for low-light performance
✔ Forensic WDR for difficult lighting
✔ Multiple lens and connector variants
✔ Wide-angle 2.8 mm option available
✔ Replaceable M12 lens
✔ Digital pan/tilt and zoom
✔ H.265 and Zipstream optimize storage
✔ IK10 impact resistance
✔ IP66/IP67 environmental protection
✔ Secure network features
✔ Low PoE Class 1 power requirement

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for transportation and onboard CCTV projects
✔ Experience with rugged IP surveillance solutions
✔ Assistance with lens and connectivity selection
✔ Solutions for fleet, rail and public transport deployments
✔ UAE-focused technical and commercial support

FAQ - AXIS P3905-R Mk III

What resolution does AXIS P3905-R Mk III provide?

It provides up to 1920 × 1080 Full HD resolution at up to 45 fps.

What is the difference between the 2.8 mm and 3.6 mm versions?

The 2.8 mm lens provides a wider 106.6° horizontal field of view, while the 3.6 mm lens provides approximately 87.6° horizontal coverage.

What is the difference between RJ45 and M12 versions?

The RJ45 version uses a conventional Ethernet connector, while the M12 versions provide a more secure connector type commonly used in transportation and vibration-prone environments.

Is AXIS P3905-R Mk III suitable for trains?

Yes. The camera complies with EN50155, making it suitable for railway and other onboard transportation applications.

Does it have built-in IR?

No. The camera does not include built-in infrared illumination.

Does it support audio?

No. Audio support and a built-in microphone are not specified for this model.

Does it support H.265?

Yes. The P3905-R Mk III supports H.265, H.264 and Axis Zipstream.

Is the camera vandal resistant?

Yes. It carries an IK10 impact-resistance rating.

What is its environmental protection rating?

The camera is rated IP66 and IP67, providing strong protection against dust, water and demanding onboard conditions.

Does it support local recording?

Yes. A memory card slot is provided for supported edge-storage applications.

Does it support PoE?

Yes. It supports PoE Class 1.
