Dual-sensor 4K network box camera combining wide-angle overview and close-up surveillance with built-in IR and AI-powered analytics

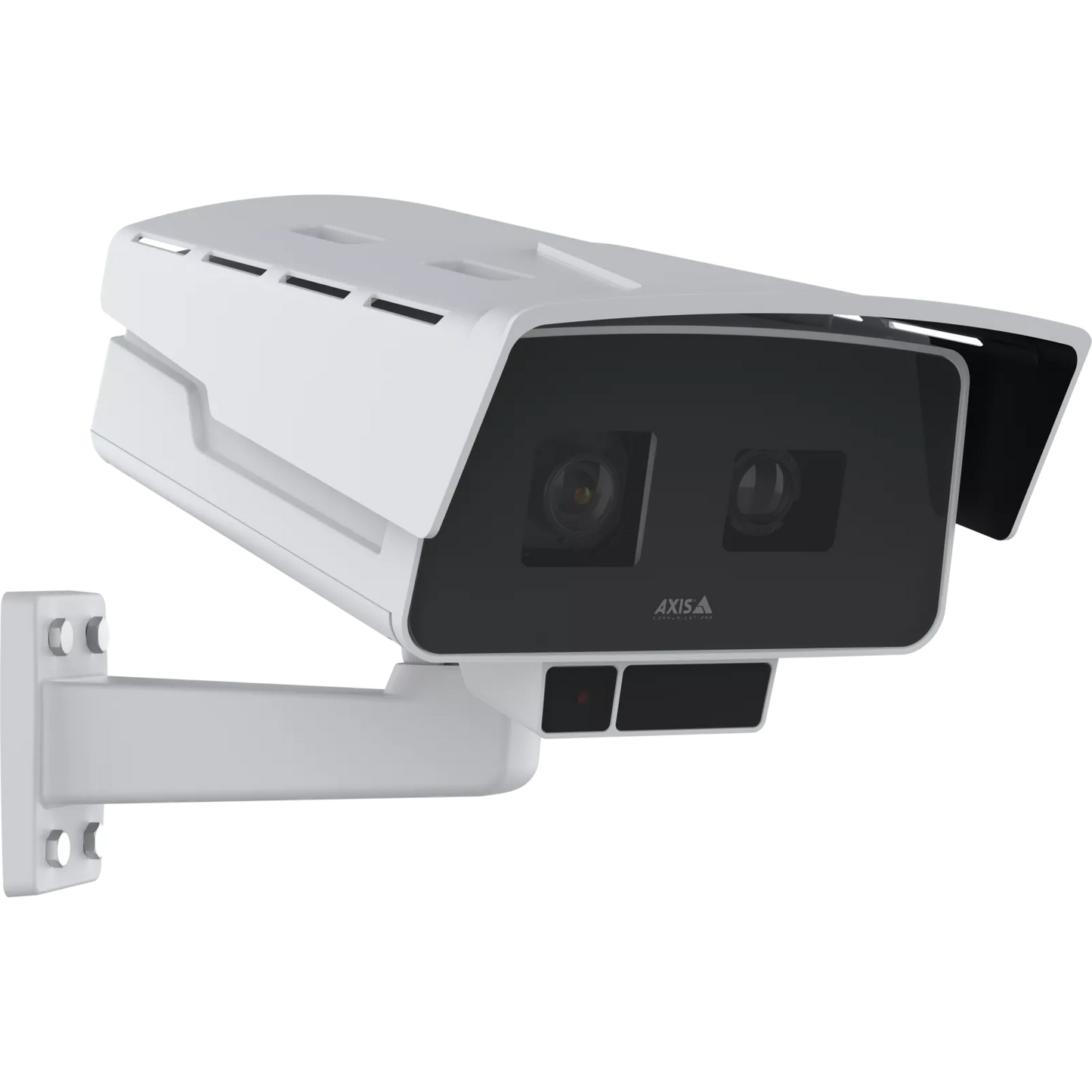

The AXIS P1518-LE Box Camera is a dual-sensor network surveillance camera designed to provide wide-angle overview and close-up views of the same monitored area from a single camera installation.

This architecture can be useful at entrances, gates, property boundaries and other locations where operators need both situational awareness and a more focused view of approaching people or vehicles.

The P1518-LE combines two imaging perspectives with up to 8 MP / 4K image quality, remote zoom and focus, P-iris control, Lightfinder 2.0, Forensic WDR, OptimizedIR, and analytics capabilities including AXIS Object Analytics.

Rather than automatically selecting multiple independent cameras, organizations can evaluate whether the P1518-LE's dual-sensor architecture can provide the required coverage from a single network-camera platform.

Key Features

• Dual-sensor network box camera
• Wide-angle and close-up views of the same scene
• Up to 8 MP / 4K image quality
• Two varifocal lens configurations
• Built-in OptimizedIR
• Lightfinder 2.0
• Forensic WDR
• Remote zoom
• Remote focus
• P-iris control
• IR-corrected lenses
• AI-powered analytics capabilities
• AXIS Object Analytics
• AXIS Scene Metadata
• AXIS Video Motion Detection
• Support for selected additional Axis analytics
• Axis Edge Vault cybersecurity platform
• Single-camera architecture for two viewing perspectives
• Outdoor surveillance applications

Why Two Sensors?

A conventional surveillance installation may require separate cameras when both an overview and a detailed view are needed.

The AXIS P1518-LE uses two sensors to provide these perspectives within one camera platform.

One view can be configured for broader scene coverage while the other can concentrate on a narrower area where additional detail is required.

This may be useful for monitoring:

• Entrances
• Vehicle approaches
• Gates
• Property boundaries
• Perimeters
• Loading areas
• Driveways
• Controlled access points
• Industrial premises

The correct lens positioning and scene design should be determined according to the actual surveillance objective.

Wide-Angle View

The supplied 5.9–13.8 mm varifocal lens provides the broader viewing option.

Focal Length: 5.9–13.8 mm

Maximum Aperture: F1.5–2.9

Horizontal Field of View: 114°–46°

Vertical Field of View: 62°–26°

Minimum Focus Distance: 1 m / 3.3 ft

This lens can be configured to provide a relatively broad overview while retaining the ability to narrow the field of view using optical adjustment.

Close-Up View

The second lens provides a narrower viewing perspective for more concentrated observation.

Focal Length: 10.9–29 mm

Maximum Aperture: F1.7

Horizontal Field of View: 29°–11°

Vertical Field of View: 16°–6°

Minimum Focus Distance: 2.5 m / 8.2 ft

This configuration can be useful where the surveillance design requires a focused view of a particular approach, entrance, lane or other defined area.

Lens Specifications

Wide-Angle Lens

Type: Varifocal

Focal Length: 5.9–13.8 mm

Aperture: F1.5–2.9

Horizontal FOV: 114°–46°

Vertical FOV: 62°–26°

Minimum Focus Distance: 1 m / 3.3 ft

Close-Up Lens

Type: Varifocal

Focal Length: 10.9–29 mm

Aperture: F1.7

Horizontal FOV: 29°–11°

Vertical FOV: 16°–6°

Minimum Focus Distance: 2.5 m / 8.2 ft

Both Lenses

• IR corrected
• Remote zoom
• Remote focus
• P-iris control

4K Image Quality

The AXIS P15 Box Camera Series is designed to deliver image quality up to 8 MP / 4K, supporting surveillance applications where detailed visual information is important.

Resolution alone, however, should not determine camera selection.

Effective surveillance also depends on:

• Lens selection
• Field of view
• Camera positioning
• Subject distance
• Available lighting
• Frame rate
• Compression settings
• Scene movement
• Required identification detail

NEOTECH® recommends evaluating these factors together rather than choosing a camera based solely on megapixel count.

Lightfinder 2.0

Axis Lightfinder 2.0 is intended to improve image usability and color reproduction under challenging low-light conditions.

This can be valuable at entrances, boundaries and outdoor environments where lighting may change considerably throughout the day.

Actual low-light performance depends on the installation environment and camera configuration.

Forensic WDR

Forensic WDR is designed to help preserve useful details in scenes containing both bright and dark areas.

Examples may include:

• Building entrances facing daylight
• Loading areas
• Vehicle entry points
• Gates with strong background lighting
• Mixed indoor/outdoor scenes

WDR performance should be evaluated according to the actual scene rather than treated as a substitute for appropriate camera placement and lighting design.

OptimizedIR

The AXIS P1518-LE includes OptimizedIR for surveillance when ambient lighting is insufficient.

Built-in IR can reduce the need for separate illumination in suitable applications.

The effective IR result depends on factors including:

• Scene geometry
• Subject distance
• Reflective surfaces
• Camera orientation
• Weather conditions
• Installation height

AI-Powered Analytics

The P15 Series supports analytics intended to process useful information directly at the camera.

Included Analytics

AXIS Object Analytics

AI-based analytics for detecting, classifying, tracking and analyzing supported object types according to available configurations.

AXIS Scene Metadata

Provides scene-related metadata that can support search, analysis and other compatible surveillance workflows.

AXIS Video Motion Detection

Provides configurable motion-detection functionality.

Additional Supported Analytics

Your supplied Axis information identifies support for:

AXIS License Plate Verifier

Designed for license-plate recognition applications.

AXIS Speed Monitor

Designed to visualize compatible radar information and provide related insights.

Additional analytics may require separate licenses, compatible devices, suitable scene conditions and specific configuration.

Compatibility should therefore be checked for the intended application.

Axis Edge Vault

The P15 Series incorporates Axis Edge Vault, Axis's hardware-based cybersecurity platform.

It is designed to help protect the device and safeguard sensitive information and cryptographic operations.

Cybersecurity should still be implemented as part of the complete surveillance architecture, including:

• Secure passwords
• User permissions
• Network segmentation
• Firmware management
• Certificate management
• Access control
• VMS security
• Appropriate network policies

No individual camera feature replaces a properly designed cybersecurity strategy.

Purpose of Use

The AXIS P1518-LE is particularly relevant where a surveillance project requires two complementary views of the same general scene.

Instead of using one wide-angle camera and another camera for a narrower perspective, the dual-sensor architecture allows both views to be incorporated into a single camera installation.

Potential applications include:

• Entrance surveillance
• Gate monitoring
• Property boundaries
• Perimeter monitoring
• Vehicle approaches
• Loading areas
• Logistics facilities
• Industrial premises
• Commercial buildings
• Infrastructure sites

Installation Efficiency

The dual-sensor architecture can potentially simplify some installations because both views are provided through one camera platform.

Depending on system design, this can mean:

• One physical camera installation
• One network cable
• One IP address
• One camera to maintain
• One VMS device connection
• Potentially fewer mounting points

Licensing requirements should always be confirmed with the selected VMS and analytics software because licensing terms can vary.

Technical Specifications

Brand: Axis Communications

Series: AXIS P15 Box Camera Series

Model: AXIS P1518-LE

Camera Type: Dual-sensor network box camera

Maximum Image Quality: Up to 8 MP / 4K

Sensor Configuration: Dual sensor

Primary Lens: 5.9–13.8 mm varifocal

Primary Aperture: F1.5–2.9

Primary Horizontal FOV: 114°–46°

Primary Vertical FOV: 62°–26°

Primary Minimum Focus: 1 m

Secondary Lens: 10.9–29 mm varifocal

Secondary Aperture: F1.7

Secondary Horizontal FOV: 29°–11°

Secondary Vertical FOV: 16°–6°

Secondary Minimum Focus: 2.5 m

Remote Zoom: Yes

Remote Focus: Yes

P-Iris: Yes

IR Corrected Lenses: Yes

Built-in IR: Yes, P1518-LE

Lightfinder: Lightfinder 2.0

Wide Dynamic Range: Forensic WDR

Analytics: AI-powered analytics supported

Cybersecurity: Axis Edge Vault

Weight: Approximately 3,850 g / 8.5 lb

Applications

The AXIS P1518-LE may be considered for:

• Security entrances
• Facility gates
• Property fencing
• Perimeter surveillance
• Vehicle entry and exit points
• Logistics yards
• Warehouses
• Industrial facilities
• Commercial premises
• Infrastructure environments
• Parking approaches
• Controlled-access areas

Compatible Microphones

According to the supplied Axis compatibility information, microphone options include:

• AXIS T8351 Mk II Microphone 3.5 mm
• AXIS T8353A Microphone 3.5 mm
• AXIS T8355 Digital Microphone 3.5 mm
• AXIS TU1001-V Microphone
• AXIS TU1001-VE Microphone

Audio recording is subject to local laws, organizational policies and the configuration of the surveillance system.

Compatible Mounting Accessories

Relevant Axis mounting options include:

• AXIS T91B47 Pole Mount
• AXIS T94Q01F Ceiling-and-Column Mount
• AXIS T94R01B Corner Bracket
• AXIS T94V01C Dual Camera Mount
• AXIS TQ1003-E Wall Mount
• AXIS TQ1501-E Crane and Traffic Mount
• AXIS TQ1601-E Conduit Back Box
• AXIS TQ1818-E Positioning Unit

The appropriate mount depends on the installation surface, orientation, environmental conditions and intended camera view.

Power and Network Accessories

Compatible Axis ecosystem products identified in your supplied information include:

• AXIS 30 W Midspan
• AXIS 30 W Midspan AC/DC
• AXIS 30 W Outdoor Midspan
• AXIS 90 W Midspan AC/DC
• AXIS T8061 Ethernet Surge Protector
• AXIS T8154 60 W SFP Midspan
• AXIS TU8001 Ethernet Surge Protector
• AXIS TU8002-E 90 W Midspan
• AXIS TU8004 90 W Midspan
• AXIS TU8006 60 W Midspan
• AXIS TU8010 2-port PoE Extender
• AXIS TU8011 4-port PoE Extender

Power compatibility should be verified against the exact camera configuration before ordering accessories.

Compatible Network Switches

Potential Axis network infrastructure options include:

• AXIS D8004 Unmanaged PoE Switch
• AXIS D8208-R Industrial PoE++ Switch
• AXIS D8248 Managed PoE++ Switch
• AXIS T8504-E Outdoor PoE Switch
• AXIS T8504-R Industrial PoE Switch
• AXIS T8508 PoE+ Network Switch
• AXIS T8516 PoE+ Network Switch
• AXIS T8524 PoE+ Network Switch

Switch selection should be based on required port count, total PoE budget, network architecture and environmental requirements.

Related AXIS Recording Ecosystem

For a smaller Axis surveillance system, the AXIS S3008 Mk II 8-channel Recorder may be relevant where its channel capacity, storage, PoE budget and software architecture satisfy the installation requirements.

Larger installations should be designed around the appropriate recording server, network and storage requirements rather than assuming one recorder is suitable for every deployment.

Things to Verify Before Ordering

Before selecting the AXIS P1518-LE, verify:

• Exact model required
• P1518-E versus P1518-LE
• Required wide-angle coverage
• Required close-up viewing distance
• Camera mounting position
• Required identification detail
• Lighting conditions
• IR requirement
• Analytics requirements
• VMS compatibility
• Analytics licensing
• Network bandwidth
• Recording storage requirement
• PoE power requirement
• Required mounting accessories
• Surge protection requirements
• Environmental conditions
• Local requirements governing video or audio surveillance

Who Should Consider the AXIS P1518-LE?

This camera may be worth considering when the project requires both:

a broad overview of an area

and

a narrower, more detailed view of an important approach or location.

The dual-sensor design is particularly relevant when reducing the number of separately installed cameras, cables and network endpoints is beneficial to the system architecture.

However, two independent cameras may still be preferable where the required views are geographically separated or require substantially different mounting positions.

Why NEOTECH® UAE

NEOTECH® approaches surveillance equipment from an education-first perspective.

Rather than recommending a camera based only on resolution or specifications, we encourage customers to consider the complete requirement: scene, distance, field of view, lighting, analytics, storage, network infrastructure and mounting position.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS P1518-LE

Q: What is the AXIS P1518-LE?
A: It is a dual-sensor network box camera designed to provide wide-angle and close-up views of the same general surveillance scene.

Q: Is the AXIS P1518-LE a 4K camera?
A: The supplied Axis information states that the P15 Series provides image quality up to 8 MP / 4K.

Q: Why does the P1518-LE have two lenses?
A: The two-lens configuration allows one sensor to provide a wider overview while the other provides a narrower close-up perspective.

Q: What is the wide-angle lens range?
A: 5.9–13.8 mm with a horizontal field of view from 114° to 46°.

Q: What is the close-up lens range?
A: 10.9–29 mm with a horizontal field of view from 29° to 11°.

Q: Does the P1518-LE have remote zoom and focus?
A: Yes. Both supplied lens configurations support remote zoom and focus.

Q: Does it support P-iris?
A: Yes. Both lenses support P-iris control.

Q: Does the AXIS P1518-LE include IR?
A: Yes. The supplied information identifies the P1518-LE as the model with OptimizedIR.

Q: Does it support low-light surveillance?
A: Yes. The supplied information identifies Lightfinder 2.0 and Forensic WDR for challenging lighting conditions.

Q: Does the camera support AI analytics?
A: Yes. The supplied information identifies AI-powered analytics, including AXIS Object Analytics and AXIS Scene Metadata.

Q: Can it support license plate recognition?
A: AXIS License Plate Verifier is listed as a supported analytic. Suitability still depends on camera placement, viewing angle, distance, vehicle speed, lighting and other application requirements.

Q: Is AXIS Speed Monitor supported?
A: Yes, it is listed among the supported analytics in the supplied Axis information. Appropriate radar integration and configuration may also be required.

Q: What does the camera weigh?
A: Approximately 3,850 g / 8.5 lb according to the supplied specifications.

Q: Can the camera be used at entrances?
A: Yes. Entrances are one of the applications specifically suited to the dual-view concept because an overview and closer view can be useful simultaneously.

Q: Should I choose P1518-E or P1518-LE?
A: The exact requirement should be checked before ordering. The supplied information specifically identifies the P1518-LE as providing built-in IR capability.

Related Products

• AXIS S3008 Mk II 8-Channel Recorder
• AXIS T6101 Mk II Audio and I/O Interface
• AXIS T8129 PoE Extender
• AXIS TQ1003-E Wall Mount
• AXIS T91B47 Pole Mount
• AXIS T94R01B Corner Bracket
• AXIS TQ1818-E Positioning Unit
• AXIS 30 W Outdoor Midspan
• AXIS D8208-R Industrial PoE++ Switch
• AXIS D8248 Managed PoE++ Switch

Helpful Internal Links

Where the corresponding NEOTECH® pages are live:

• Axis Network Cameras
• Axis Box Cameras
• Axis Network Video Recorders
• Axis Camera Mounts
• Axis PoE Accessories
• Network Surveillance Equipment
• NEOTECH® Learning Center
• Shipping Policy
• Returns Policy

Delivery – UAE

Service Area: United Arab Emirates

Order Cut-Off: 14:00 GST

Handling Time: 1–2 business days

Transit Time: 3–5 business days

Estimated Delivery: 4–7 business days

Standard Shipping: Free

Stock and the exact Axis model/part number should be confirmed before ordering.

Contact NEOTECH® UAE

For availability, quotation or product compatibility information:

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

When requesting assistance, providing the intended viewing distance, installation location, required field of view and surveillance objective can help identify whether this dual-sensor configuration is appropriate.

There is absolutely no obligation or pressure to purchase.

Disclaimer

Axis®, AXIS P1518-LE, Lightfinder, Forensic WDR, OptimizedIR, Axis Edge Vault and related product names are trademarks or product identifiers belonging to their respective owners.

NEOTECH® is an independent UAE supplier and does not claim to be an authorized Axis distributor, official representative or partner unless supported by current written documentation.

Technical information on this page is intended to assist product evaluation and should be verified against the current Axis documentation and the exact product variant before procurement, installation or system design.

Camera performance depends on installation conditions including lighting, distance, lens configuration, scene characteristics, network configuration and software settings. Analytics performance is application-dependent and should not be treated as guaranteeing detection, identification or a particular surveillance outcome.

Last Updated: 25 August 2026  (GST, UTC+4)
