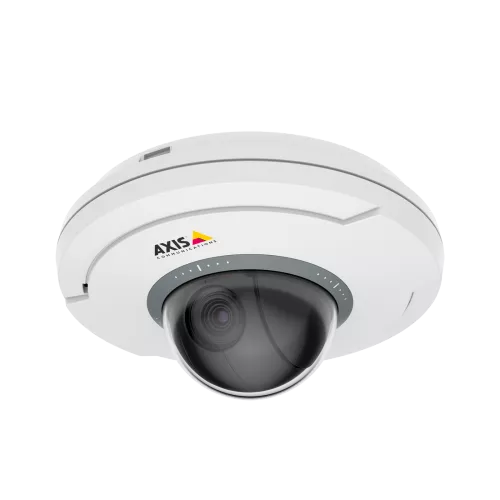

AXIS M5075 02346-001 2 MP Indoor PTZ Network Camera

The AXIS M5075 02346-001 is a compact 2 MP indoor PTZ network camera designed for discreet and flexible surveillance in retail stores, offices, reception areas, commercial premises and other indoor environments.

It combines Full HD 1920 × 1080 video, smooth pan-and-tilt functionality and 5x optical zoom in a lightweight 380 g design. Its 2.2–11.0 mm varifocal lens provides a wide 71° horizontal field of view for general monitoring while allowing operators to zoom into specific areas when closer visual inspection is required.

With Forensic WDR, autofocus, day/night functionality, built-in microphone, local memory card storage, PoE and Axis Zipstream, the M5075 provides a practical all-in-one solution for professional indoor surveillance.

Key Features

✔ 2 MP / Full HD 1080p video
✔ Up to 50/60 fps
✔ Compact indoor PTZ design
✔ 5x optical & 12x digital zoom
✔ 2.2–11.0 mm varifocal lens
✔ Autofocus
✔ 71°–14° horizontal field of view
✔ Forensic WDR
✔ Day & Night functionality
✔ Built-in microphone & audio support
✔ Local memory card storage
✔ Axis Zipstream technology
✔ H.264 & H.265 video compression
✔ Power over Ethernet (PoE) Class 3
✔ Signed OS & Secure Boot

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS M5075
Part Number: 02346-001
Camera Type: Indoor PTZ Network Camera
Image Sensor: 1/2.8" CMOS
Maximum Resolution: 1920 × 1080 Full HD
Maximum Frame Rate: 50/60 fps
Minimum Illumination – Color: 0.1 lux
Wide Dynamic Range: Forensic WDR
Day/Night Functionality: Yes
Built-in IR / OptimizedIR: No

Lens

Lens: Varifocal 2.2–11.0 mm, F1.4–F2.5
Optical Zoom: 5x
Digital Zoom: 12x
Horizontal FOV: 71°–14°
Vertical FOV: 40°–8°
Focus: Autofocus

Pan, Tilt & Zoom

Pan Range: ±179°
Tilt Range: 90°
Optical Zoom: 5x
Digital Zoom: 12x

The PTZ mechanism allows operators to remotely reposition the camera and zoom into areas of interest rather than relying on a permanently fixed viewing direction.

Video & Compression

Video Resolution: Up to 1920 × 1080
Frame Rate: Up to 50/60 fps
H.264: Baseline, Main & High Profiles
H.265: Supported
Axis Zipstream: Supported

Zipstream helps reduce bandwidth and storage requirements while preserving important forensic details.

Audio & Event Features

Audio Support: Yes
Built-in Microphone: Yes
Audio Detection: Supported
Active Tampering Detection: Supported

The integrated microphone can add audio awareness to supported surveillance applications without requiring a separate microphone installation.

Network, Power & Storage

Network Type: IP Network Camera
Power: Power over Ethernet
PoE Class: Class 3
Local Storage: Memory Card Slot Available

PoE simplifies installation by allowing network connectivity and electrical power to be delivered through the network infrastructure.

Security

Signed OS: Yes
Secure Boot: Yes

These security mechanisms help verify trusted firmware and protect the integrity of the camera during startup and operation.

Physical & Environmental

Weight: 380 g / 0.84 lb
Operating Temperature: 0°C to +45°C
IP Rating: IP51
Outdoor Ready: No
Vandal Rating: Not specified
Designed for Repainting: Yes

Applications & Industries

Retail Stores: Monitor sales floors, checkout areas, entrances and other areas from a remotely adjustable camera position.

Offices & Corporate Buildings: Suitable for receptions, lobbies, corridors, meeting areas and shared spaces.

Hotels & Hospitality: Useful for lobby, reception and common-area surveillance.

Education: Suitable for indoor monitoring of school, university and training facility common areas.

Commercial Buildings: Provides flexible PTZ surveillance for entrances, waiting areas and operational spaces.

Small & Medium Business: Compact design makes it suitable where professional IP surveillance is required without installing a larger PTZ camera.

Purpose of Use

The AXIS M5075 is designed for indoor environments where users need the flexibility to remotely pan, tilt and zoom the surveillance view.

The 71° wide-angle position can provide general situational awareness, while the 5x optical zoom allows operators to inspect a smaller area without relying entirely on digital enlargement.

Typical applications include:

• Live security monitoring
• Reception and lobby surveillance
• Retail floor monitoring
• Entrance and exit monitoring
• Indoor incident verification
• Remote area inspection
• Office security
• Customer and visitor area monitoring
• Audio-assisted surveillance
• Local or network-based video recording

Important Operational Notes

✔ Indoor camera: AXIS M5075 is not intended as an outdoor-ready surveillance camera.

✔ No built-in IR: Additional lighting may be necessary when monitoring areas with insufficient ambient light.

✔ IP51 protection: Installation conditions should remain appropriate for the camera's environmental rating.

✔ 5x optical zoom: Optical zoom retains image detail better than relying exclusively on digital zoom.

✔ PoE installation: Verify that the network switch or PoE injector provides the required PoE capability.

✔ Storage planning: Recording duration depends on memory card capacity, resolution, frame rate, compression and scene activity.

✔ Audio use: Local privacy and audio-recording regulations should be considered before enabling audio recording.

Benefits

✔ Compact and discreet PTZ surveillance
✔ Full HD video at up to 50/60 fps
✔ Flexible remote pan, tilt and zoom control
✔ 5x optical zoom for closer inspection
✔ Forensic WDR for difficult lighting situations
✔ Built-in microphone reduces additional hardware requirements
✔ PoE simplifies power and network installation
✔ Local storage provides flexible recording options
✔ H.265 and Zipstream help optimize bandwidth and storage
✔ Suitable for professional indoor surveillance deployments

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for IP camera and network surveillance projects
✔ Assistance with camera and deployment selection
✔ Solutions for retail, commercial and enterprise environments
✔ UAE-focused technical and commercial support
✔ Professional project procurement approach

FAQ - AXIS M5075

What resolution does the AXIS M5075 provide?

The AXIS M5075 provides up to 1920 × 1080 Full HD resolution at up to 50/60 frames per second.

How much optical zoom does it have?

The camera provides 5x optical zoom together with up to 12x digital zoom.

Can the AXIS M5075 pan and tilt remotely?

Yes. It is a PTZ network camera with a ±179° pan range and 90° tilt range, allowing the viewing direction to be controlled remotely.

Does it have a microphone?

Yes. The M5075 has built-in microphone and audio support, including audio detection.

Does the camera have night vision?

It provides day/night functionality, but does not include built-in IR or OptimizedIR. Adequate ambient or external illumination should therefore be considered for dark environments.

Is AXIS M5075 suitable for outdoor installation?

No. The M5075 is designed primarily for indoor applications and is not classified as outdoor-ready.

Does it support memory card recording?

Yes. A local memory card slot is provided for supported edge-storage applications.

Does it support PoE?

Yes. The AXIS M5075 supports Power over Ethernet Class 3, simplifying installation by carrying power and network connectivity through the Ethernet infrastructure.
