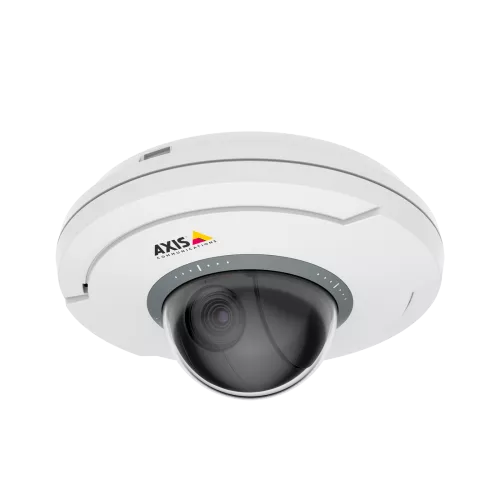

AXIS M5074 Compact Indoor PTZ Network Camera

The AXIS M5074 is a compact indoor PTZ network camera designed for flexible video surveillance in retail stores, offices, reception areas, hotels, educational facilities and other commercial indoor environments.

Its 2.2–11.0 mm varifocal lens combines a wide 71° horizontal field of view with 5x optical zoom, allowing operators to move from general scene monitoring to a closer view of areas of interest. Remote pan, tilt, zoom and autofocus provide greater monitoring flexibility than a conventional fixed camera.

The camera delivers up to 1280 × 720 resolution at 50/60 fps and incorporates Forensic WDR, day/night functionality, H.265/H.264 compression and Axis Zipstream. A built-in microphone, audio detection, local memory card storage and PoE support provide an integrated solution for professional indoor surveillance.

Key Features

✔ 1280 × 720 HD network video
✔ Up to 50/60 fps
✔ Compact indoor PTZ design
✔ 5x optical & 12x digital zoom
✔ 2.2–11.0 mm varifocal lens
✔ Autofocus
✔ 71°–14° horizontal field of view
✔ Forensic WDR
✔ Day & Night functionality
✔ Built-in microphone & audio detection
✔ Local memory card storage
✔ Axis Zipstream technology
✔ H.264 & H.265 video compression
✔ Active tampering detection
✔ PoE Class 3
✔ Signed OS security

Technical Specifications

Camera & Imaging

Brand: Axis Communications
Model: AXIS M5074
International Part Number: 02345-001
India Part Number: 02345-113
Camera Type: Indoor PTZ Network Camera
Image Sensor: 1/2.8" CMOS
Maximum Resolution: 1280 × 720
Maximum Frame Rate: 50/60 fps
Minimum Illumination – Color: 0.1 lux
Wide Dynamic Range: Forensic WDR
Day/Night: Yes
Built-in IR / OptimizedIR: No

Lens & Viewing Area

Lens: Varifocal 2.2–11.0 mm, F1.4–F2.5
Horizontal FOV: 71°–14°
Vertical FOV: 40°–8°
Focus: Autofocus
Optical Zoom: 5x
Digital Zoom: 12x

The wide end of the lens is useful for general room or area monitoring, while the telephoto end allows closer observation of selected areas.

Pan, Tilt & Zoom

Pan Range: ±179°
Tilt Range: 90°
Optical Zoom: 5x
Digital Zoom: 12x
Autofocus: Yes

PTZ control enables operators to remotely change the viewing direction and zoom level according to live surveillance requirements.

Video & Compression

Maximum Video Resolution: 1280 × 720
Maximum Frame Rate: 50/60 fps
H.264: Baseline, Main & High Profiles
H.265: Supported
Axis Zipstream: Supported
AV1: No

Axis Zipstream helps reduce network bandwidth and recording storage requirements while preserving important surveillance details.

Audio & Events

Audio Support: Yes
Built-in Microphone: Yes
Audio Detection: Yes
Active Tampering: Yes
Alarm I/O: Not available

The integrated microphone adds audio awareness without requiring a separate microphone for supported applications.

Network, Storage & Power

Network Camera: IP-Based
Power: Power over Ethernet
PoE Class: Class 3
Local Storage: Memory Card Slot Available

PoE allows power and network connectivity to be supplied through the network infrastructure, helping simplify installation.

Security

Signed OS: Yes
Secure Boot: Not specified
TPM: Not specified

Signed OS helps ensure that only trusted Axis firmware is installed and executed on the device.

Physical & Environmental

IP Rating: IP51
Operating Temperature: 0°C to +45°C
Outdoor Ready: No
Vandal Rating: Not specified
Designed for Repainting: Yes

Applications & Industries

Retail Stores: Sales-floor monitoring, checkout areas, entrances and customer-facing spaces.

Offices & Corporate Buildings: Reception areas, lobbies, corridors, shared spaces and internal access points.

Hotels & Hospitality: Lobby, reception, lounge and common-area surveillance.

Education: Indoor monitoring for schools, universities, libraries and training facilities.

Commercial Buildings: Flexible surveillance of entrances, waiting areas and operational spaces.

Small & Medium Businesses: Compact PTZ monitoring where a larger professional PTZ installation may not be necessary.

Purpose of Use

The AXIS M5074 is intended for indoor surveillance applications where a remotely adjustable viewing direction and optical zoom provide greater flexibility than a fixed camera.

Typical uses include:

• Live security monitoring
• Retail floor surveillance
• Reception and lobby monitoring
• Office security
• Entrance and exit monitoring
• Indoor incident verification
• Remote visual inspection
• Customer and visitor area monitoring
• Audio-assisted surveillance
• Local edge recording

Its 71° wide viewing position can provide general situational awareness, while 5x optical zoom allows operators to examine a smaller area while retaining optical image detail.

Important Operational Notes

✔ Indoor use: AXIS M5074 is not classified as an outdoor-ready camera.

✔ No built-in IR: The camera does not include integrated IR illumination, so adequate ambient or external lighting should be considered for very dark environments.

✔ 720p resolution: This model has a maximum resolution of 1280 × 720. For applications requiring Full HD 1080p, a higher-resolution model such as the AXIS M5075 may be more appropriate.

✔ IP51 rating: Installation conditions should remain within the environmental protection provided by the camera.

✔ 5x optical zoom: Optical zoom should be used when closer detail is required instead of relying solely on digital enlargement.

✔ PoE: Confirm that the network switch or injector provides suitable PoE Class 3 power.

✔ Audio recording: Applicable privacy and audio-recording regulations should be considered before enabling audio recording.

Benefits

✔ Compact PTZ solution for indoor surveillance
✔ Flexible remote pan, tilt and zoom
✔ 5x optical zoom for closer visual inspection
✔ Smooth video at up to 50/60 fps
✔ Forensic WDR for challenging lighting
✔ Built-in microphone and audio detection
✔ PoE simplifies installation
✔ Local memory card recording support
✔ H.265 and Zipstream optimize bandwidth and storage
✔ Active tampering detection adds operational awareness

Why Choose NEOTECH® UAE

✔ UAE-based security and technology solutions supplier
✔ Professional B2B surveillance product sourcing
✔ Support for IP camera and network surveillance projects
✔ Assistance with camera and deployment selection
✔ Solutions for retail, hospitality and commercial environments
✔ UAE-focused technical and commercial support
✔ Professional project procurement approach

FAQ - AXIS M5074

What is the maximum resolution of the AXIS M5074?

The AXIS M5074 provides up to 1280 × 720 HD video at up to 50/60 frames per second.

How much optical zoom does the M5074 provide?

It offers 5x optical zoom through its 2.2–11.0 mm varifocal lens, along with up to 12x digital zoom.

What is the difference between AXIS M5074 and M5075?

One important difference is resolution. The M5074 provides up to 1280 × 720, while the M5075 provides up to 1920 × 1080 Full HD, making the M5075 preferable when additional image detail is required.

Can the camera pan and tilt remotely?

Yes. The camera provides a ±179° pan range and 90° tilt range, together with remote zoom functionality.

Does AXIS M5074 have a microphone?

Yes. It includes a built-in microphone, audio support and audio detection.

Does the AXIS M5074 have infrared night vision?

No built-in IR or OptimizedIR is specified. The camera supports day/night functionality, but suitable lighting should be considered for surveillance in very dark environments.

Is AXIS M5074 suitable for outdoor use?

No. It is designed for indoor installations and is not classified as outdoor-ready.

Can recordings be stored directly on the camera?

The camera includes a memory card slot for supported local edge-storage configurations.

Does it support PoE?

Yes. The AXIS M5074 supports PoE Class 3, allowing compatible network infrastructure to provide power and data connectivity.
