Compact outdoor-ready 8 MP turret-style network camera with integrated IR, AI-based analytics and Axis Edge Vault cybersecurity.

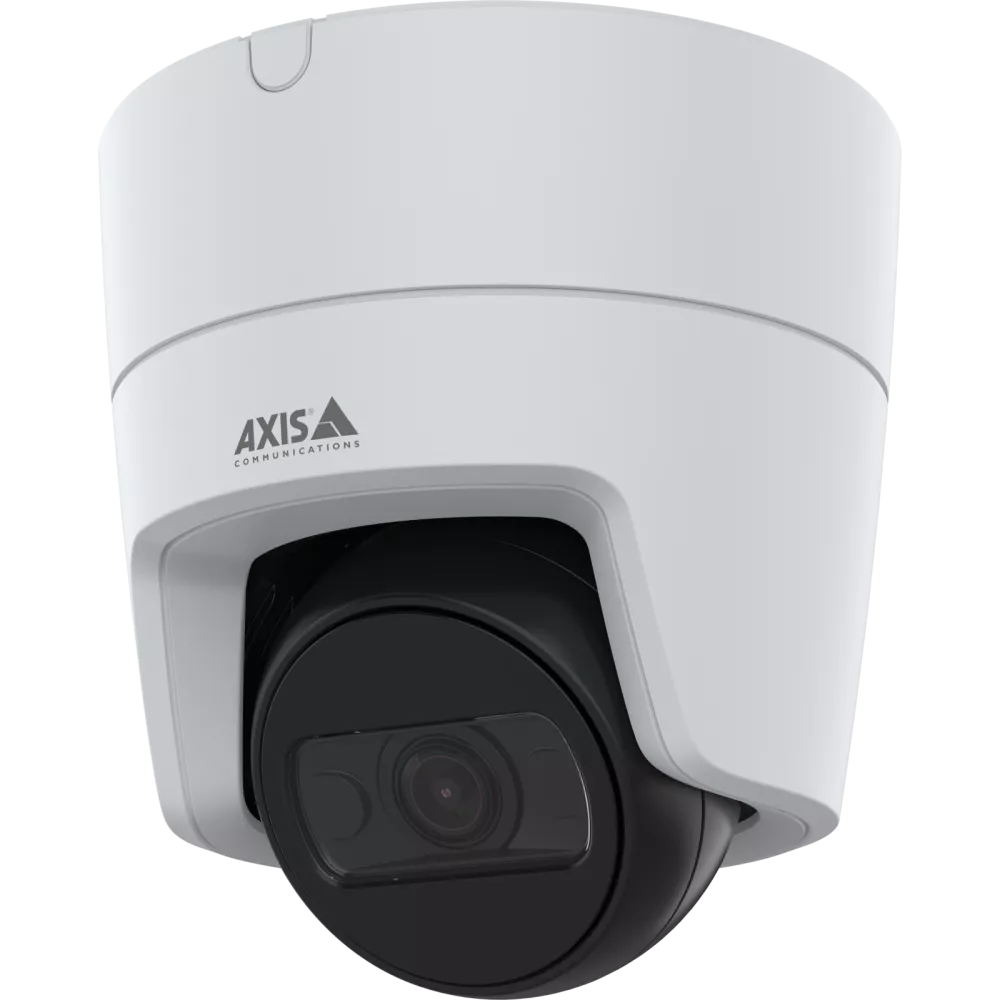

The AXIS M3128-LVE Dome Camera 02920-001 is an AI-powered 8 MP turret-style network camera designed for compact indoor and outdoor video surveillance installations.

It belongs to the AXIS M31-LVE family alongside the AXIS M3125-LVE 2 MP and AXIS M3126-LVE 4 MP models.

The M3128-LVE combines a fixed wide-angle lens, integrated infrared illumination, day/night operation and AI-based video analytics in a compact outdoor-ready enclosure.

For installations where the camera needs to monitor a broad area from relatively short or moderate distances, its 2.9 mm lens and 110° horizontal field of view provide wide scene coverage.

The camera is also IP66 rated for environmental protection and IK08 rated for impact resistance.

Key Features

• 8 MP network camera
• Turret-style dome design
• AI-based video analytics
• 2.9 mm fixed lens
• F2.0 aperture
• 110° horizontal field of view
• 60° vertical field of view
• 0.5 m minimum focus distance
• Fixed focus
• Fixed iris
• IR-corrected lens
• Integrated IR illumination
• Day/night functionality
• Lightfinder
• Wide Dynamic Range
• Axis Zipstream
• H.264 and H.265 support
• PoE connectivity
• Local memory-card storage support
• IP66 environmental protection
• IK08 impact resistance
• Outdoor-ready construction
• Axis Edge Vault cybersecurity
• Signed AXIS OS
• Secure boot
• Secure hardware keystore

Technical Specifications

Brand: Axis Communications

Model: AXIS M3128-LVE

Part number: 02920-001

Camera type: Network dome / turret-style camera

Maximum resolution: 8 MP

Lens: 2.9 mm

Aperture: F2.0

Horizontal field of view: 110°

Vertical field of view: 60°

Minimum focus distance: 0.5 m (1.6 ft)

Lens mount: M12

Focus: Fixed

Iris: Fixed

IR corrected: Yes

Built-in IR: Yes

Day/night functionality: Yes

Lightfinder: Yes

Wide Dynamic Range: Yes

Video compression: H.264 / H.265

Axis Zipstream: Yes

Local storage: Memory-card slot

Power: Power over Ethernet

Outdoor ready: Yes

Ingress protection: IP66

Vandal rating: IK08

Axis Edge Vault: Yes

Signed OS: Yes

Secure boot: Yes

Secure keystore: Secure Element

Weight: Approximately 390 g (0.9 lb)

Variants: Black / White depending on exact model and part number

8 MP Video for Detailed Surveillance

The M3128-LVE is the 8 MP model within this AXIS M31-LVE family.

Higher resolution can provide additional image detail when compared with lower-resolution members of the same family, but resolution should not be considered in isolation.

The useful level of detail at a particular point in the scene also depends on:

Viewing distance

Field of view

Camera placement

Lighting

Movement

Required identification objective

Video settings

For this reason, customers should determine the required surveillance outcome before selecting an 8 MP camera simply because it provides the highest resolution within this family.

2.9 mm Wide-Angle Lens

The camera uses a 2.9 mm F2.0 fixed lens.

Horizontal field of view: 110°

Vertical field of view: 60°

Minimum focus distance: 0.5 m

The wide horizontal view makes the camera suitable for applications where broad scene coverage is important.

Because the lens is fixed focus rather than varifocal, the required camera position and field of view should be checked before installation.

Fixed Lens vs Varifocal Camera

This is an important purchasing consideration.

The M3128-LVE uses a fixed 2.9 mm lens. It does not provide remote optical zoom or remote focus adjustment.

A fixed wide-angle camera can be a practical choice when the required scene is already known and approximately matches its field of view.

If an installation requires substantial optical adjustment after mounting, a compatible Axis camera with a varifocal lens and remote zoom/focus may be more appropriate.

Integrated IR and Day/Night Surveillance

The M3128-LVE includes built-in infrared illumination and supports day/night operation.

Integrated IR can assist the camera in monitoring scenes under low-light or dark conditions without requiring a separate IR illuminator for suitable applications.

Actual nighttime performance depends on factors including:

Camera placement

Subject distance

Scene reflectivity

Obstructions

Ambient lighting

Installation angle

IR requirements should therefore be assessed against the actual location rather than assuming the same nighttime result in every environment.

Lightfinder and WDR

The M31-LVE family incorporates Axis Lightfinder and Wide Dynamic Range imaging technologies.

Lightfinder supports usable imaging in low-light situations, while WDR can help in scenes containing both bright and dark areas.

Such conditions can occur around:

Building entrances

Retail entrances

Windows

Reception areas

Warehouses

Loading areas

Corridors with changing illumination

Actual performance remains dependent on the scene and camera configuration.

AI-Based Video Analytics

The AXIS M3128-LVE is designed to support AI-based video analytics at the edge.

This allows compatible analytics to process relevant video information directly on the camera rather than treating it solely as a video-capture device.

Analytics should always be selected and configured according to the actual monitoring objective.

The presence of AI capability does not mean that every possible analytics application or detection scenario will automatically be supported.

Axis Zipstream

Axis Zipstream is supported together with H.264 and H.265 video compression.

The technology is designed to help manage video bandwidth and storage requirements while retaining important surveillance information.

Actual storage consumption depends on configuration factors such as:

Resolution

Frame rate

Compression settings

Scene activity

Recording schedule

Retention period

Analytics and event configuration

Storage requirements should therefore be calculated for the intended surveillance system.

Power over Ethernet

The camera supports Power over Ethernet (PoE).

PoE allows compatible network infrastructure to carry network data and electrical power through the Ethernet connection, potentially simplifying camera cabling.

The supplied family specifications identify PoE Class 3.

The PoE switch, injector or other power source should be verified for compatibility with the exact camera and complete installation.

Local Storage

The camera includes a memory-card slot for local storage.

Local recording can be useful for certain edge-storage or redundancy strategies, depending on the surveillance design.

Memory-card type, capacity, recording configuration and retention requirements should be verified before deployment.

Outdoor and Impact Protection

The supplied specifications identify the camera as:

Outdoor ready

IP66 rated

IK08 rated

IP66 relates to protection against dust and water ingress under the applicable test conditions.

IK08 indicates resistance to a defined level of mechanical impact.

These ratings do not eliminate the need for correct mounting, cable protection and installation practices.

Built-In Cybersecurity

The AXIS M3128-LVE platform includes several device-security technologies.

These include:

Axis Edge Vault

Signed AXIS OS

Secure boot

Secure keystore

The supplied family information identifies a Secure Element with CC EAL6+ and FIPS 140-3 Level 3.

These features help establish device-level protection, but surveillance cybersecurity should also include appropriate:

Network architecture

User permissions

Password management

Firmware maintenance

VMS security

Remote-access controls

Recording protection

AXIS M31-LVE Family

Customers comparing this camera may also encounter two related models:

AXIS M3125-LVE

Resolution: 2 MP

Known family part numbers supplied:

White: 02916-001

Black: 02917-001

AXIS M3126-LVE

Resolution: 4 MP

Part number supplied: 02918-001

AXIS M3128-LVE

Resolution: 8 MP

Part number supplied: 02920-001

The exact resolution, color, regional SKU and other specifications should be checked against the required part number before ordering.

Applications

The AXIS M3128-LVE may be considered for:

Retail stores

Commercial premises

Office environments

Building entrances

Reception areas

Warehouses

Indoor common areas

Covered outdoor areas

Building perimeter locations

Logistics facilities

Public facilities

General professional video surveillance

Suitability depends on the viewing distance, field of view, lighting and required level of detail.

Purpose of Use

The M3128-LVE is intended for organizations requiring a compact, wide-angle 8 MP network camera with integrated IR and intelligent edge capabilities.

Its fixed wide-angle lens can be particularly useful where the required scene is predictable and does not require optical zoom adjustment.

Compatibility

Before integrating the AXIS M3128-LVE into an existing surveillance environment, verify:

PoE infrastructure

Network capacity

Video management system compatibility

Required video codecs

Recording server or NVR requirements

Memory-card requirements

Analytics requirements

Mounting arrangement

Cybersecurity policies

Bandwidth and retention requirements

Things to Verify Before Ordering

Confirm the exact model is AXIS M3128-LVE.

Confirm exact part number 02920-001.

Confirm the required black or white variant.

Verify regional SKU requirements.

Confirm that 8 MP resolution is required.

Verify that the fixed 2.9 mm lens is appropriate.

Confirm the 110° horizontal field of view suits the scene.

Check the required viewing and identification distance.

Verify low-light and IR requirements.

Confirm mounting height and angle.

Check PoE availability.

Confirm network bandwidth.

Calculate storage requirements.

Verify VMS compatibility.

Check analytics requirements.

Confirm required mounting accessories.

Verify whether local memory-card recording is needed.

Who Should Consider the AXIS M3128-LVE?

The M3128-LVE may suit customers requiring high-resolution, wide-area surveillance from a compact fixed camera.

It should be considered where the 110° horizontal field of view matches the required scene and optical zoom is unnecessary.

For applications requiring a narrower view, adjustable focal length or remote optical adjustment, a varifocal Axis camera may be a more appropriate choice.

Why NEOTECH® UAE?

NEOTECH® encourages customers to select surveillance cameras based on the actual viewing requirement, rather than megapixel count alone.

For the AXIS M3128-LVE, customers should particularly verify whether its 8 MP resolution, fixed 2.9 mm lens, 110° field of view, integrated IR and analytics capabilities match the intended environment.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the required viewing distance, field of view, lighting, analytics and system compatibility before ordering.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates.

Availability, exact part number, regional variant and any required accessories should be confirmed before ordering.

FAQ - AXIS M3128-LVE

Q: What resolution is the AXIS M3128-LVE?
A: The AXIS M3128-LVE is the 8 MP model in this M31-LVE family.

Q: What is AXIS M3128-LVE 02920-001?
A: 02920-001 is the supplied part number for the AXIS M3128-LVE 8 MP turret-style network camera.

Q: What lens does the M3128-LVE use?
A: The supplied specifications identify a 2.9 mm F2.0 fixed lens.

Q: What is its horizontal field of view?
A: The specified horizontal field of view is 110°.

Q: Does the M3128-LVE have optical zoom?
A: The supplied specification identifies a fixed-focus, fixed-iris 2.9 mm lens and does not identify remote zoom.

Q: Does AXIS M3128-LVE have built-in IR?
A: Yes. Built-in IR and day/night functionality are identified for this camera family.

Q: Is the camera suitable for outdoor installation?
A: Yes. The supplied specifications identify it as outdoor ready with an IP66 rating. Installation requirements should still be followed.

Q: Is it vandal resistant?
A: The supplied specifications identify an IK08 impact rating.

Q: Does the camera support H.265?
A: Yes. H.264, H.265 and Axis Zipstream are identified in the supplied specifications.

Q: Does it support local recording?
A: A local memory-card slot is identified.

Q: What is the difference between M3125-LVE, M3126-LVE and M3128-LVE?
A: One important distinction is resolution: M3125-LVE is 2 MP, M3126-LVE is 4 MP and M3128-LVE is 8 MP. Exact specifications and SKUs should be checked individually before choosing between them.
