AI-based 4-channel modular camera main unit for high-vibration environments with FAKRA connectors, edge analytics and ignition-controlled shutdown

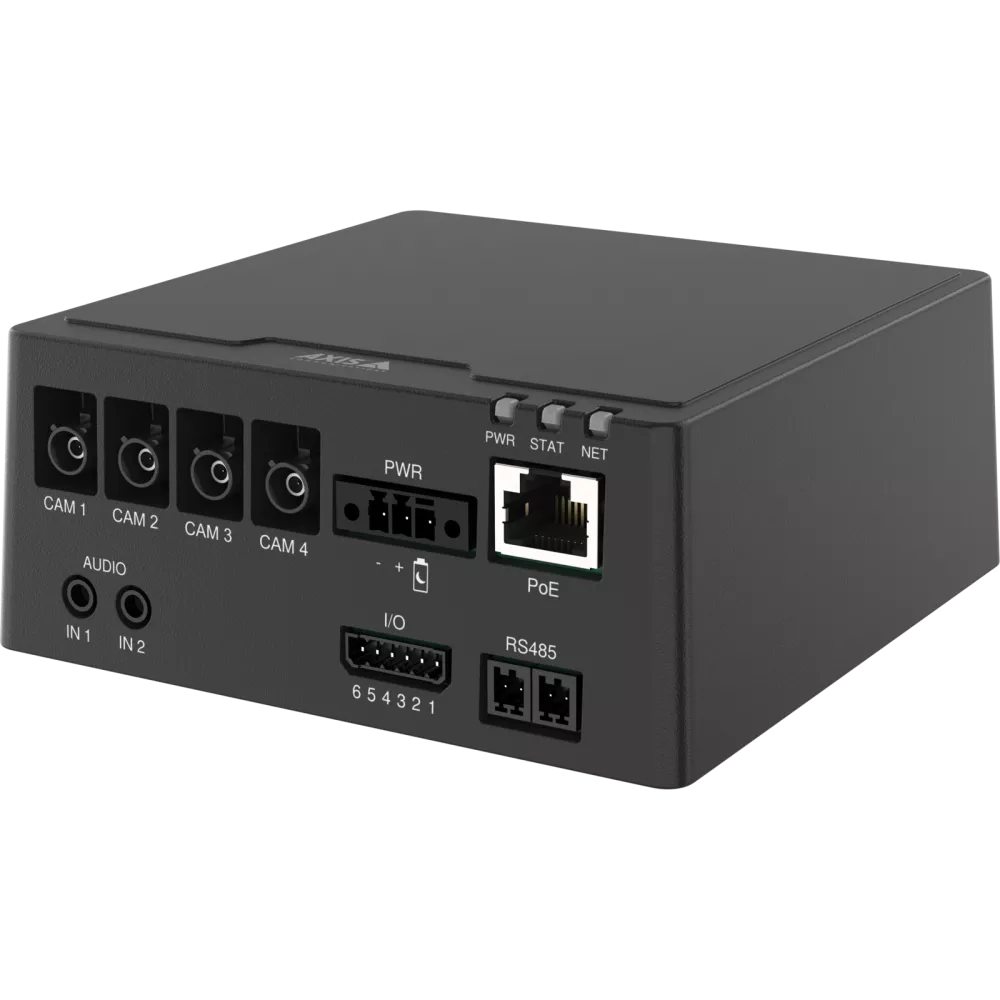

The AXIS F9114-R Mk II Main Unit is a rugged 4-channel modular camera main unit designed for applications where multiple remote sensor units need to connect to one central processing device.

It supports up to four compatible AXIS F-series sensor units simultaneously, depending on the selected sensor combination and system design.

The F9114-R Mk II is intended for high-vibration environments and uses ruggedized FAKRA connectors for secure sensor connections. It also includes a deep learning processing unit for supported edge analytics, Axis Edge Vault cybersecurity and ignition-control functionality for vehicle installations.

This product is a main unit only. Compatible sensor units and connection cables are required separately unless explicitly included in a specific bundle.

Key Features

• 4-channel modular camera main unit
• Supports up to four compatible sensor units
• Up to 4K resolution on supported channels
• Up to 12/15 fps per channel at 4K
• Designed for high-vibration environments
• Ruggedized FAKRA sensor connectors
• Deep learning processing unit
• AXIS Object Analytics preinstalled
• AXIS Scene Metadata
• AXIS Sensor Metrics Dashboard
• AXIS Video Motion Detection
• Axis Edge Vault hardware-based cybersecurity
• FIPS 140-2 Level 2 certified secure key storage and operations
• Ignition control with controlled shutdown
• H.264 and H.265 support
• Axis Zipstream
• Storage-profile functionality
• Integrated accelerometer
• Support for external Modbus sensors and GPS devices
• Built-in USB port prepared for supported applications
• Suitable for vehicle and transportation deployments

Exact Part Numbers

Brand: Axis Communications
Model: AXIS F9114-R Mk II Main Unit

Part Number: 02999-001
Regional Part Number: 02999-113
8-Piece Pack: 02999-021

Weight: 680 g (1.5 lb)

Customers should verify the required regional configuration and pack quantity before ordering.

4-Channel Modular Architecture

The AXIS F9114-R Mk II supports up to four compatible sensor units connected to one main unit.

This allows a modular surveillance system to place sensor units in different positions while centralizing processing, networking and analytics within the main unit.

Potential benefits of this architecture include:

• Reduced space around the visible sensor
• Centralized processing
• Flexible sensor placement
• Mixed sensor combinations
• Multi-view coverage using one main unit
• Simplified integration in vehicles and machinery

The exact combination of sensors should be checked against Axis compatibility guidance.

Video Capability

The main unit supports up to 4K on four channels at 12/15 fps per channel, depending on sensor and configuration.

This allows multiple high-resolution sensor feeds to be processed simultaneously through one unit.

Actual performance depends on:

• Sensor model
• Resolution
• Frame rate
• Analytics
• Compression settings
• Number of active channels
• Storage configuration

AI and Deep Learning Processing

The F9114-R Mk II includes a Deep Learning Processing Unit (DLPU).

This allows supported analytics to run directly on the device rather than relying only on external servers.

Included analytics and metadata functions include:

• AXIS Object Analytics
• AXIS Scene Metadata
• AXIS Sensor Metrics Dashboard
• AXIS Video Motion Detection

These functions can support detection, classification, tracking and metadata generation depending on configuration and scene conditions.

AXIS Object Analytics

AXIS Object Analytics is preinstalled.

Depending on the configured scenario, it can support:

• Human detection
• Vehicle detection
• Vehicle-type classification
• Tracking
• Counting

Performance depends on scene conditions, sensor placement and analytics configuration.

AXIS Sensor Metrics Dashboard

The F9114-R Mk II includes AXIS Sensor Metrics Dashboard.

This can gather data from connected sources such as:

• Integrated accelerometer
• External Modbus sensors
• GPS devices

This is particularly relevant in transportation or vehicle-based installations where video and sensor data may need to be considered together.

Designed for High-Vibration Environments

The F9114-R Mk II is specifically designed for installations exposed to shock and vibration.

Its rugged design and FAKRA connectors help maintain secure connections between the main unit and compatible sensor units.

This makes it relevant for:

• Buses
• Emergency vehicles
• Transportation fleets
• Machinery
• Industrial equipment
• Mobile surveillance systems

The complete installation should still follow the appropriate mounting, cabling and power requirements.

Ignition Control with Controlled Shutdown

One of the key vehicle-oriented features is ignition control with controlled shutdown.

When integrated correctly in a vehicle, this allows the main unit to respond to vehicle ignition state and shut down in a controlled way.

This helps reduce the risk of unnecessary battery drain when the vehicle is not operating.

The actual vehicle-power integration should be planned according to the relevant installation requirements.

Axis Edge Vault

The F9114-R Mk II incorporates Axis Edge Vault, a hardware-based cybersecurity platform.

The supplied product information also identifies:

• Secure cryptographic key storage
• FIPS 140-2 Level 2 certification
• Protection of sensitive device information

Cybersecurity still depends on the complete deployment, including firmware, network design, credentials, access control and system administration.

Zipstream and Video Compression

The main unit supports:

• H.264
• H.265
• Axis Zipstream

Zipstream is designed to reduce bandwidth and storage requirements while preserving important surveillance information.

Actual savings depend on:

• Scene activity
• Resolution
• Frame rate
• Number of channels
• Compression settings
• Retention period

Compatible Sensor Units

The AXIS F9114-R Mk II is compatible with a range of AXIS F-series sensors.

AXIS F2105-RE Standard Sensor

1080p discreet standard sensor.

AXIS F2107-RE Standard Sensor

5 MP discreet standard sensor.

AXIS F2108 Standard Sensor

4K indoor compact standard sensor.

AXIS F2115-R Varifocal Sensor

1080p discreet varifocal sensor.

AXIS F2135-RE Fisheye Sensor

1080p fisheye sensor.

AXIS F2137-RE Fisheye Sensor

5 MP fisheye sensor.

AXIS F4105-LRE Dome Sensor

Discreet mini dome with IR.

AXIS F4105-SLRE Dome Sensor

Stainless-steel mini dome with IR.

AXIS F4108 Dome Sensor

4K indoor ultra-discreet dome sensor.

AXIS F7225-RE Pinhole Sensor

Extremely discreet pinhole sensor.

The exact supported combinations should be verified before finalizing the system.

Related Required Hardware

Depending on the selected sensor, related hardware can include:

• AXIS TU6007-E Cable
• AXIS TU6004-E Cable
• AXIS TU6005 Plenum Cable
• AXIS F21 Sensor Units
• AXIS F41 Sensor Units
• AXIS F7225-RE Pinhole Sensor

Cable type and length should be selected according to sensor and installation requirements.

Applications

The AXIS F9114-R Mk II may be considered for:

• Bus surveillance
• Emergency vehicles
• Fleet video systems
• Public transportation
• Industrial machinery
• High-vibration equipment
• Multi-sensor vehicle monitoring
• Mobile security systems
• Embedded surveillance
• Multi-camera installations requiring centralized processing

Purpose of Use

The F9114-R Mk II is intended for systems where several small remote sensor units need to connect to one rugged main unit.

It is particularly useful where:

• Sensor space is limited
• Several viewpoints are required
• Shock and vibration are present
• Vehicle ignition integration is needed
• Edge analytics are required
• A modular camera architecture is preferred

Things to Verify Before Ordering

Before ordering, confirm:

• Exact part number
• 02999-001, 02999-113 or 02999-021
• Required number of channels
• Selected sensor units
• Sensor compatibility
• Required FAKRA cables
• Cable type and length
• Resolution requirements
• Frame-rate requirements
• Vehicle or machinery environment
• Ignition-control requirements
• GPS or Modbus sensor requirements
• Analytics requirements
• Storage requirements
• VMS compatibility
• Power architecture

This product should not be selected independently from the sensor and cable configuration.

Who Should Consider the AXIS F9114-R Mk II?

This main unit may be suitable for:

• Vehicle system integrators
• Public transportation operators
• Emergency-vehicle integrators
• Industrial system designers
• OEM machine builders
• Fleet surveillance applications
• Organizations requiring four-channel modular video capture

For simple single-camera applications, a conventional standalone network camera may be more appropriate.

Why NEOTECH® UAE

NEOTECH® focuses on correct system-level identification for modular surveillance products.

For the AXIS F9114-R Mk II, that means checking the main unit, sensor models, cable types, channel requirements and installation environment together.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS F9114-R Mk II

Q: What is the AXIS F9114-R Mk II?
A: It is a rugged 4-channel modular camera main unit designed for use with compatible AXIS F-series sensor units.

Q: How many sensors can it support?
A: It can support up to four compatible sensor units simultaneously, depending on configuration.

Q: What is part number 02999-001?
A: It identifies the standard AXIS F9114-R Mk II Main Unit.

Q: What is part number 02999-021?
A: It identifies an 8-piece pack of AXIS F9114-R Mk II Main Units.

Q: Is 02999-113 the same model?
A: It is a regional part-number variant of the AXIS F9114-R Mk II.

Q: Can it support 4K video?
A: Yes. The supplied specification states up to 4K on four channels at 12/15 fps per channel.

Q: Is the F9114-R Mk II suitable for vehicles?
A: Yes. It is specifically designed for high-vibration environments and includes ignition-control functionality.

Q: Does it include AI analytics?
A: Yes. It includes a deep learning processing unit and supported analytics such as AXIS Object Analytics.

Q: Does it include the camera sensors?
A: No. This product is the main unit. Compatible sensor units are separate unless explicitly included in a bundle.

Q: Which sensor units are compatible?
A: Compatible examples include F2105-RE, F2107-RE, F2108, F2115-R, F2135-RE, F2137-RE, F4105-LRE, F4105-SLRE, F4108 and F7225-RE.
