Discreet 5 MP fisheye sensor unit with 185° horizontal field of view for compatible AXIS F91 Main Units

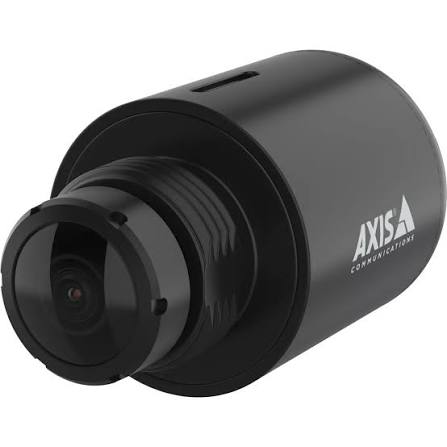

The AXIS F2137-RE Fisheye Sensor is a compact 5 MP sensor unit designed for discreet panoramic monitoring as part of the AXIS F modular camera system.

Featuring a 1.98 mm fixed fisheye lens and 185° horizontal field of view, the sensor provides wide-area coverage from a small cylindrical form factor. Its separated sensor architecture allows the sensor to be positioned where video needs to be captured while a compatible AXIS F91 Main Unit is installed separately.

Designed for demanding environments, the F2137-RE operates from -40°C to 60°C and carries IP66, IP67 and IP6K9K ratings. Its rugged construction and SMA connection also make it suitable for applications involving vehicles, machinery and other installations exposed to shock or vibration.

Important: AXIS F2137-RE is a sensor unit, not a standalone network camera. A compatible AXIS F91 Main Unit and suitable cable are required for operation.

Key Features

• 5 MP fisheye sensor unit
• 185° horizontal field of view
• 125° vertical field of view
• 1/2.78" progressive scan RGB CMOS sensor
• 1.98 mm fixed focal length
• F2.0 aperture
• 0.3 m minimum focus distance
• Compact cylindrical sensor design
• SMA connector
• IP66 rated
• IP67 rated
• IP6K9K rated
• Operating temperature from -40°C to 60°C
• Suitable for compatible vehicle and machinery installations
• Designed for AXIS F91 Main Units
• Compatible with other F21-series mounting accessories as specified by Axis

Technical Specifications

Brand: Axis Communications
Model: AXIS F2137-RE
Product Type: Fisheye sensor unit
Part Number: 02869-001
Multipack Part Number: 02869-021 — 8 units

Image Sensor: 1/2.78" progressive scan RGB CMOS
Pixel Size: 2.0 µm
Resolution: 5 MP

Lens: Fixed focal
Focal Length: 1.98 mm
Aperture: F2.0
Lens Mount: M12
Iris: Fixed

Horizontal Field of View: 185°
Vertical Field of View: 125°
Minimum Focus Distance: 0.3 m (1.0 ft)

Connector: SMA

Typical Power Consumption: 1 W
Maximum Power Consumption: 1.8 W

Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 10–100% RH, non-condensing

Storage Temperature: -40°C to 65°C (-40°F to 149°F)
Storage Humidity: 5–95% RH, non-condensing

Length: 58 mm (2.28 in)
Diameter: 29.8 mm (1.2 in)
Weight: 54 g (0.1 lb)

Environmental Ratings: IP66 / IP67 / IP6K9K

Sustainability: PVC and BFR/CFR free

185° Fisheye Coverage

The 185° horizontal field of view is one of the defining characteristics of the AXIS F2137-RE.

Combined with its 125° vertical field of view, the fisheye lens allows a single compact sensor to capture a broad scene.

This can be useful where wide visual coverage is required but installation space or visibility of the camera hardware needs to remain limited.

Actual scene coverage will depend on sensor placement, orientation and the physical environment.

Discreet Modular Camera Design

Unlike a conventional network camera containing the imaging sensor, processing electronics and network interface in one housing, the AXIS F2137-RE forms part of a modular camera architecture.

The small sensor unit can be installed separately from the compatible main unit.

This architecture may be useful where:

• Installation space around the lens is limited
• A discreet camera presence is preferred
• The processing unit needs to be installed elsewhere
• Several sensor positions need to connect to a compatible multi-channel main unit
• Vehicle or machinery integration is required

Compatible AXIS F91 Main Units

Axis identifies the following compatible main units for the F2137-RE:

AXIS F9104-B Mk II Main Unit

AI-based 4-channel barebone main unit designed for integration applications.

AXIS F9111-R Mk II Main Unit

AI-based single-channel main unit designed for high-vibration environments.

AXIS F9114-B Mk II Main Unit

AI-based 4-channel barebone main unit with I/O ports.

AXIS F9114-R Mk II Main Unit

AI-based 4-channel main unit designed for high-vibration environments.

The appropriate main unit should be selected according to the required number of sensor channels, installation environment and system functionality.

Required Hardware

Depending on the installation, the AXIS F2137-RE requires compatible components including:

• Compatible AXIS F91 Main Unit
• AXIS TU6004-E Cable
• AXIS TU6005 Plenum Cable
• AXIS TU6007-E Cable

The required cable type and length should be determined before ordering.

Optional Accessory

AXIS TU6002 Right-Angle SMA Adapter

This accessory may be considered where installation geometry requires a right-angle SMA connection.

Compatibility and installation requirements should be verified before ordering.

Applications

The AXIS F2137-RE may be considered for applications such as:

• Vehicle video monitoring
• Public transportation
• Machinery monitoring
• Industrial equipment
• Compact surveillance installations
• Discreet indoor or outdoor monitoring
• Wide-area observation
• Embedded camera installations
• Multi-sensor surveillance systems

Suitability depends on the complete system design and installation environment.

Rugged Environmental Design

The F2137-RE is designed for operation under challenging environmental conditions.

Its specified protection includes:

IP66 — protection appropriate to the product's rated enclosure conditions.

IP67 — protection appropriate to the product's rated temporary water-immersion conditions.

IP6K9K — protection intended for demanding high-pressure/high-temperature water exposure under the applicable test conditions.

These ratings should be considered together with correct installation, cabling and mounting practices.

Vehicle and Machinery Applications

Axis specifically identifies the F2137-RE as a sensor that can be installed in vehicles and machinery.

The compact form factor, rugged design, SMA connector and broad operating-temperature range can make the sensor useful where conventional camera housings would be impractical.

The complete installation should still be evaluated for:

• Vibration
• Cable routing
• Sensor mounting
• Main-unit placement
• Power requirements
• Environmental exposure
• Required field of view

Multi-Sensor Possibilities

When paired with an appropriate compatible multi-channel AXIS F91 Main Unit, the F2137-RE can be combined with other compatible sensor units.

This provides flexibility when designing a system requiring several viewing positions while centralizing processing through the main unit.

The number and type of sensors supported depend on the selected main unit.

Box Contents

According to the supplied product information, the package contains:

• AXIS F2137-RE sensor
• Installation guide

The main unit and required connection cable are separate system components unless specifically included in a particular commercial bundle.

Part Numbers

02869-001
AXIS F2137-RE Fisheye Sensor — individual unit

02869-021
AXIS F2137-RE Fisheye Sensor — 8-piece configuration

Always verify the required part number and package quantity before ordering.

Things to Verify Before Ordering

Before selecting the AXIS F2137-RE, confirm:

• Required part number: 02869-001 or 02869-021
• Individual unit or 8-piece configuration
• Compatible AXIS F91 Main Unit
• Number of required sensor channels
• Required connection cable
• Cable type and length
• Installation location
• Required field of view
• Environmental conditions
• Mounting arrangement
• Vehicle or machinery requirements, if applicable
• Required accessories

This is especially important because the F2137-RE cannot function as a standalone network camera.

Who Should Consider the AXIS F2137-RE?

This sensor may be appropriate for organizations, integrators and system designers requiring:

• 5 MP fisheye imaging
• Very wide visual coverage
• A physically small sensor
• Separation between sensor and processing unit
• Rugged environmental protection
• Multi-sensor system flexibility
• Vehicle or machinery integration

For a conventional all-in-one IP camera installation, an integrated Axis network camera may be more appropriate.

Why NEOTECH® UAE

For modular surveillance components, NEOTECH® encourages customers to verify the complete system architecture rather than selecting a sensor only by resolution or lens specification.

For the AXIS F2137-RE, this means checking the sensor part number, F91 Main Unit, cable, mounting arrangement and intended environment together.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

Service Area: United Arab Emirates
Order Cut-Off: 2:00 PM GST (UTC+4)
Handling Time: 1–2 business days
Transit Time: 3–5 business days
Estimated Delivery: 4–7 business days
Standard Shipping: Free

Product availability should be confirmed before ordering.

FAQ - AXIS F2137-RE

Q: What is the AXIS F2137-RE?
A: It is a compact 5 MP fisheye sensor unit designed for use with compatible AXIS F91 Main Units.

Q: What is the part number for the AXIS F2137-RE?
A: The individual sensor is identified as part number 02869-001. Axis also identifies 02869-021 as an 8-piece configuration.

Q: What is the field of view of the AXIS F2137-RE?
A: It provides a 185° horizontal and 125° vertical field of view.

Q: Is the AXIS F2137-RE a standalone IP camera?
A: No. It is a sensor unit and requires a compatible AXIS F91 Main Unit and appropriate connection hardware.

Q: What resolution does the F2137-RE provide?
A: The sensor provides 5 MP resolution.

Q: What lens does the AXIS F2137-RE use?
A: It has a fixed 1.98 mm F2.0 lens with an M12 mount and fixed iris.

Q: Can the AXIS F2137-RE be used in vehicles?
A: Axis identifies vehicle and machinery installation among its intended applications. The complete installation should still be evaluated for environmental, vibration, mounting and cabling requirements.

Q: What environmental ratings does the sensor have?
A: The supplied specifications identify IP66, IP67 and IP6K9K ratings.

Q: What is its operating temperature?
A: The specified operating range is -40°C to 60°C (-40°F to 140°F).

Q: Which main units are compatible?
A: The supplied information identifies AXIS F9104-B Mk II, F9111-R Mk II, F9114-B Mk II and F9114-R Mk II Main Units.
