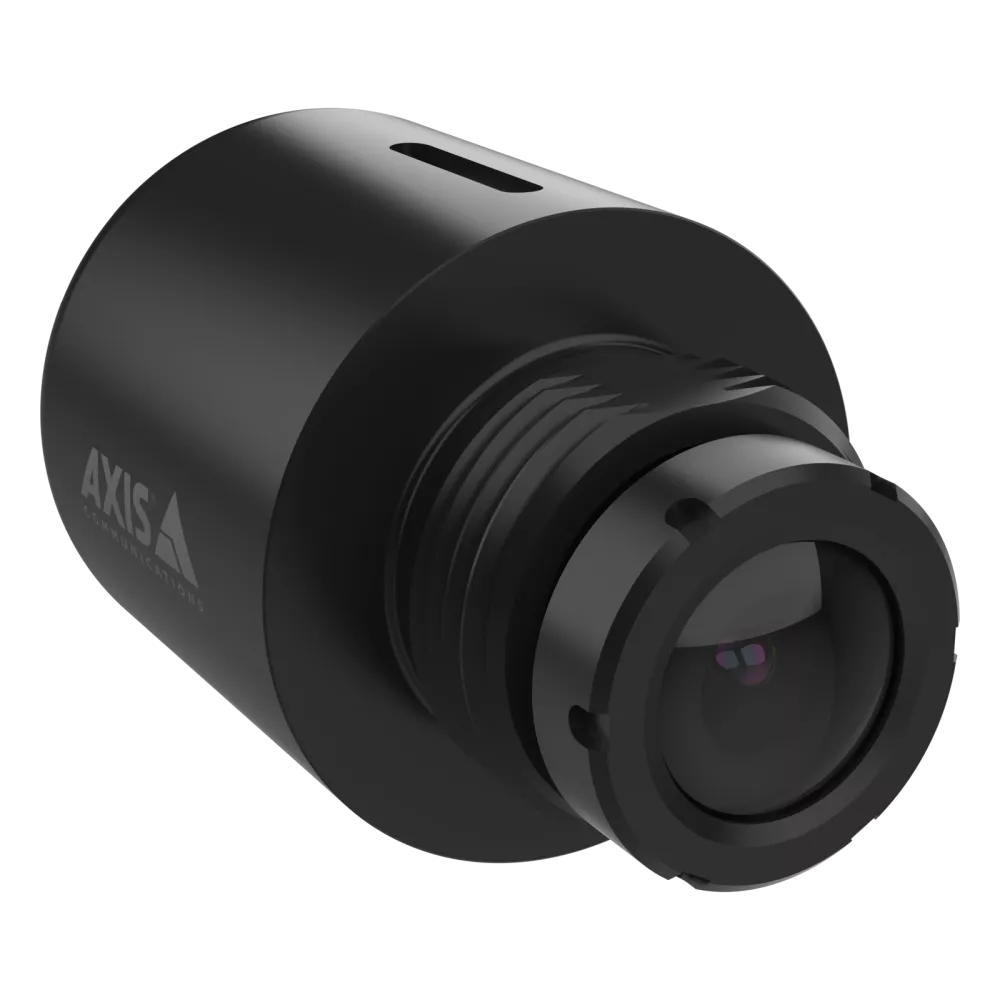

Discreet 1080p modular camera sensor with 3.1 mm F2.0 lens, 108° horizontal field of view and rugged SMA connectivity



The AXIS F2105-RE Standard Sensor 02640-001 is a compact sensor unit for the Axis F Modular Camera Series, designed for discreet surveillance installations where the imaging sensor can be positioned separately from the main processing unit.

It provides up to 1920 × 1080 resolution, a 3.1 mm F2.0 fixed lens, and a wide 108° horizontal field of view at 1080p.

The rugged sensor is designed for indoor and outdoor applications and uses an SMA connector with compatible Axis modular-camera cabling. Its compact cylindrical construction makes it suitable for installations where space is limited or where only a small camera sensor should remain visible.

The F2105-RE must be connected to a compatible AXIS F91 Main Unit using appropriate Axis cabling; it is not intended to operate independently.

Exact Model & Part Number

Brand: Axis Communications

Model: AXIS F2105-RE Standard Sensor

Part Number: 02640-001

Bulk Pack Part Number: 02640-021 – 8 sensors

Product Type: Modular camera sensor unit

Maximum Resolution: 1920 × 1080

Lens: 3.1 mm, F2.0

Lens Mount: M12

Horizontal Field of View: 108° at 1080p

Weight: 50 g

Axis currently lists both ordering configurations for multiple regions, including EU.

Key Features

• Up to 1920 × 1080 resolution
• Up to 60 fps at 1080p with supported main-unit configuration
• Up to 180 fps at 720p with supported main-unit configuration
• 3.1 mm F2.0 fixed lens
• 108° horizontal field of view at 1080p
• 58° vertical field of view at 1080p
• Compact cylindrical sensor design
• SMA connection
• Aluminum casing
• IP66 rated
• IP67 rated
• IP6K9K rated
• NEMA 4X rated
• Designed for demanding vibration and environmental conditions
• Operating temperature from -40°C to 60°C
• Compatible with AXIS F91-series main units
• Current Axis 5-year warranty

Frame-rate capability depends on the connected main unit and selected capture mode.

Lens and Field of View

The standard F2105-RE configuration uses:

Focal Length: 3.1 mm

Maximum Aperture: F2.0

Lens Mount: M12

Iris: Fixed

At 1080p

Horizontal Field of View: 108°

Vertical Field of View: 58°

At 720p

Horizontal Field of View: 70°

Vertical Field of View: 39°

The wide 108° horizontal field of view at 1080p makes this sensor particularly relevant where broad scene coverage is required from a compact mounting position.

Video Resolution and Frame Rate

The F2105-RE supports different capture modes depending on the AXIS F91 Main Unit used.

With compatible configurations, Axis specifies:

1080p: Up to 60/50 fps

720p: Up to 180/175 fps

For example, the current Axis capture-mode table specifies up to 180/175 fps at 1280 × 720 when used with compatible single-channel main-unit configurations. Four-channel main-unit configurations have different maximum frame rates.

The complete sensor + main unit combination should therefore be checked when a particular frame rate is required.

Compact Modular Design

The F2105-RE follows Axis's divided network-camera concept.

Instead of installing the complete camera electronics at the viewing position, the compact sensor can be installed at the required observation point while the compatible main unit is located separately.

This architecture can be useful where:

• Installation space is restricted
• A discreet camera appearance is required
• The processing unit needs to be protected or positioned elsewhere
• Multiple sensor units need to connect to a multi-channel main unit
• Cameras are being integrated into vehicles, equipment or other structures

The sensor itself measures only 46 mm long with a diameter of approximately 29.8 mm.

Rugged Construction

AXIS F2105-RE is designed for installations where environmental exposure, shock or vibration may be considerations.

Axis specifies:

Housing: Aluminum

IP Rating: IP66 / IP67 / IP6K9K

NEMA Rating: NEMA 4X

Operating Temperature: -40°C to 60°C

Maximum Temperature according to NEMA TS 2: 74°C

Operating Humidity: 10–100% RH, condensing

The environmental protection rating applies when the sensor is used with cabling having the corresponding IP rating.

Low-Light Imaging

The sensor uses a:

1/2.8-inch progressive scan RGB CMOS image sensor

Axis specifies minimum color illumination of:

0.1 lux

It also incorporates a fixed IR-cut filter.

Actual image performance depends on the complete camera configuration, lighting conditions, exposure settings and connected main unit.

Required Hardware

The AXIS F2105-RE 02640-001 is not a standalone camera.

Axis identifies the following required hardware categories:

• AXIS F91 Main Unit
• AXIS TU6004-E Cable
• AXIS TU6005 Plenum Cable

The appropriate cable and main-unit configuration should be selected according to the installation.

Compatible Main Units

Current compatible Axis main units include:

• AXIS F9104-B Mk II Main Unit
• AXIS F9111-R Mk II Main Unit
• AXIS F9114-B Mk II Main Unit
• AXIS F9114-R Mk II Main Unit

Compatibility should always be checked against the current Axis documentation before ordering.

This gives us an excellent internal-link opportunity because we already created the AXIS F9114-R Mk II Main Unit page.

Compatible Cables

Relevant Axis modular-camera cables include:

• AXIS TU6004-E Cable
• AXIS TU6005 Plenum Cable
• AXIS TU6007-E Cable

The AXIS TU6004-E, which we already listed separately, is an indoor/outdoor cable available in multiple lengths for compatible Axis F-series installations.

The appropriate cable type and length should be selected according to the installation environment and main-unit position.

Compatible Lenses

Axis currently identifies several lens options for the F2105-RE, including:

Lens M12 3.1 mm F2.0
Standard fixed lens included with the product.

Lens M12 2.8 mm F2.2
Compatible fixed-lens option.

Axis's current accessory listing also identifies an optional M12 16 mm F1.8 IR lens for a narrower field of view.

Lens compatibility and resulting field of view should be verified before changing the supplied lens.

Compatible Mounting Accessories

Current mounting/accessory options include:

• AXIS F8203 Fixed Mount Bracket
• AXIS F8212 Trim Ring
• AXIS TF1201-RE Recessed Mount
• AXIS TF1202-RE Recessed Mount
• AXIS TF1204-RE Recessed Mount
• AXIS TF1802-RE Lens Protector
• AXIS TF1901-RE Swivel Mount
• AXIS TF1902-RE Mounting Bracket
• AXIS TF2001-E Dual Mount Bracket
• AXIS TW4100 Front Windshield Mount
• AXIS TW4101 Rear Windshield Mount

The exact accessory should be selected according to installation orientation and environmental requirements.

Additional Compatible Accessories

Axis currently lists accessories including:

AXIS TU6002 Right-angle SMA Adaptor
Provides a 90° connection between the sensor unit and cable.

AXIS TF1801-R Lens Hood
Designed to help avoid reflections on the sensor lens.

AXIS TF1804 Bullet Housing
Allows supported F-series sensors to be installed in a bullet-style camera assembly.

These accessories may be useful where the sensor needs additional mechanical protection or a particular installation orientation.

Dimensions and Weight

Length: 46 mm / 1.8 in

Diameter: 29.8 mm / 1.2 in

Weight: 50 g / 0.1 lb

Color: Black, NCS S 9000-N

Casing: Aluminum

The compact dimensions are one of the principal advantages of the divided modular-camera architecture.

Power

Axis specifies:

Typical Power: 1 W

Maximum Power: 1.7 W

Power is provided as part of the compatible modular camera system rather than through a standalone conventional camera power connection.

Applications

The AXIS F2105-RE may be considered for applications such as:

• Vehicle surveillance
• Buses and public transportation
• Emergency vehicles
• Machinery monitoring
• Industrial equipment
• Discreet indoor surveillance
• Outdoor surveillance
• Restricted-space camera installations
• Equipment-integrated imaging
• Transportation environments
• Modular multi-camera systems

Suitability depends on the main unit, mounting method, cabling, required field of view and environmental conditions.

Purpose of Use

The F2105-RE is intended to provide a small, remotely positioned imaging sensor within an Axis F Modular Camera installation.

Separating the sensor from the main processing unit allows the visible camera component to remain compact while the main unit can be installed elsewhere.

This makes it fundamentally different from a conventional self-contained IP camera.

02640-001 vs 02640-021

This distinction is important for part-number searches:

02640-001
AXIS F2105-RE Standard Sensor — individual unit.

02640-021
AXIS F2105-RE Standard Sensor — 8-piece bulk pack.

Axis currently lists both configurations.

Customers should verify the exact part number and required quantity before ordering.

Things to Verify Before Ordering

Before ordering AXIS F2105-RE 02640-001, verify:

• Exact part number required
• Individual 02640-001 or 8-pack 02640-021
• Compatible AXIS F91 Main Unit
• Number of sensor channels required
• Required resolution
• Required frame rate
• 108° field of view suitability
• Cable type
• Required cable length
• Indoor or outdoor installation
• Mounting accessory
• Environmental exposure
• Available installation space
• Lens requirement
• Complete system compatibility

For modular camera systems, checking the sensor + cable + main unit + mount together before ordering is preferable to selecting each component independently.

Why NEOTECH® UAE

NEOTECH® focuses on helping customers identify the correct product and compatible components before purchase.

For an Axis modular camera system, the sensor model alone does not determine the complete solution. Main-unit compatibility, cable type, cable length, mounting arrangement, lens and required capture mode should also be considered.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - AXIS F2105-RE 02640-001

Q: What is AXIS F2105-RE 02640-001?
A: It is a compact 1080p sensor unit for the Axis F Modular Camera Series. It requires a compatible main unit and cable and is not a standalone network camera.

Q: What lens does the AXIS F2105-RE use?
A: The standard configuration uses a 3.1 mm F2.0 fixed M12 lens.

Q: What is the field of view?
A: At 1080p, Axis specifies 108° horizontal and 58° vertical. At 720p, the specified field of view is 70° horizontal and 39° vertical.

Q: What is the maximum resolution?
A: The maximum resolution is 1920 × 1080.

Q: Can the F2105-RE operate by itself?
A: No. A compatible AXIS F91 Main Unit and appropriate modular-camera cable are required.

Q: Is AXIS F9114-R Mk II compatible with the F2105-RE?
A: Yes. Axis currently lists the F9114-R Mk II among compatible main units.

Q: Is AXIS TU6004-E compatible?
A: Yes. Axis lists the TU6004-E as a recommended cable and identifies it among the required hardware options.

Q: Is the sensor suitable for outdoor installation?
A: Yes. Axis classifies it as outdoor-ready and specifies IP66, IP67 and IP6K9K protection. The corresponding environmental protection depends on using compatible cabling with the required rating.

Q: What is the operating temperature?
A: Axis specifies -40°C to 60°C (-40°F to 140°F) for normal operating conditions.

Q: What is part number 02640-021?
A: It is the 8-piece bulk-pack version of the AXIS F2105-RE Standard Sensor.

Q: What warranty does Axis currently list?
A: Axis currently lists a 5-year warranty for the product.

Related Products

• AXIS F9114-R Mk II Main Unit
• AXIS F9104-B Mk II Main Unit
• AXIS F9111-R Mk II Main Unit
• AXIS F9114-B Mk II Main Unit
• AXIS TU6004-E Cable
• AXIS TU6005 Plenum Cable
• AXIS TU6007-E Cable
• AXIS F2135-RE Fisheye Sensor
• AXIS F2137-RE Fisheye Sensor

For the NEOTECH® website, internally link only products for which we have a genuine relevant page.
