43 mm ISO7811 bi-directional swipe reader with USB, RS232 & TTL. Fast, reliable tracks 1/2/3. Ideal for kiosks & POS. Shop NEOTECH UAE!
✅ Overview

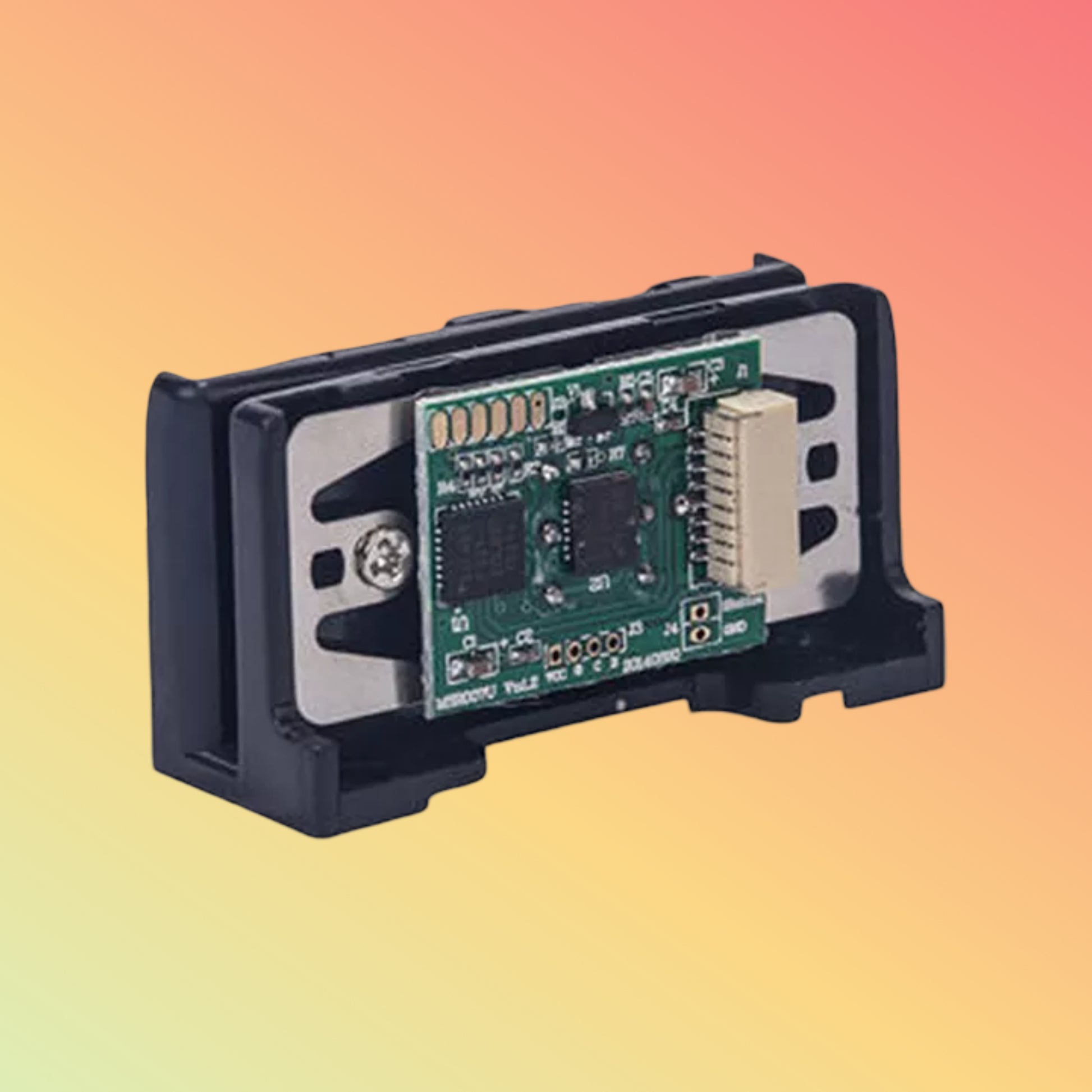

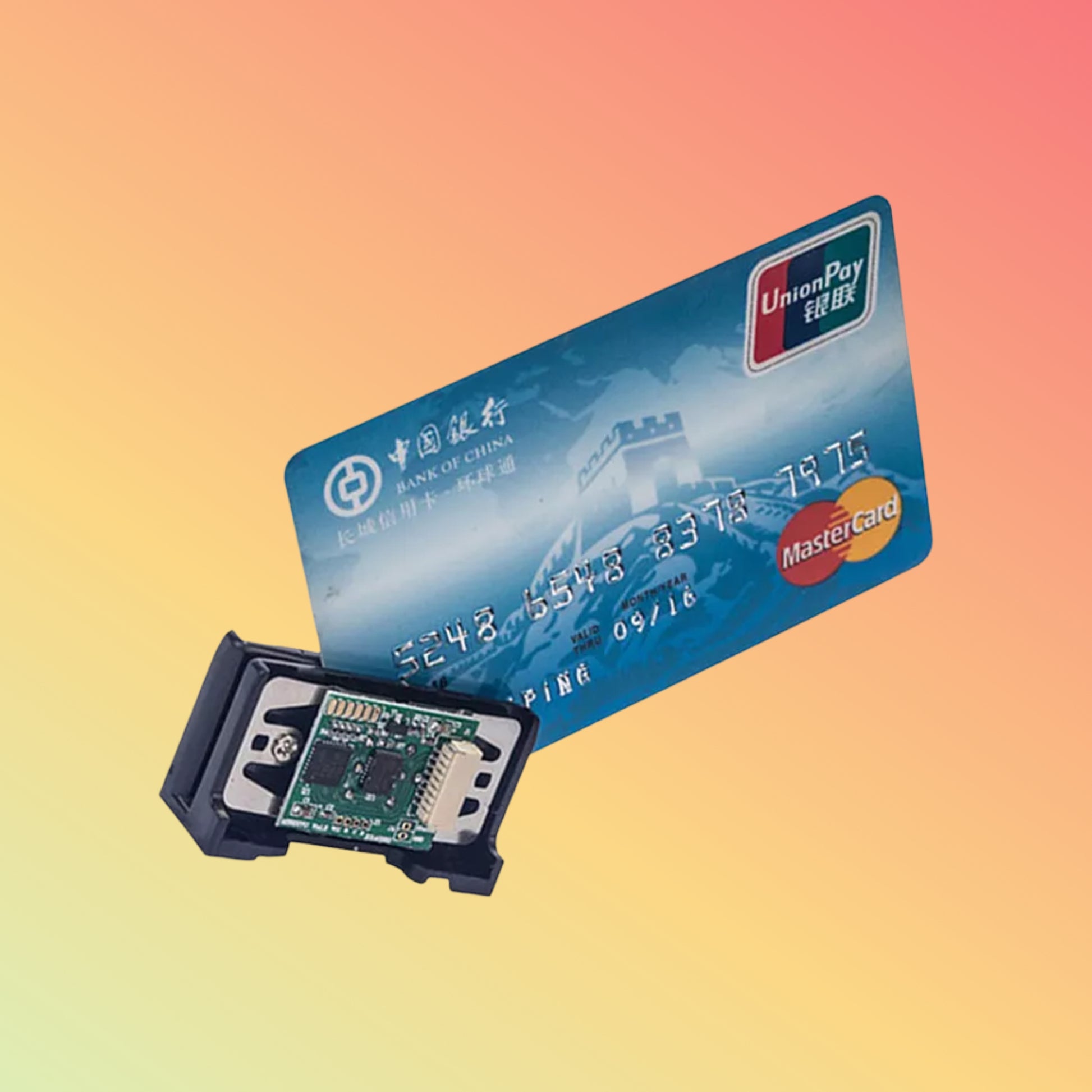

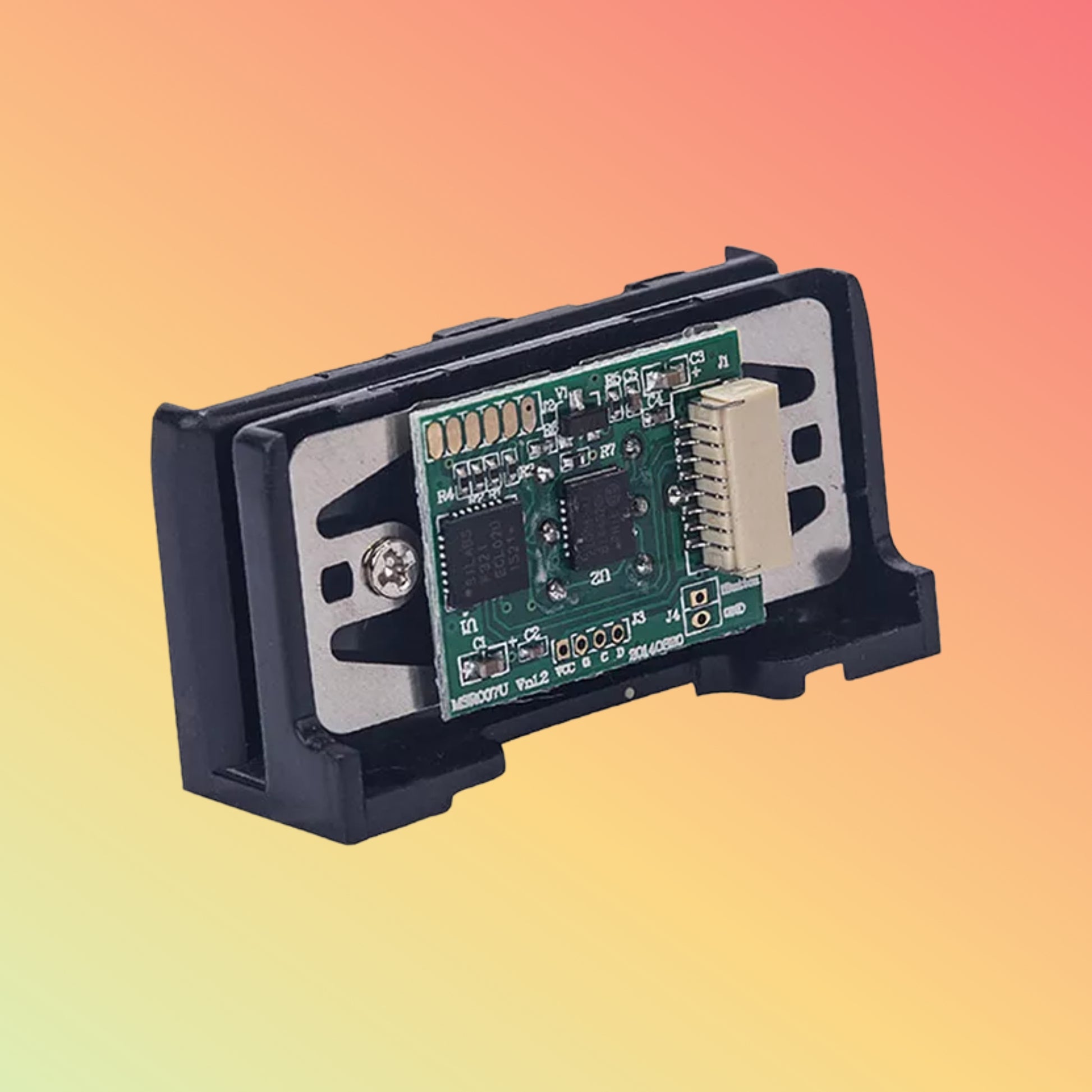

The NEOTECH MSR43M-X is a versatile 43 mm magnetic-stripe reader that captures ISO 7811 Tracks 1/2/3 in either swipe direction. Offering USB-HID, RS232 serial, and TTL outputs, it integrates into POS systems, kiosks, and embedded controllers. Robust, plug-and-play performance streamlines user authentication and transaction workflows.
✅ Product Description
Built to last in high-traffic environments, the MSR43M-X employs a precision read head rated for over 500 000 swipes. It supports forward and reverse swipes at speeds of 5–60 cm/s, ensuring accurate data capture every time. Choose USB-HID for driver-free PC integration, RS232 for legacy terminals, or TTL for microcontroller projects. Its low-profile ABS housing fits tight OEM spaces, while LED feedback confirms successful reads. A perfect solution for retail checkouts, membership kiosks, and secure access points.
✅ Key Features
-
43 mm Bi-Directional Swipe – read cards either way
-
Triple-Track Support – ISO 7811 Tracks 1/2/3
-
Multi-Interface – USB 2.0 HID, RS232, UART/TTL (3.3 V)
-
Wide Swipe Speed – 5–60 cm/s for smooth operation
-
High Durability – ≥500 000 swipe lifecycle
-
LED Indicator – instant pass/fail feedback
-
Compact Design – low-profile ABS shell for OEM mounts
-
Cross-Platform – works on Windows, Linux, macOS, and embedded systems
✅ Specifications
-
Card Standard: ISO 7811 Tracks 1/2/3
-
Interface: USB 2.0 HID; RS232 (TTL level); UART/TTL 3.3 V
-
Swipe Speed: 5–60 cm/s
-
Lifecycle: ≥500 000 swipes
-
Voltage: 5 V DC (USB powered); 3.3–5 V for TTL
-
Dimensions: 65 × 23 × 17 mm (L × W × H)
-
Weight: 55 g
✅ Supported Applications / Industries
-
Applications: POS terminals, ticketing kiosks, loyalty check-in, secure access controllers
-
Industries: Retail, Hospitality, Transportation, Healthcare, Finance
✅ Benefits & Compatibility
-
Plug-and-Play: USB-HID mode requires no drivers
-
Legacy Support: RS232 keeps older systems alive
-
Embedded-Ready: TTL output for microcontroller projects
-
Reliable Reads: Bi-directional swipe ensures user convenience
-
Space-Efficient: Compact form factor for OEM integration
✅ Purpose of Use
Ideal for any system needing quick, reliable capture of magnetic-stripe data—from checkout lanes to membership and security applications.
✅ How to Use
-
Connect via USB, RS232 cable, or TTL header
-
Power the reader (USB or 3.3–5 V TTL)
-
Swipe card through the 43 mm slot forward or reverse
-
Watch LED confirm read; host device receives track data
✅ Packaging / Weight / Dimension
-
Includes: MSR43M-X module, USB 2.0 cable, RS232 cable, mounting bracket, quick-start guide
-
Net Weight: 55 g
-
Package Size: 120 × 80 × 40 mm
✅ Warranty and FAQs
✅ Performance, Quality, Durability & Reliability
Engineered for over half a million swipes, MSR43M-X’s precision head and rugged housing deliver consistent performance in demanding environments.
✅ Best Price Guarantee
Found a lower UAE price? Send proof, and we’ll match it—NEOTECH ensures the best value.
✅ Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. MSR43M-X readers ready to ship!
✅ Request for Customer Reviews and Testimonials
Using MSR43M-X? Share a brief review and help others see how it optimized your card-reading needs.
✅ After Sales Support
Our support team is on call via chat, email, or phone—helping with integration, firmware, or troubleshooting.
✅ Get in Touch
Bulk orders or custom firmware? Contact us and we’ll assist you promptly.
✅ Stock Availability
High demand—confirm availability before placing large or urgent orders to secure your modules.
✅ Disclaimer
All specifications and images are for reference and may change without notice. Verify final details with our sales team before purchase
